Saab 9000 1985-1985 Bosch 70A

Group 3a Electrical, general, section 130

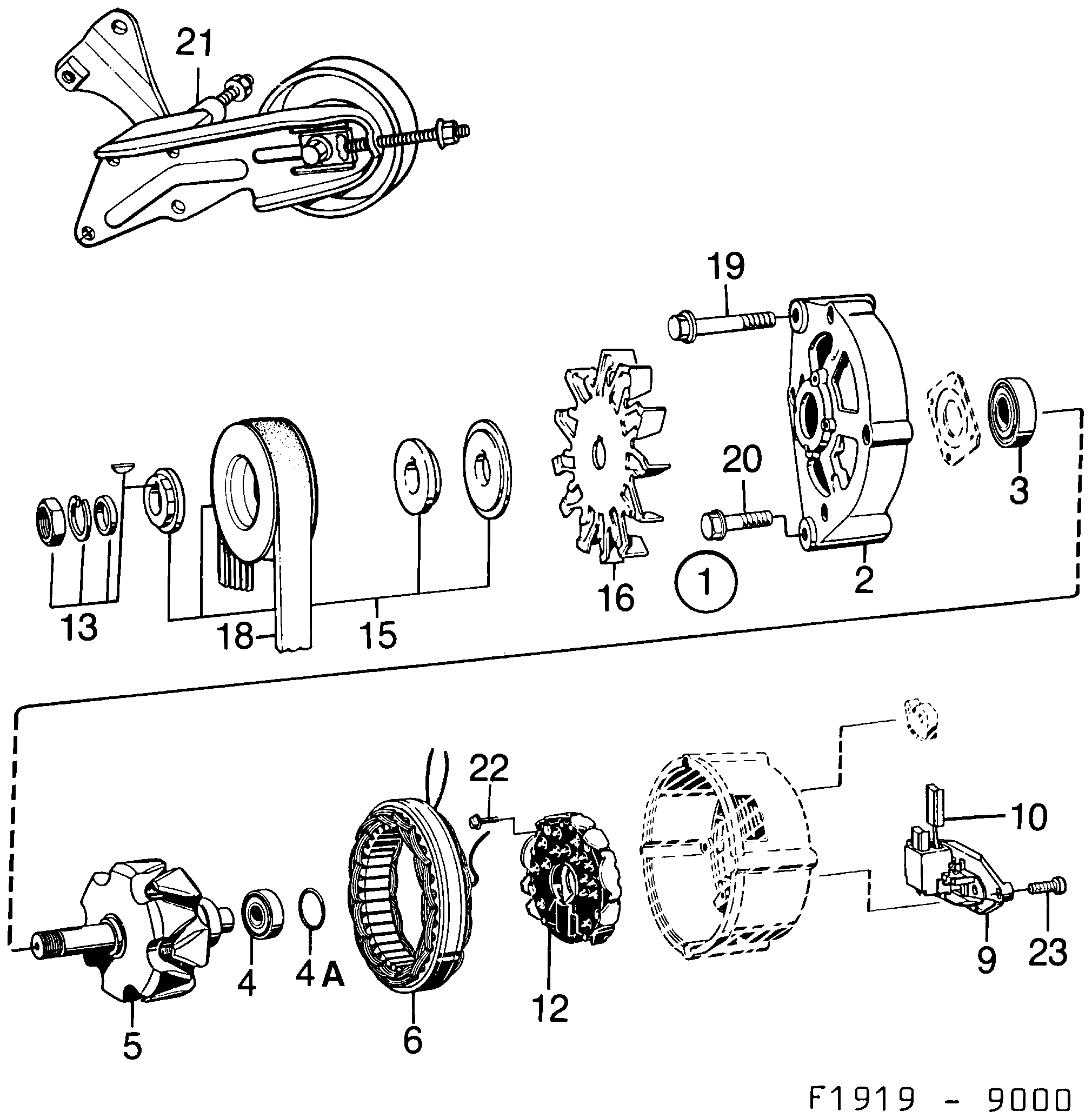

Saab 9000 Bosch 70A diagram

Pos	Article	Part No.
1	Generator	8597924
2	Bearing	8591075
3	Ball bearing	8549545 (replaces 8590911)
4	Ball bearing	8572034
4A	O-ring	8565590
5	Rotor	8571887
6	Stator	8571861
9	Voltage regulator	90349907 (replaces 8590549)
10	Brush set	9515180
12	Rectifier	8598096
13	Part kit	8590994
15	Pulley	9503715
16	Fan disc	8587248
18	Belt	7579881
18	Belt	93185056
19	Screw	7974108
19	Screw	8098378
20	Screw	7974777
22	Screw	9513599
23	Screw	8571986
