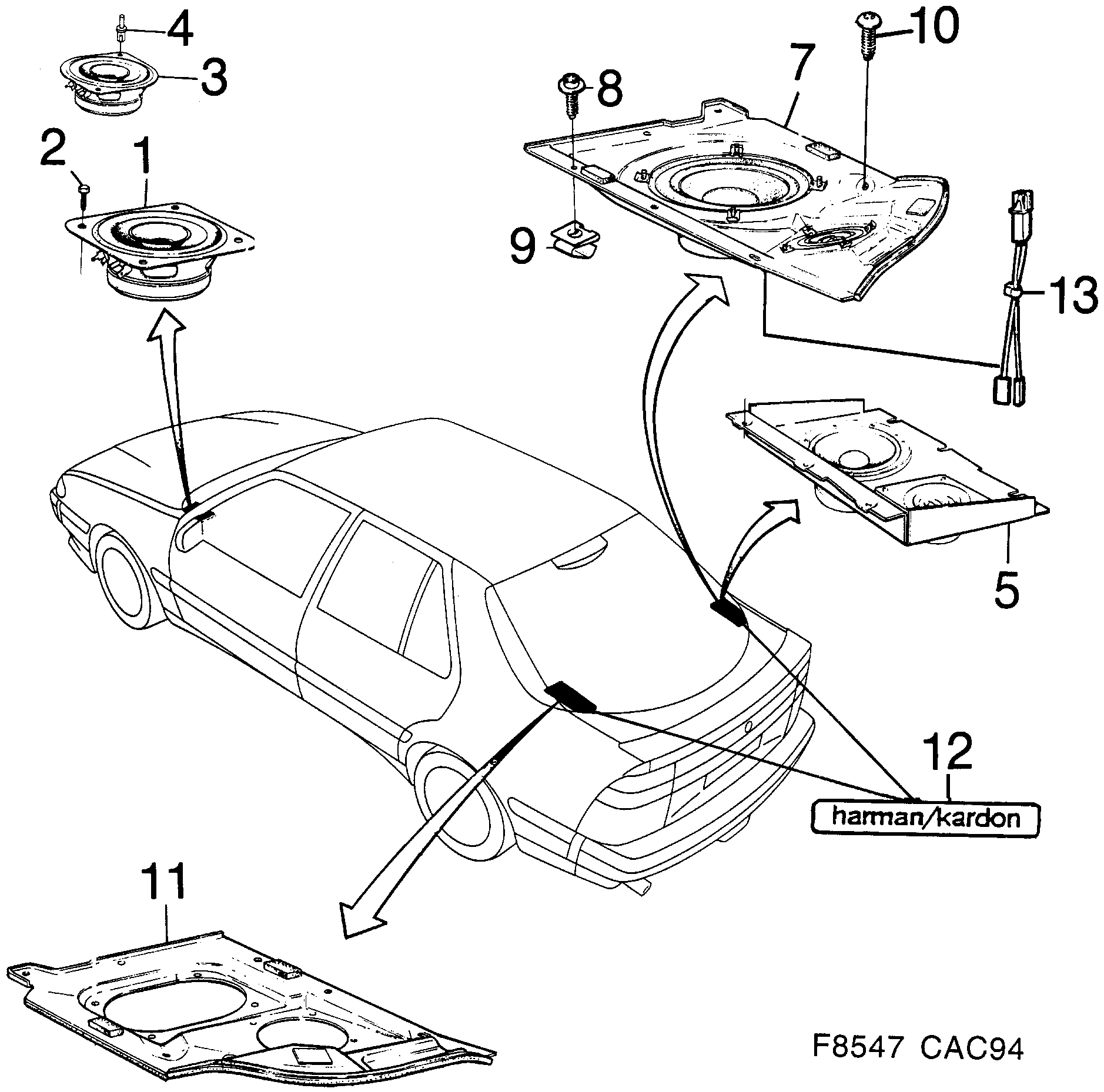

Group 3a Electrical, general, section 1290
| Pos | Article | Part No. |
|---|---|---|
| 1 | Loudspeaker | 4439121 |
| 1 | Loudspeaker | 4085239 |
| 1 | Loudspeaker | 4519229 |
| 2 | Screw | 7972128 |
| 3 | Loudspeaker | 4439113 |
| 3 | Loudspeaker | 4085148 |
| 3 | Loudspeaker | 4519237 |
| 4 | Rivet | 7399256 |
| 5 | Loudspeaker | 4084695 |
| 5 | Loudspeaker | 4084687 |
| 6 | Nut | 7977671 |
| 7 | Loudspeaker | 4619219 (replaces 9528167) |
| 7 | Loudspeaker | 4619227 (replaces 9528159) |
| 7 | Loudspeaker | 4619219 |
| 7 | Loudspeaker | 4619227 |
| 7 | Loudspeaker | 4083275 |
| 7 | Loudspeaker | 4083283 |
| 7 | Loudspeaker | 4619219 (replaces 4518957) |
| 7 | Loudspeaker | 4619227 (replaces 4518965) |
| 7 | Loudspeaker | 4518882 |
| 7 | Loudspeaker | 4518890 |
| 7 | Loudspeaker | 4714655 (replaces 4109039) |
| 7 | Loudspeaker | 4714655 |
| 7 | Loudspeaker | 4714648 (replaces 4109047) |
| 7 | Loudspeaker | 4714648 |
| 7 | Loudspeaker | 4085213 |
| 7 | Loudspeaker | 4085221 |
| 7 | Loudspeaker | 4518866 |
| 7 | Loudspeaker | 4518874 |
| 8 | Screw | 92151992 (replaces 7972938) |
| 9 | Nut | 9692849 |
| 9 | Nut | 11900451 (replaces 7977929) |
| 10 | Screw | 7922420 |
| 11 | Bracket | 9571621 |
| 11 | Bracket | 9571159 |
| 12 | Sign | 4617270 |
| 13 | Cable harness | 4739454 |
