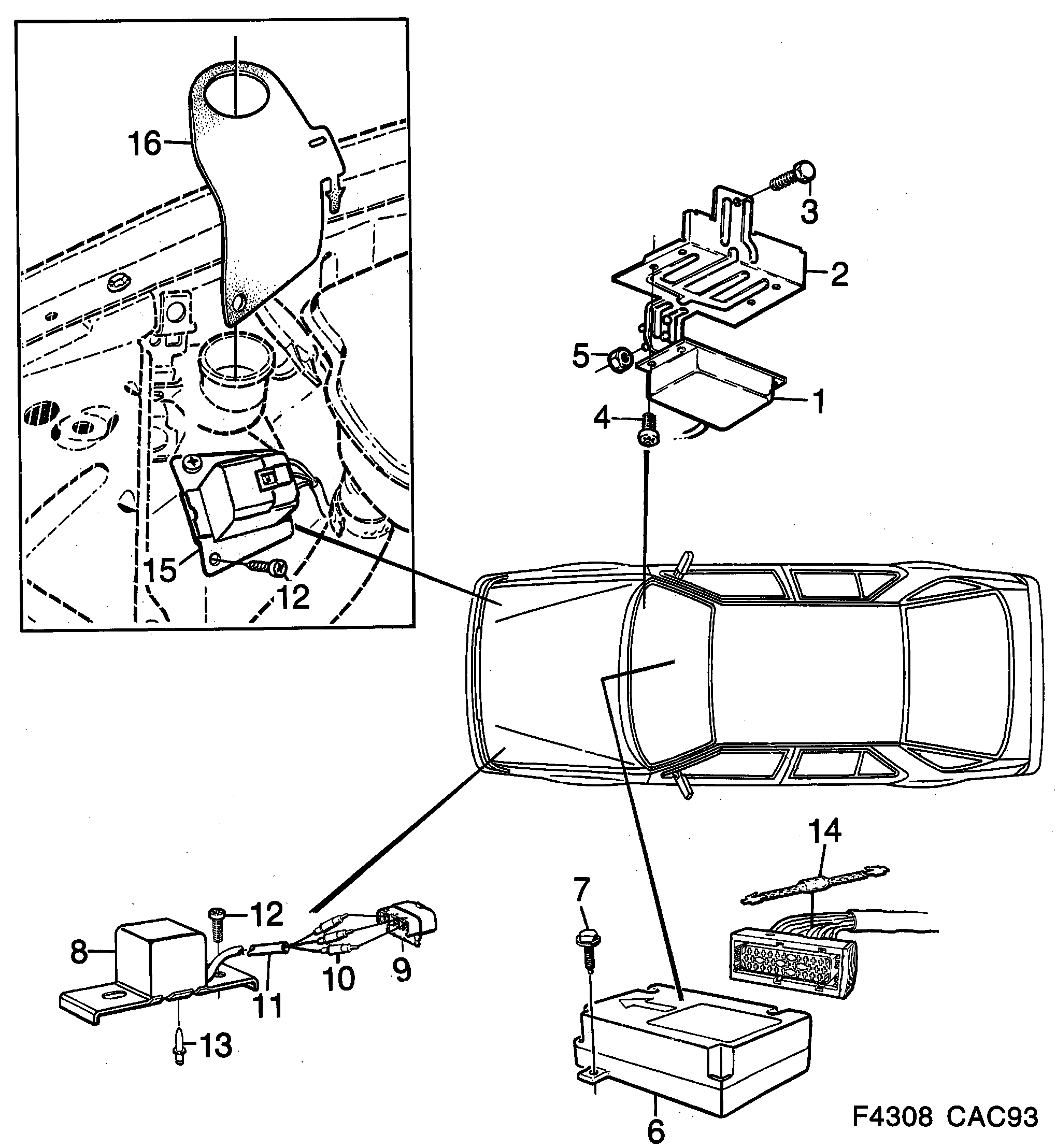

Group 3a Electrical, general, section 1280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Electronic unit | 9526906 |
| 1 | Electronic unit | 5042726 |
| Cable harness | 4945754 | |
| 2 | Bracket | 9571589 |
| 3 | Screw | 55562121 (replaces 7967938) |
| 4 | Screw | 7399520 (replaces 7399587) |
| 5 | Nut | 92150143 (replaces 7971922) |
| 6 | Electronic unit | 5044060 (replaces 4176368) |
| 7 | Screw | 11900355 (replaces 7978117) |
| 7 | Nut | 11900451 (replaces 7977929) |
| 8 | Sensor | 9696626 |
| 9 | Connector housing | 9503327 |
| 10 | Connection | 7874506 |
| 11 | Cable harness | 4350476 |
| 12 | Screw | 7399520 |
| 13 | Rivet nut | 9130829 (replaces 7399454) |
| 14 | Resistor | 4354031 |
| 15 | Sensor | 4032132 |
| 15 | Sensor | 4079935 |
| 16 | Cap | 30544790 (replaces 4314001) |
