Saab 9000 1985-1989 Electrical system ABS

Group 3a Electrical, general, section 1270

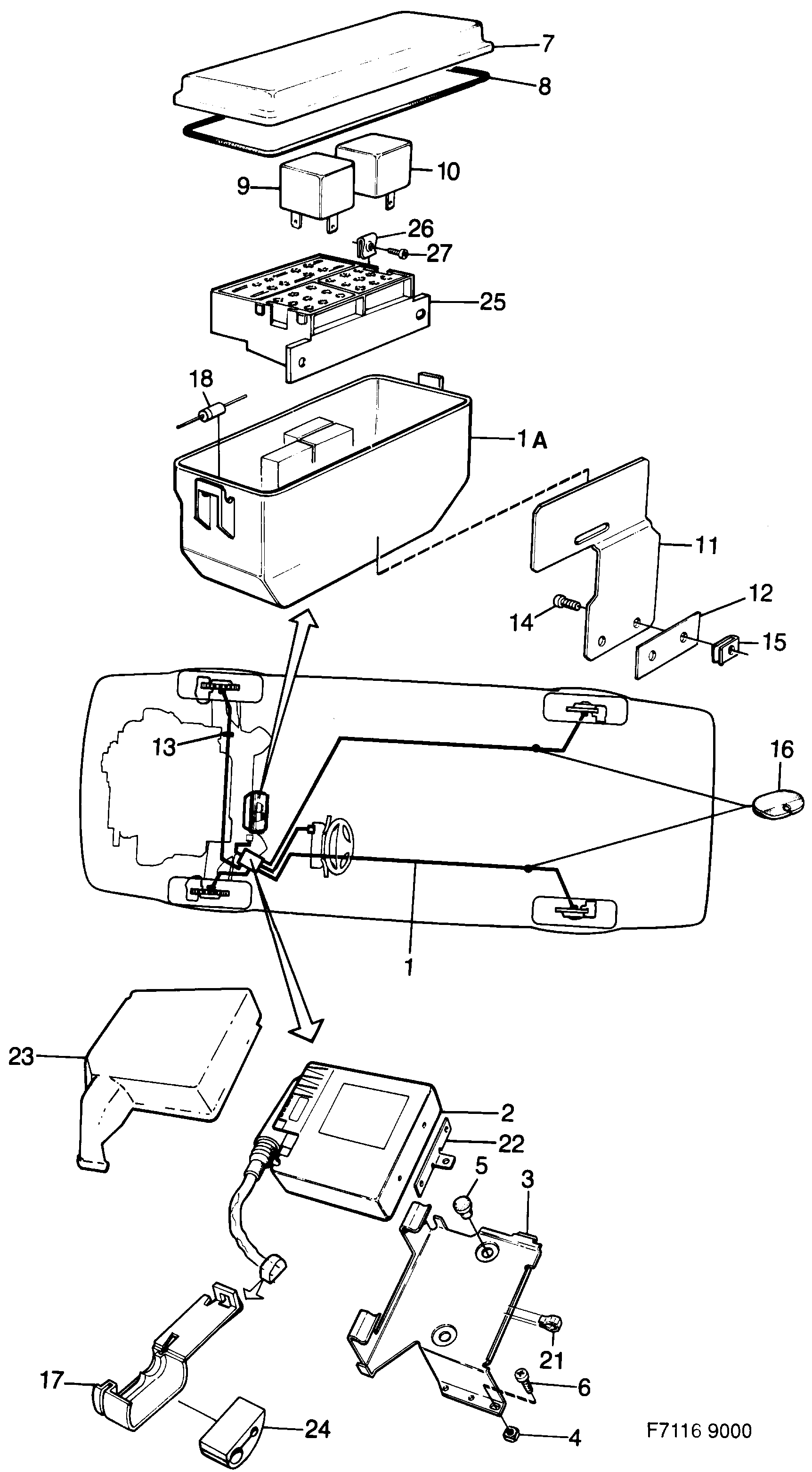

Saab 9000 Electrical system ABS diagram

Pos	Article	Part No.
1	Cable harness	9520586
1	Cable harness	9565383
1	Cable harness	4060067
1A	Box	4111118 (replaces 9519695)
2	Electronic unit	8826984 (replaces 8965659)
2	Electronic unit	8826984 (replaces 8970386)
2	Electronic unit	4001756
3	Bracket	8966624
3	Bracket	8970287
4	Spring nut	7933682
5	Plug	9268186
6	Screw	7922347 (replaces 7946734)
6	Screw	11900378 (replaces 7978372)
7	Cover	9519919
8	Seal	9519927
9	Relay	8533176
10	Relay	9522822
11	Bracket	9519703
12	Spacer	9519950
13	Clamp	9228149 (replaces 7399033)
14	Screw	8441503
15	Clip nut	7967995
16	Cover	9279878
17	Bracket	9625633
18	Diode	4424172
21	Clamp	8970402
22	Bracket	8971970
23	Cover	4000485
24	Seal	9520867
24	Seal	4062063
25	Connector housing	9125543
26	Clip nut	7968001
27	Screw	92153219 (replaces 7970601)
