Saab 9000 1990-1993 Connectors sensor

Group 3a Electrical, general, section 1250

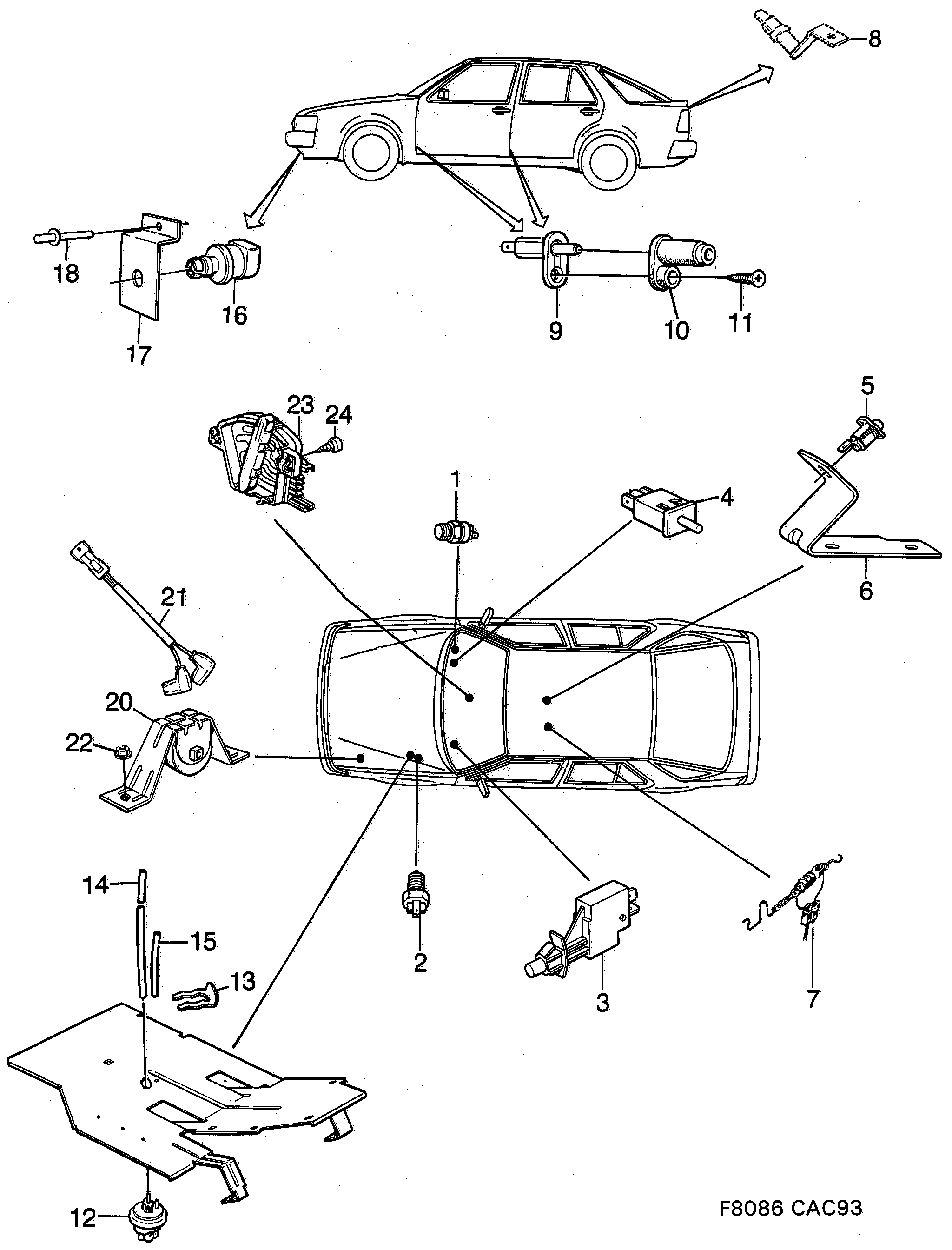

Saab 9000 Connectors sensor diagram

Pos	Article	Part No.
2	Back-up light contact	9529363
3	Stop light switch	9505462
4	Switch	9508367
5	Door switch	8522492
6	Bracket	8954596
7	Switch	9505652
9	Switch	9514860
9	Switch	4086492
9	Switch	9514886
10	Protection	30526035 (replaces 9512229)
10	Protection	9514878
11	Screw	7922818
11	Screw	92153219 (replaces 7922354)
12	Pressure monitor	8594632
13	Clip	8565855
16	Sensor	9123456
17	Bracket	9514183
17	Bracket	9569781
18	Pop rivet	8235178
20	Resistor	4320545
21	Cable harness	4179255
22	Plastic nut	92152035 (replaces 4087128)
23	Switch	4062980
23	Switch	4062972
	Starter inhibitor kit	8548075
