Saab 9000 1990-1993 Speed control system

Group 3a Electrical, general, section 1220

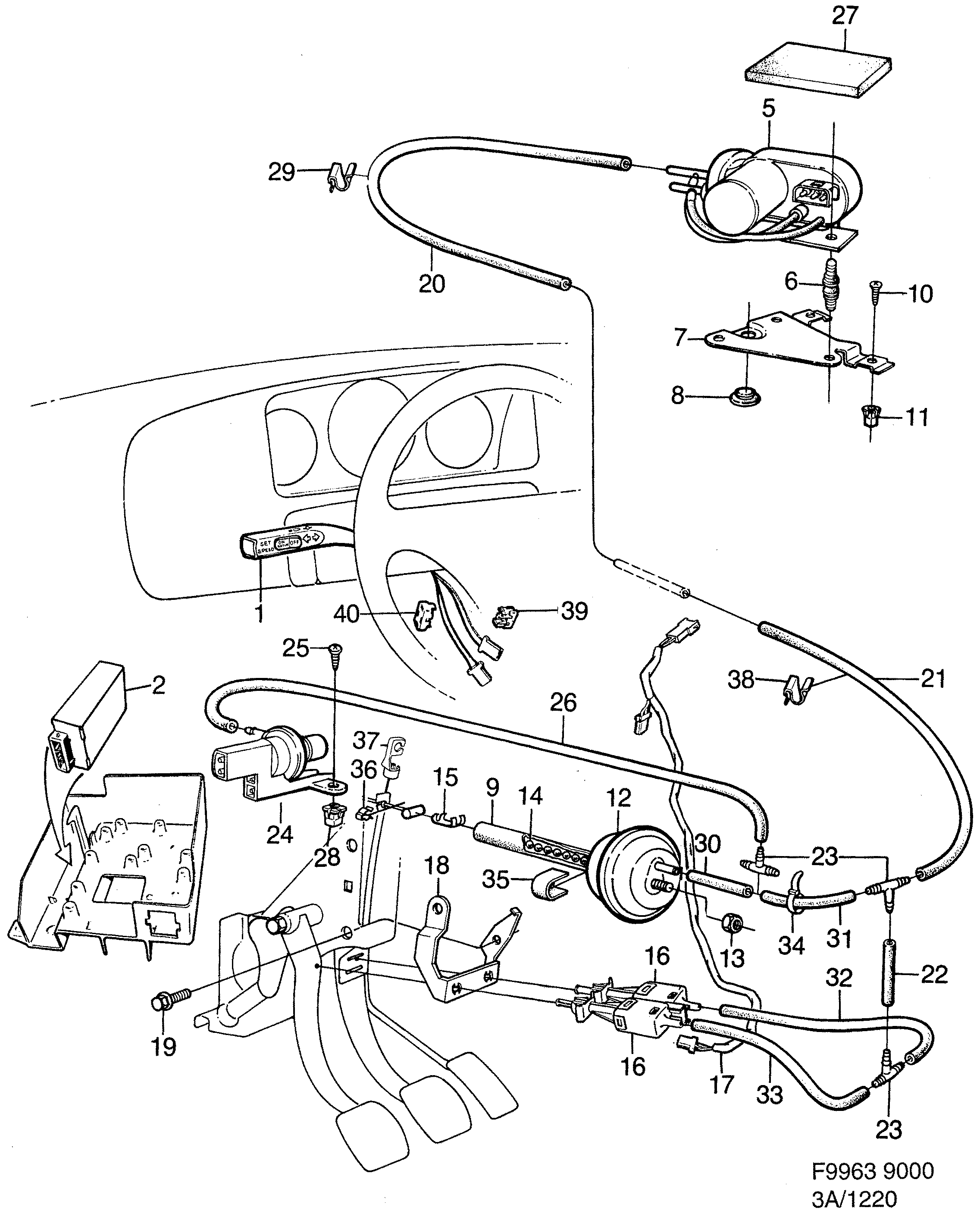

Saab 9000 Speed control system diagram

Pos	Article	Part No.
2	Electronic unit	9526757
2	Electronic unit	4108650
5	Vacuum pump	8587024
6	Suspension	9555194
7	Bracket	9517798
8	Plug	8206096
9	Hose	9124223
10	Screw	7922891
11	Nut	7975261
12	Vacuum regulator	9512302
13	Nut	11900440 (replaces 8074288)
13	Nut	11900440 (replaces 9166406)
14	Chain	4061917
15	Clamp	8587099
15	Clamp	4433827
16	Switch	4350443 (replaces 4108676)
16	Switch	4350443
17	Cable harness	9519612
17	Cable harness	9519604
18	Bracket	9529637
18	Bracket	4067468
19	Screw	7528953 (replaces 7971757)
20	Hose	4108734
21	Hose	9566423
21	Hose	4108726
21	Hose	4108718
22	Hose	9566423 (replaces 8590689)
23	Tube	8509002
24	Vacuum switch	9124884
25	Screw	7922826
26	Hose	9516329
27	Spacer	9656901
29	Clamp	7121239
30	Hose	8587354
30	Hose	9566381
31	Hose	9519646
31	Hose	9566464
32	Hose	8587347
32	Hose	9566399
32	Hose	9519638
32	Hose	9566472
32	Hose	9566449
33	Hose	9566407
34	Tie strap	7398944
34	Tie strap	7398977
35	Chain coupling	4063384
37	Protection	4061362
38	Clamp	7108491
39	Manifold	9560012 (replaces 9559998)
40	Manifold	9560012 (replaces 9560004)
