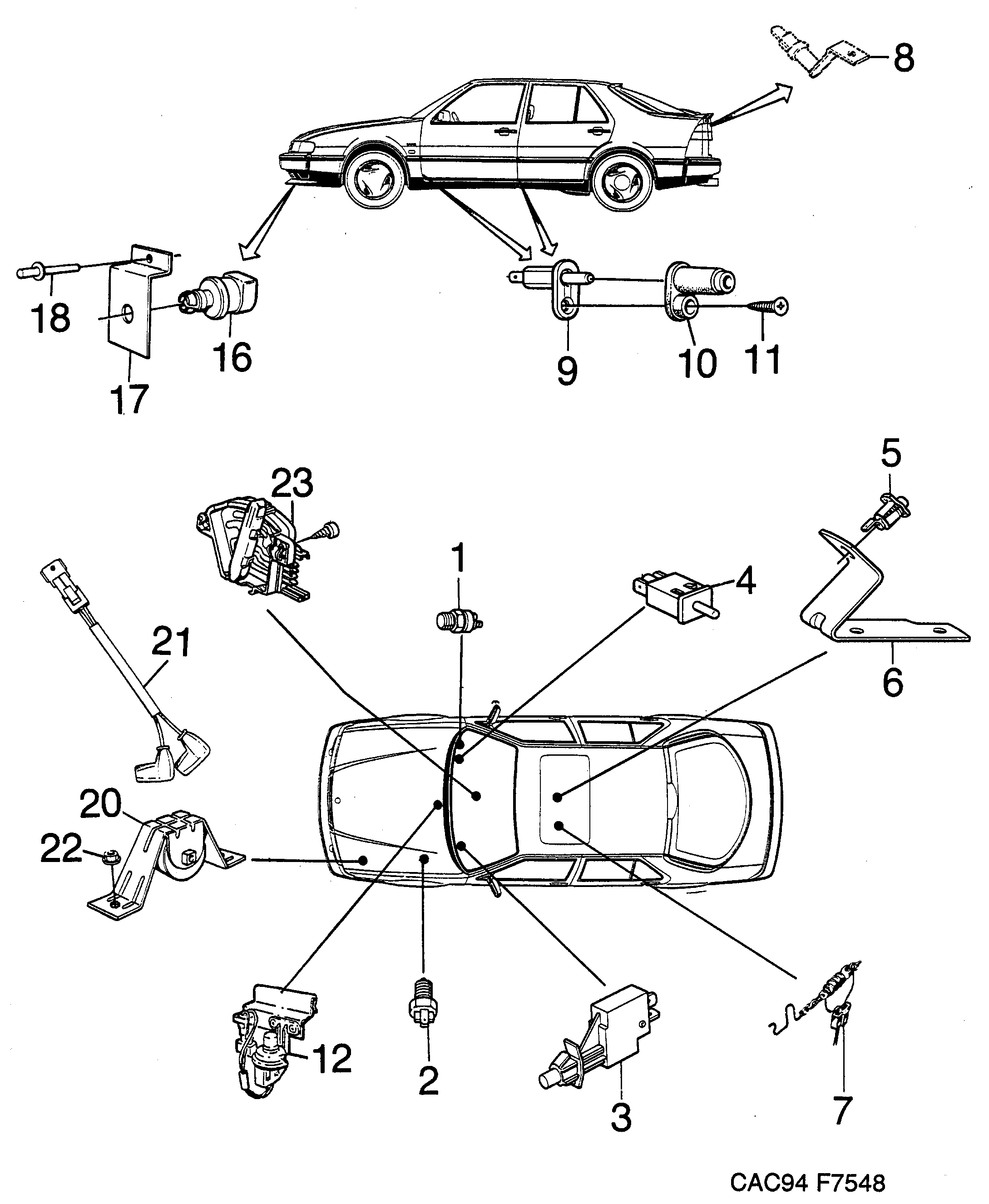

Group 3a Electrical, general, section 1170
| Pos | Article | Part No. |
|---|---|---|
| 3 | Stop light switch | 9505462 |
| 4 | Switch | 9508367 |
| 5 | Door switch | 8522492 |
| 6 | Bracket | 8954596 |
| 7 | Switch | 4716908 |
| 7 | Switch | 4716916 |
| 9 | Switch | 4086492 |
| 9 | Switch | 9514886 |
| 10 | Protection | 9514878 |
| 10 | Protection | 9514878 (replaces 4943569) |
| 11 | Screw | 92153219 (replaces 7922354) |
| 11 | Screw | 92153219 (replaces 7985955) |
| 12 | Pressure monitor | 4692802 |
| 16 | Sensor | 9123456 |
| 17 | Bracket | 9569781 |
| 18 | Pop rivet | 8235178 |
| 20 | Resistor | 4320545 |
| 21 | Cable harness | 4179255 |
| 22 | Plastic nut | 92152035 (replaces 4087128) |
| Starter inhibitor kit | 8548075 |
