Saab 9000 1985-1989 Loudspeaker

Group 3a Electrical, general, section 1150

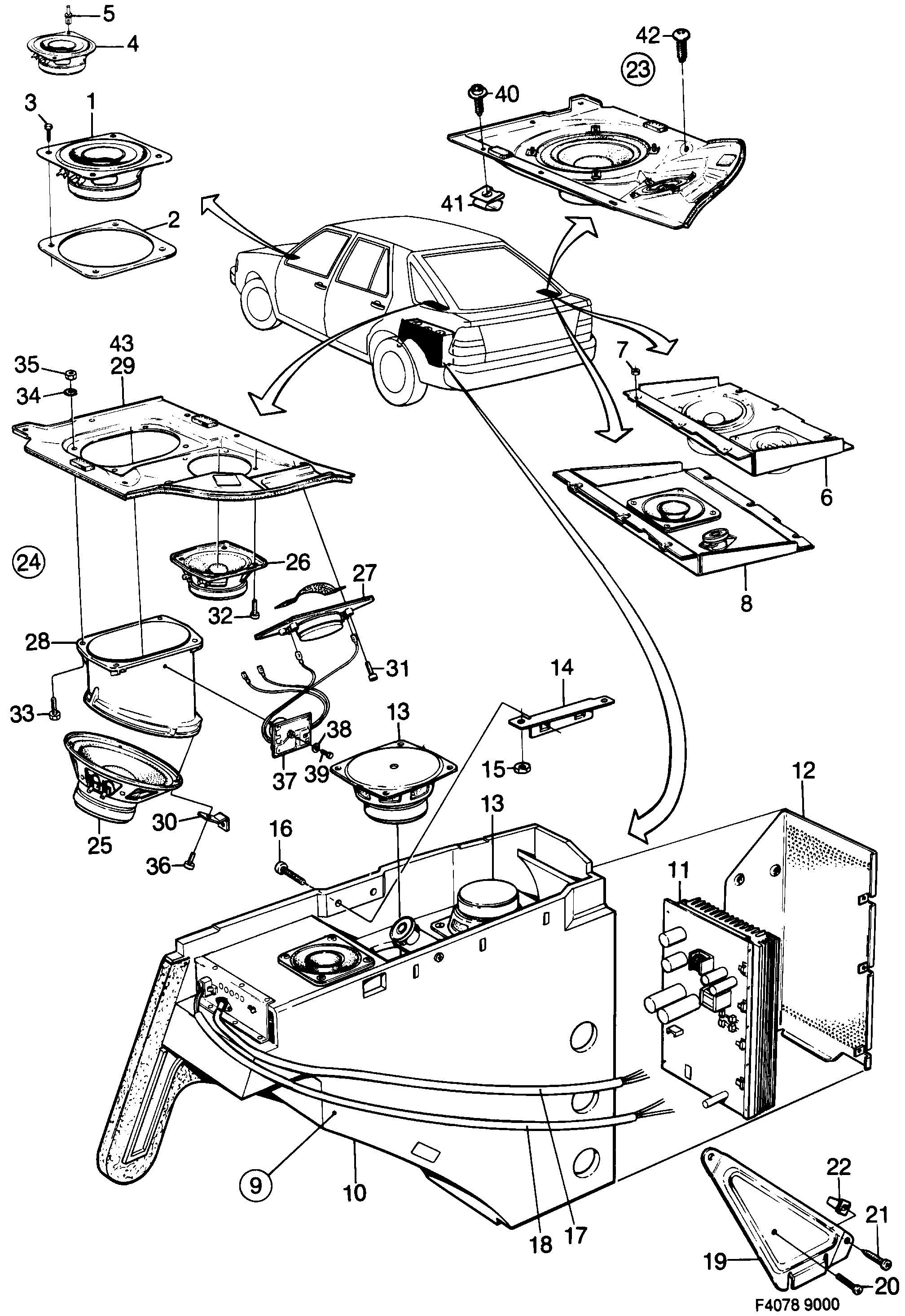

Saab 9000 Loudspeaker diagram

Pos	Article	Part No.
1	Loudspeaker	9514357
1	Loudspeaker	4439121 (replaces 9522806)
2	Spacer	9509076
3	Screw	7972128
4	Loudspeaker	4439113 (replaces 9522814)
5	Rivet	7399256
6	Loudspeaker	9516006
6	Loudspeaker	9516014
6	Loudspeaker	9522632
6	Loudspeaker	9522624
7	Nut	7977671
8	Loudspeaker	9524042
9	Housing, loudspeaker	9524315
10	Housing, loudspeaker	9524307
11	Booster	9524372
12	Cover plate	9524398
13	Loudspeaker	9524406
14	Attaching bracket	9564519
15	Nut	8029548
16	Screw	11900355 (replaces 7978117)
18	Cable harness	9526096
19	Bracket	9564741
20	Screw	7922818
21	Screw	7922834
22	Nut	7975261
23	Loudspeaker	4619219 (replaces 9528167)
23	Loudspeaker	4619227 (replaces 9528159)
24	Loudspeaker	9529223
24	Loudspeaker	4063418
24	Loudspeaker	9529215
24	Loudspeaker	4063400
25	Loudspeaker	9529181
26	Loudspeaker	9529199
27	Loudspeaker	9529207
28	Tube	9529173
29	Bracket	9567207
29	Bracket	4063434
29	Bracket	9567199
29	Bracket	4063426
30	Attaching bracket	9567405
31	Screw	7922602
32	Screw	7922644
33	Screw	8019705
34	Star washer	92152203 (replaces 7915556)
36	Screw	92151805 (replaces 8059230)
37	Filter	9568866
40	Screw	92151992 (replaces 7972938)
41	Nut	9692849
42	Screw	7922420
43	Bracket	9571621
43	Bracket	9571159
