Saab 9000 1990-1991 Washer unit

Group 3a Electrical, general, section 1100

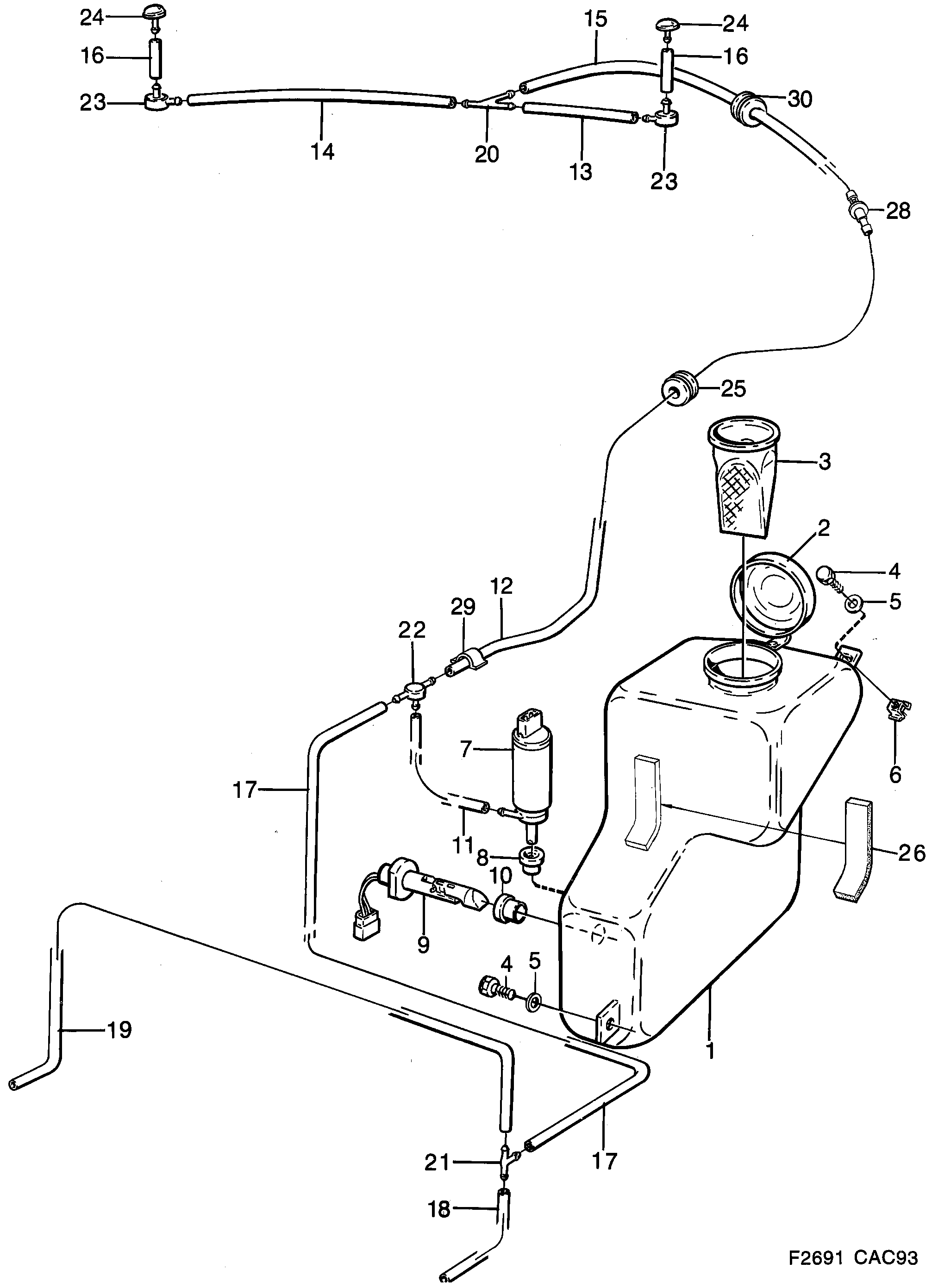

Saab 9000 Washer unit diagram

Pos	Article	Part No.
1	Washer fluid reservoir	9524992
2	Cover	8518557
3	Filter	9566332
4	Screw	8019911
5	Washer	7987506 (replaces 7975469)
6	Nut	7975006
7	Washer pump	30525922
8	Rubber bushing	9528795
9	Level sender	9507633
10	Bushing	9507617
11	Hose	8552044
12	Hose	9524844
13	Hose	9506387
14	Hose	8533366
15	Hose	4088001
16	Hose	8573677
17	Hose	8533358
18	Hose	9506411
19	Hose	9506403
20	Tube	8509002
21	T-pipe	8544660
22	Valve	5142765 (replaces 8573651)
22	Valve	5142765 (replaces 9569013)
23	Valve	5142757 (replaces 8573669)
24	Nozzle	8504144
25	Bushing	7961337
26	Seal	7535404
29	Clip	8513574
30	Bushing	7961345
