Saab 9000 1990-1993 Battery

Group 3a Electrical, general, section 110

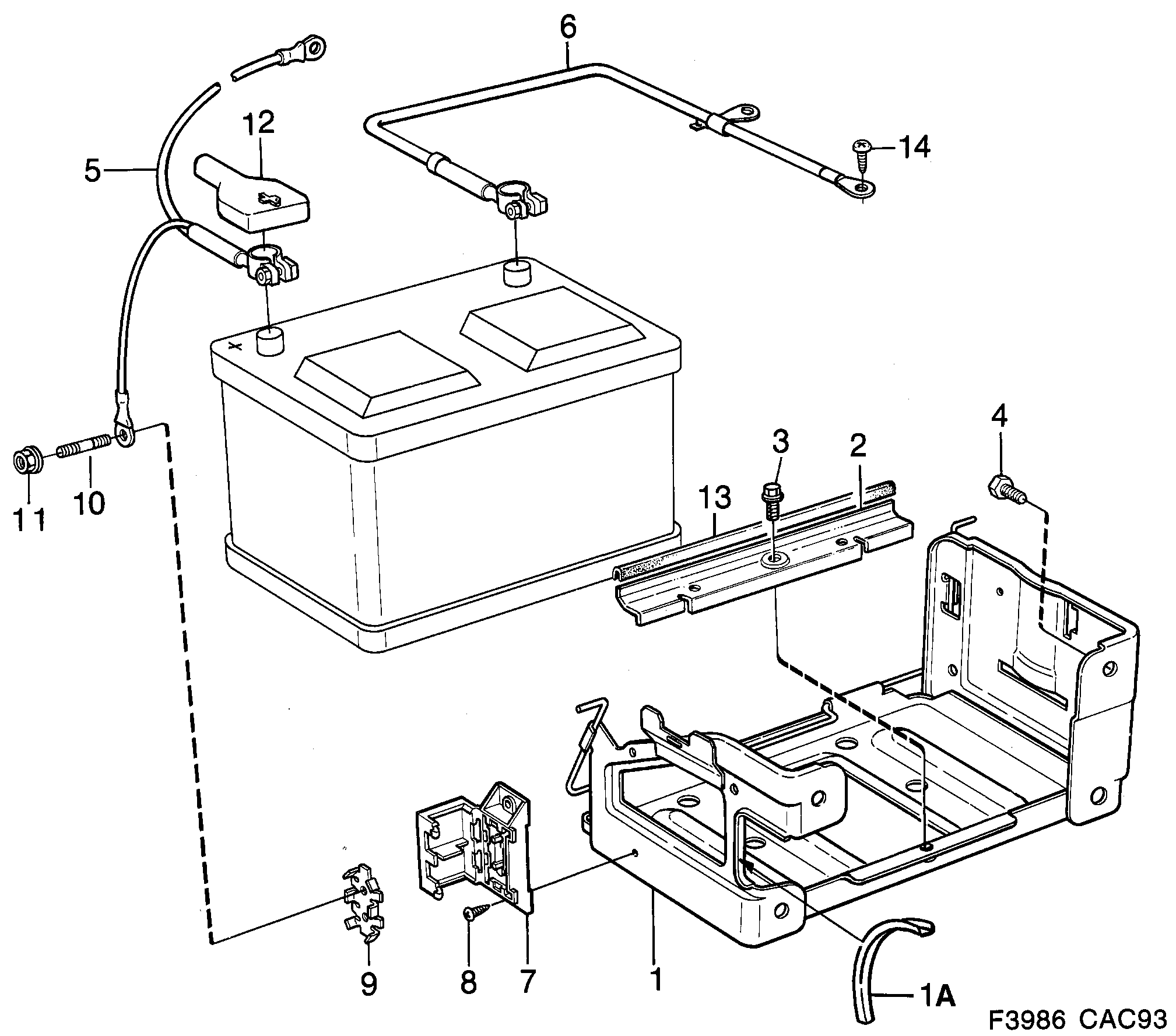

Saab 9000 Battery diagram

Pos	Article	Part No.
1	Battery tray	6961288
1	Battery tray	32000143
1A	Protecting moulding	8564973 (replaces 8497471)
2	Brace	9515222
3	Screw	7977499
4	Screw	7975451
5	Cable	9524208
6	Cable	9517392
6	Cable	5101167
7	Bracket	4061891
8	Screw	7922891 (replaces 7974769)
9	Casing	30525828 (replaces 9503053)
10	Stud	9446881
11	Nut	11900428 (replaces 7971658)
12	Cover	4582425 (replaces 9518424)
14	Screw	4087003
