Saab 9000 1994-1998 Central lock

Group 3a Electrical, general, section 1050

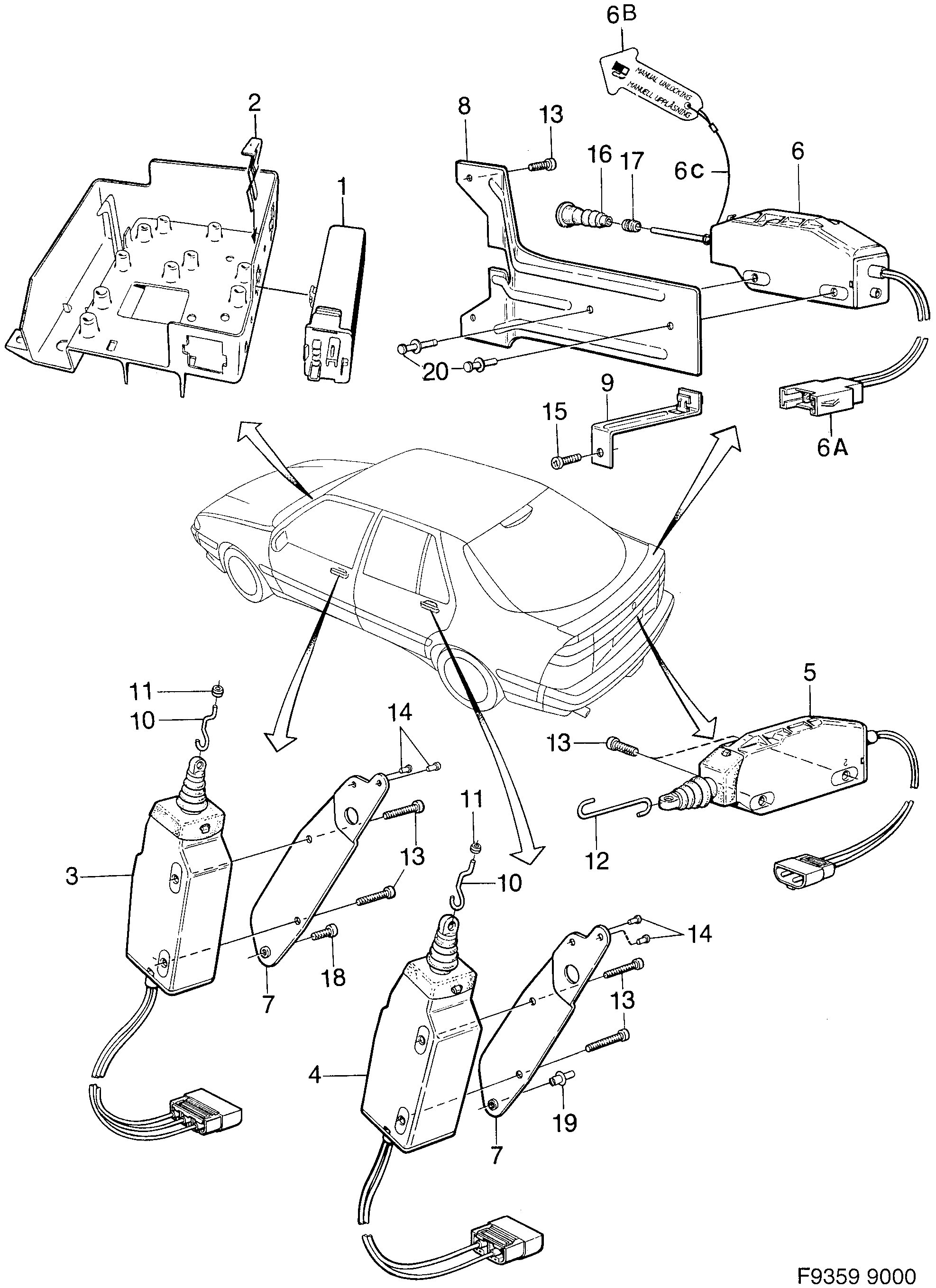

Saab 9000 Central lock diagram

Pos	Article	Part No.
1	Electronic unit	4102851
2	Clip	8565855
3	Electrical motor	8591224
6	Electrical motor	4304911
6A	Connector housing	4117560
6B	Opening handle	4859450
7	Bracket	30525830 (replaces 9503079)
7	Bracket	30525829 (replaces 9503061)
8	Bracket	4304929
8	Bracket	9087552
9	Clamp	9124454
10	Pull rod	9564881
11	Bushing	30525872 (replaces 9505058)
12	Pull rod	9502741
13	Screw	7971823
14	Rivet	30525968 (replaces 9508094)
15	Screw	7922420
16	Bellows	9502709
17	Bushing	9502717
18	Screw	7969223
19	Plastic rivet	9255845
20	Rivet	7961634
20	Rivet	92153058 (replaces 7972490)
