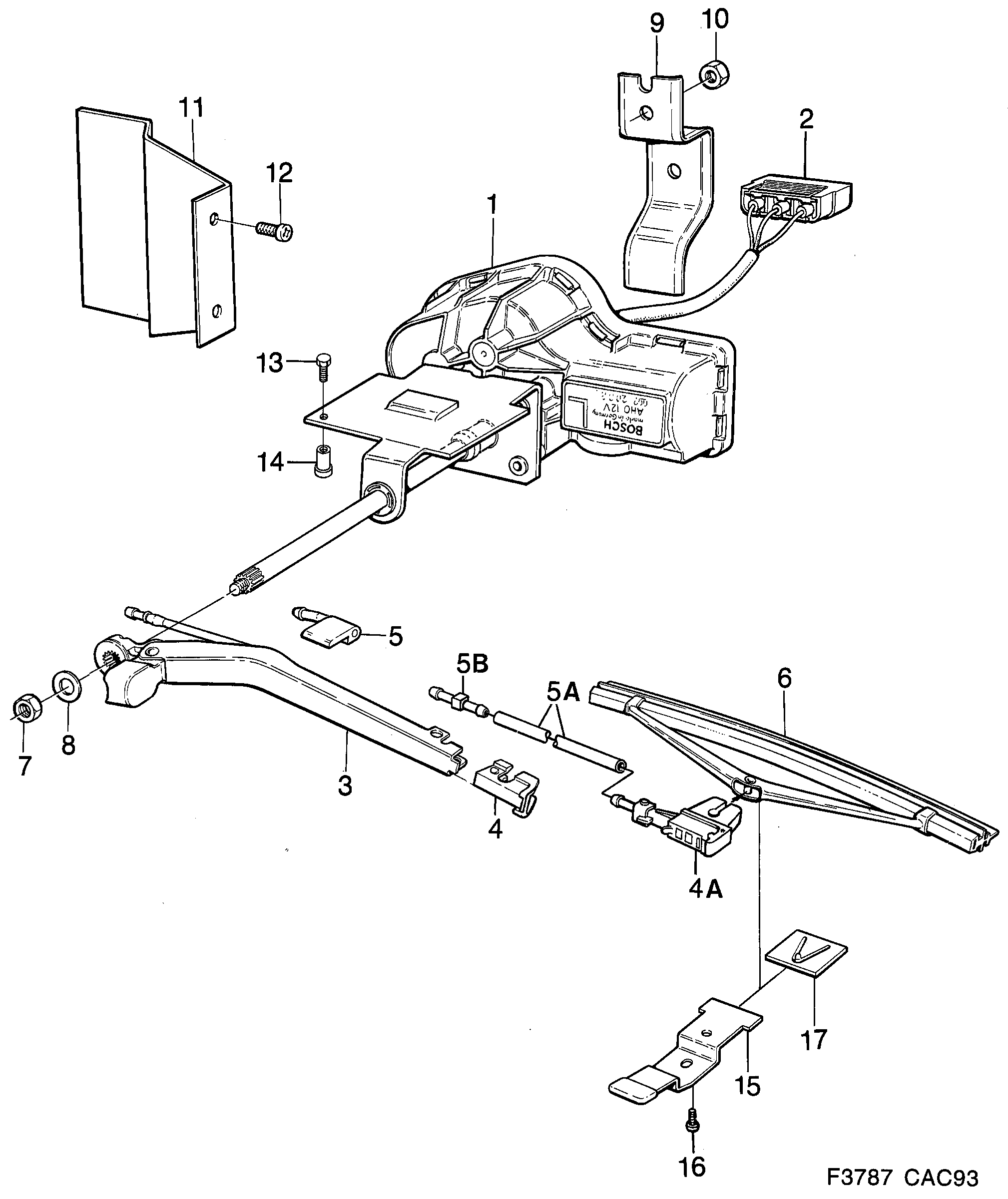

Group 3a Electrical, general, section 1040
| Pos | Article | Part No. |
|---|---|---|
| 1 | Electrical motor | 9509688 |
| 1 | Electrical motor | 9509696 |
| 1 | Electrical motor | 9524232 |
| 1 | Electrical motor | 9524224 |
| 1 | Electrical motor | 4094942 |
| 1 | Electrical motor | 4094926 |
| 1 | Electrical motor | 9123233 |
| 1 | Electrical motor | 9123241 |
| 2 | Connector housing | 9503327 |
| 3 | Wiper arm | 9502584 |
| 3 | Wiper arm | 9502592 |
| 3 | Wiper arm | 9568973 |
| 3 | Wiper arm | 9568981 |
| 3 | Wiper arm | 4250197 |
| 3 | Wiper arm | 4250205 |
| 3 | Wiper arm | 9564295 |
| 3 | Wiper arm | 9564303 |
| 3 | Wiper arm | 4251476 |
| 3 | Wiper arm | 4251484 |
| 4 | Adapter | 30526007 (replaces 9509100) |
| 4 | Adapter | 9558149 |
| 4A | Adapter | 9123217 |
| 4A | Adapter | 9123225 |
| 5 | Nozzle | 30526008 (replaces 9509118) |
| 5 | Nozzle | 30526009 (replaces 9509126) |
| 5 | Nozzle | 9568999 |
| 5 | Nozzle | 9569005 |
| 5A | Hose | 4254603 |
| 5B | Junction pipe | 4014783 |
| 6 | Wiper blade | 4095063 (replaces 9513268) |
| 6 | Wiper blade | 30520558 (replaces 9120882) |
| 6 | Wiper blade | 4095063 |
| 7 | Nut | 8029548 (replaces 8151219) |
| 7 | Nut | 8029548 |
| 7 | Nut | 32026207 (replaces 7977911) |
| 8 | Washer | 7972284 |
| 9 | Bracket | 9501495 |
| 10 | Nut | 8151227 |
| 11 | Shield | 9124124 |
| 12 | Screw | 7922420 |
| 13 | Screw | 7965544 |
| 14 | Nut | 9223082 |
| 15 | Stop | 9502618 |
| 15 | Stop | 9524596 |
| 16 | Screw | 7922891 |
| 17 | Bracket | 9502766 |
| Wiper blade kit | 8548042 (replaces 8547077) | |
| Wiper blade kit | 8547408 | |
| Wiper blade kit | 8548042 |
