Saab 9000 1985-1989 Connectors sensor

Group 3a Electrical, general, section 1030

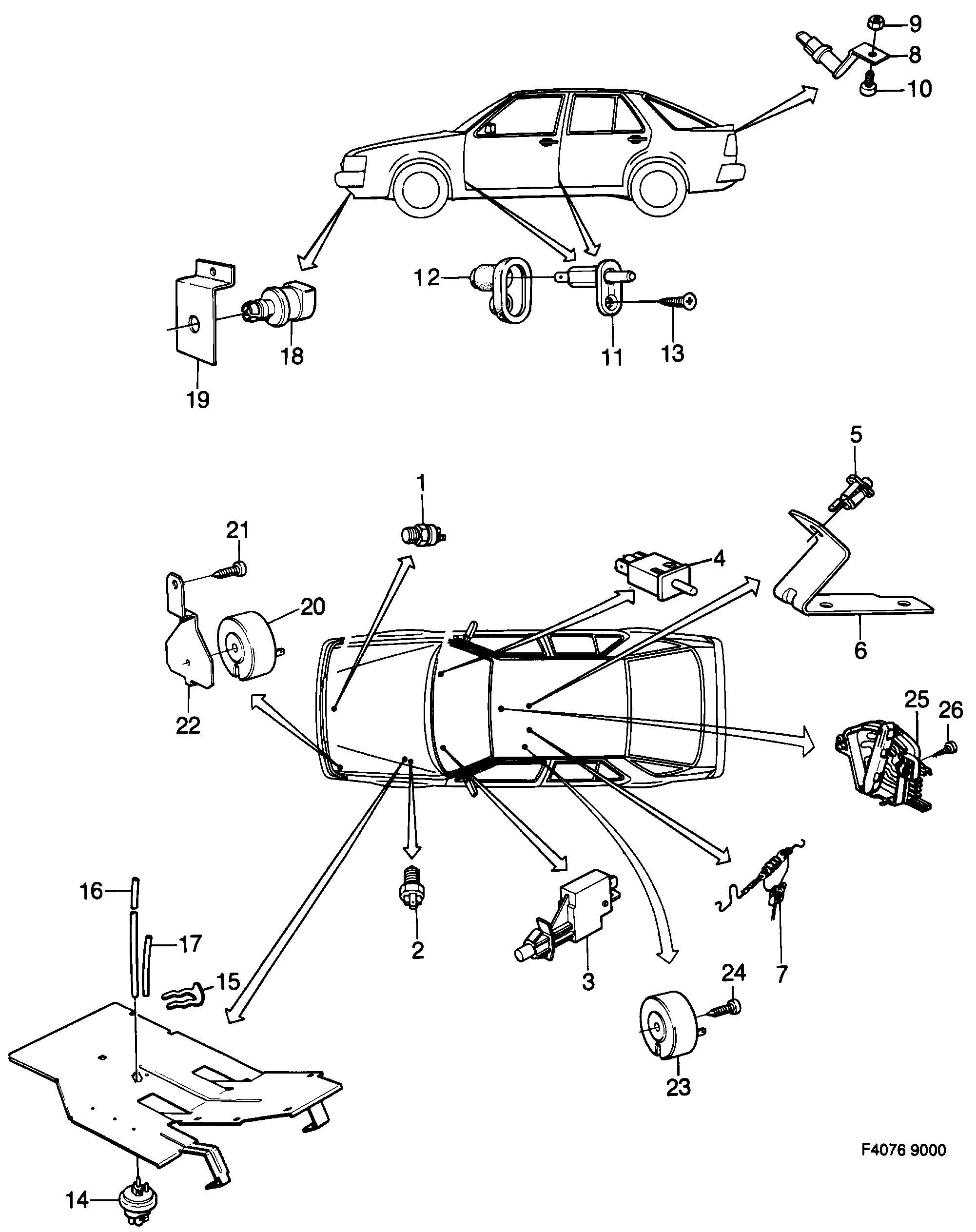

Saab 9000 Connectors sensor diagram

Pos	Article	Part No.
2	Back-up light contact	9529363
3	Stop light switch	9505462
4	Switch	9508367
5	Door switch	8522492
6	Bracket	8954596
7	Switch	9505652
8	Switch	9505694
8	Switch	9524851
9	Nut	7975261
10	Screw	92150118 (replaces 7970536)
11	Switch	9514860
11	Switch	9514860 (replaces 4063640)
11	Switch	9514886
11	Switch	9514886 (replaces 4063657)
12	Protection	30526035 (replaces 9512229)
12	Protection	9514878
13	Screw	7922818
14	Pressure monitor	8594632
15	Clip	8565855
16	Hose	8533366
16	Vaccum hose	9136243
17	Hose	8552044
18	Sensor	9513276
19	Bracket	9514183
19	Bracket	9569781
20	Resistor	9558875
21	Screw	7922370
22	Bracket	9522889
23	Resistor	9565375
24	Screw	7922826
25	Switch	4062980 (replaces 9507740)
25	Switch	4062980 (replaces 9529389)
25	Switch	4062972 (replaces 9529371)
26	Screw	7922347
	Starter inhibitor kit	8548075
