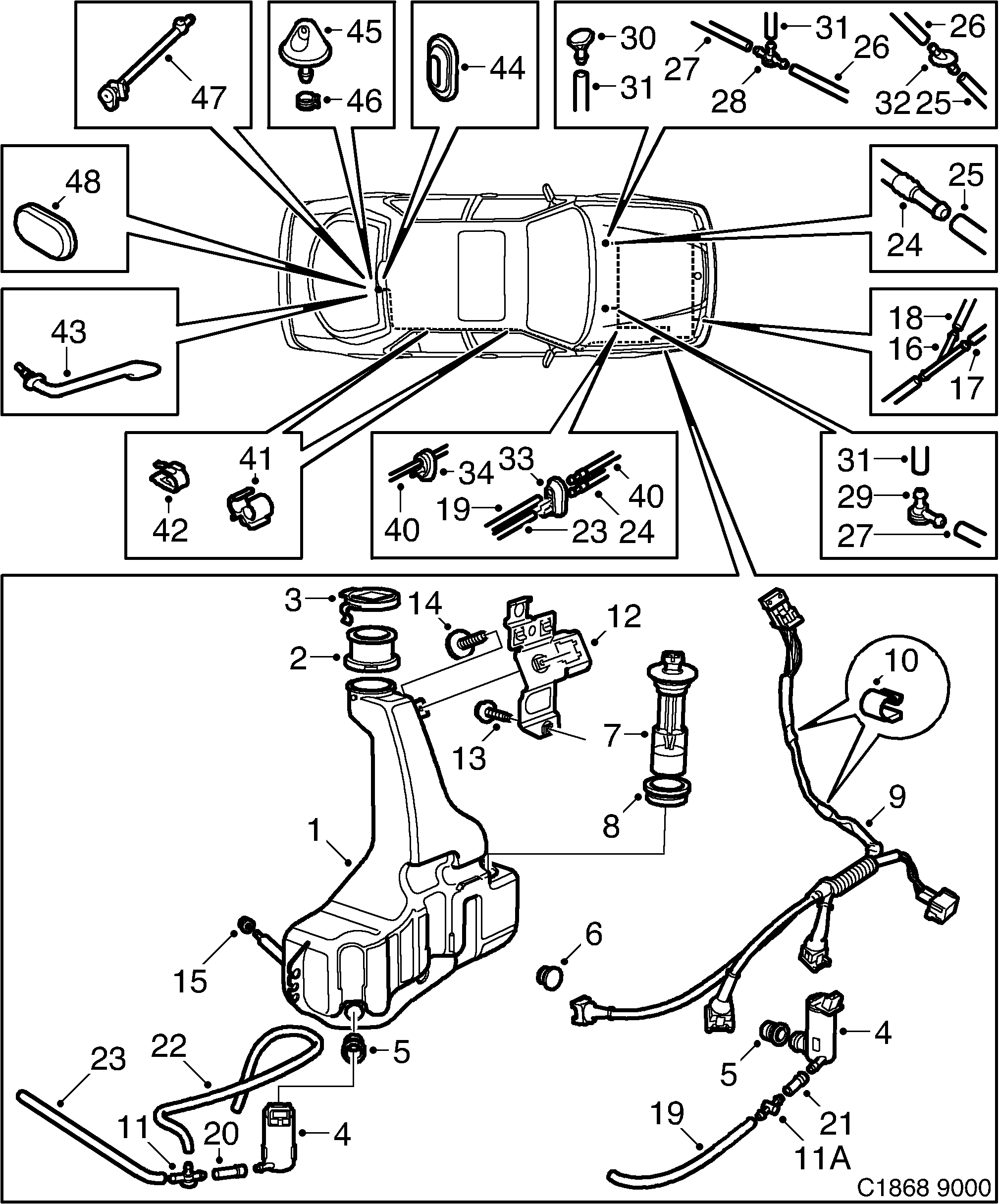

Group 3a Electrical, general, section 1020
| Pos | Article | Part No. |
|---|---|---|
| 1 | Washer fluid reservoir | 4092342 |
| 2 | Filler pipe | 4341145 |
| 3 | Cover | 4092359 |
| 4 | Washer pump | 4320123 |
| 5 | Bushing | 9507617 |
| 6 | Bushing | 4341111 |
| 7 | Level sender | 12788696 (replaces 4171146) |
| 8 | Bushing | 12787615 (replaces 4171153) |
| 9 | Cable harness | 4171161 |
| 9 | Cable harness | 4171179 |
| 10 | Clamp | 7108491 |
| 11 | Valve | 5142765 (replaces 8573651) |
| 11A | Valve | 5336979 (replaces 4171112) |
| 12 | Bracket | 4171203 |
| 13 | Screw | 11900353 (replaces 7978091) |
| 14 | Hexagon screw | 7399900 |
| 15 | Nut | 11900451 (replaces 7977929) |
| 16 | Tube | 8509002 |
| 17 | Hose | 8548273 |
| 24 | Hose | 4252458 |
| 28 | Valve | 5142765 (replaces 9569013) |
| 29 | Valve | 5142757 (replaces 8573669) |
| 30 | Nozzle | 8504144 |
| 33 | Grommet | 4096012 |
| 34 | Grommet | 4254611 |
| 40 | Hose | 4096020 |
| 41 | Clamp | 4096038 |
| 42 | Clamp | 4251997 |
| 43 | Grommet | 4521456 (replaces 4171245) |
| 43 | Grommet | 4521456 |
| 43 | Grommet | 4380515 |
| 43 | Grommet | 4521456 (replaces 4171260) |
| 44 | Sealing plug | 4171278 |
| 45 | Nozzle | 4092144 |
| 45 | Nozzle | 4172441 |
| 46 | Clamp | 7984768 |
| 47 | Nozzle | 4521449 |
| 48 | Plug | 8272494 |
| Bracket | 4959714 |
