Saab 9000 1985-1989 Speed control system

Group 3a Electrical, general, section 1000

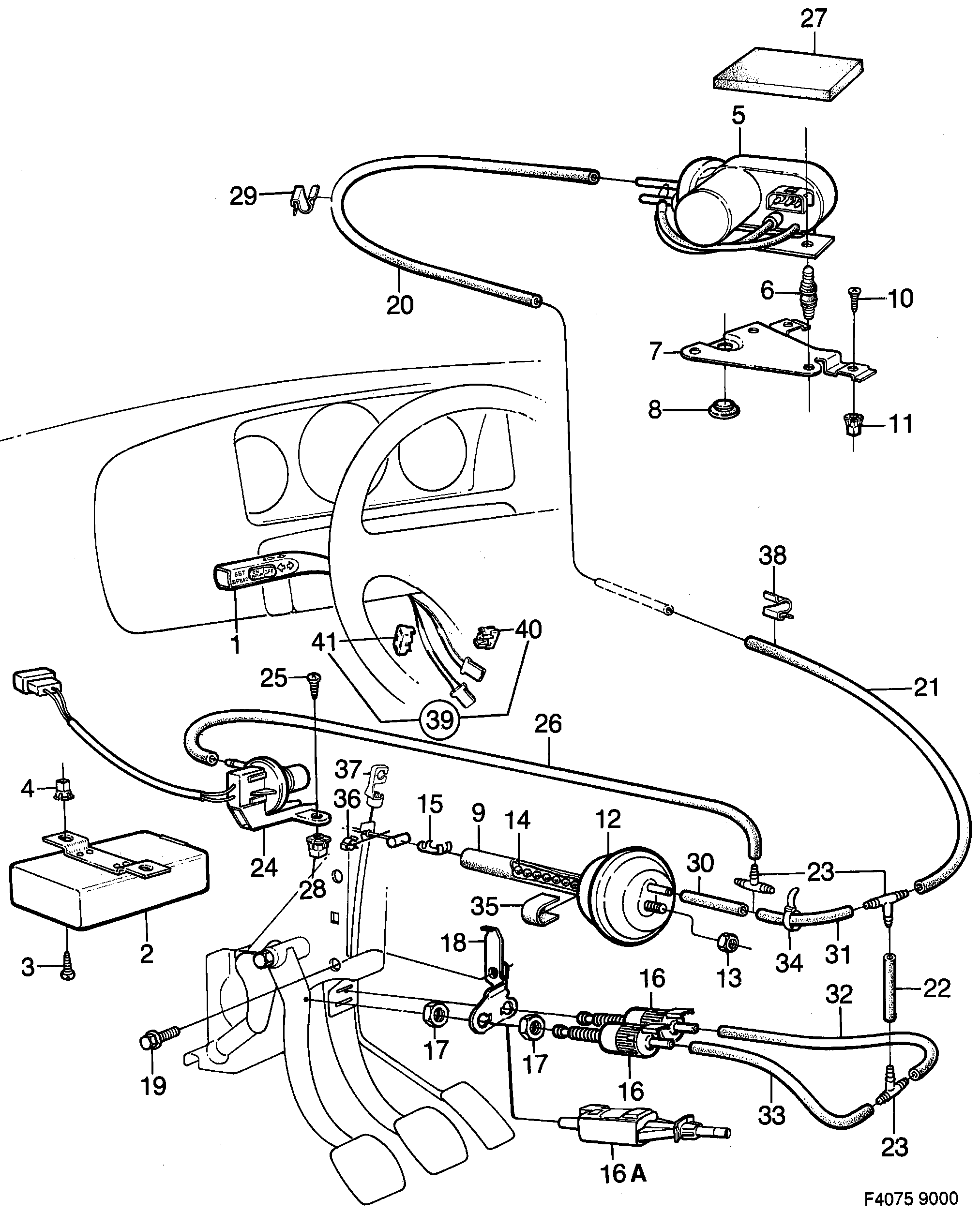

Saab 9000 Speed control system diagram

Pos	Article	Part No.
2	Electronic unit	8587016
2	Electronic unit	9560905
2	Electronic unit	9526757
3	Screw	7922891
4	Nut	7975261
5	Vacuum pump	8587024
6	Suspension	9555194
7	Bracket	9506858
7	Bracket	9517798
8	Plug	8206096
9	Hose	9124223
12	Vacuum regulator	9512302
13	Nut	11900440 (replaces 8074288)
14	Chain	8587081
14	Chain	4061917
15	Clamp	8587099
16	Switch	9512294
16A	Switch	4350443 (replaces 9522855)
17	Nut	8566259
18	Bracket	9506882
18	Bracket	9569021
19	Screw	7528953 (replaces 7971757)
20	Hose	9566548
20	Hose	9566480 (replaces 9520677)
20	Hose	9566480
21	Hose	9566415
21	Hose	9566423
21	Hose	9516337
21	Hose	9566407
21	Hose	9566399
22	Hose	9566423 (replaces 8590689)
23	Manifold	8587107
23	Tube	8509002
24	Vacuum switch	8598195
24	Vacuum switch	9564865
24	Vacuum switch	9124884
25	Screw	7922818
25	Screw	7922826
26	Hose	9516329
26	Hose	9564162
27	Spacer	9656901
29	Clamp	7121239
30	Hose	9566381
31	Hose	9519646
31	Hose	9566456
31	Hose	9566464
32	Hose	8587347
32	Hose	9519638
32	Hose	9566472
32	Hose	9566449
34	Tie strap	7398944
34	Tie strap	7398977
35	Chain coupling	4063384 (replaces 9124082)
35	Chain coupling	4063384
37	Protection	4061362
38	Clamp	7108491
39	Cable joint	9560012
40	Manifold	9560012 (replaces 9559998)
41	Manifold	9560012 (replaces 9560004)
