Saab 9000 1985-1989 Battery

Group 3a Electrical, general, section 100

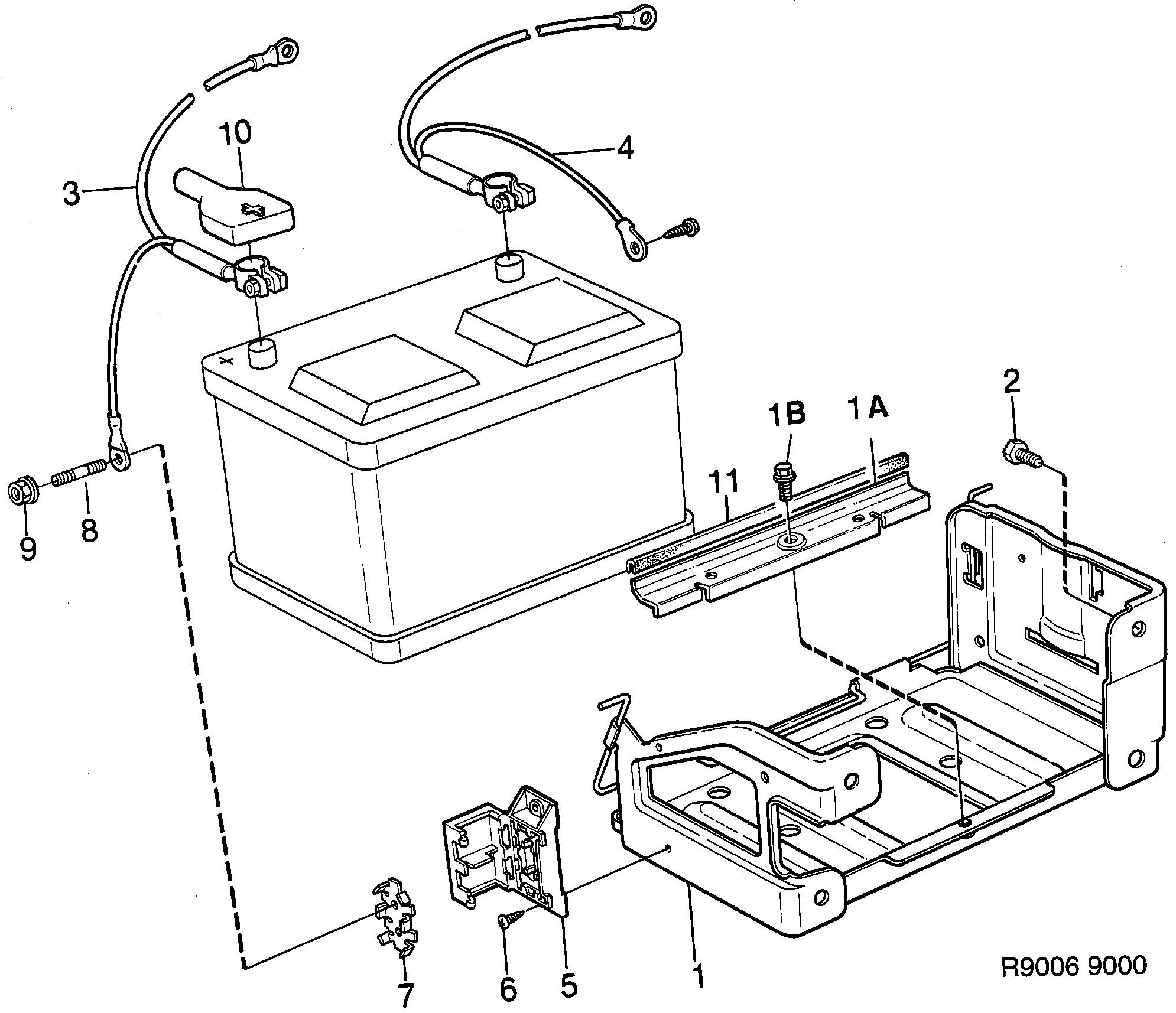

Saab 9000 Battery diagram

Pos	Article	Part No.
1	Battery tray	9503095
1	Battery tray	9515230
1	Battery tray	9520941
1	Battery tray	6961288
1A	Brace	9515222
1B	Screw	7977499
2	Screw	7975451
3	Cable	9517384
3	Cable	9524208
4	Cable	9517392
5	Bracket	4061891 (replaces 9503046)
5	Bracket	4061891
6	Screw	7922891 (replaces 7974769)
7	Casing	30525828 (replaces 9503053)
8	Screw	8019895
8	Stud	9446881
9	Nut	11900428 (replaces 7971658)
10	Cover	4582425 (replaces 9518424)
11	Protecting moulding	9519737
11	Protecting moulding	8564973
