Saab 9000 1986-1989 Automatic idling speed Control

Group 2 Engine, section 910

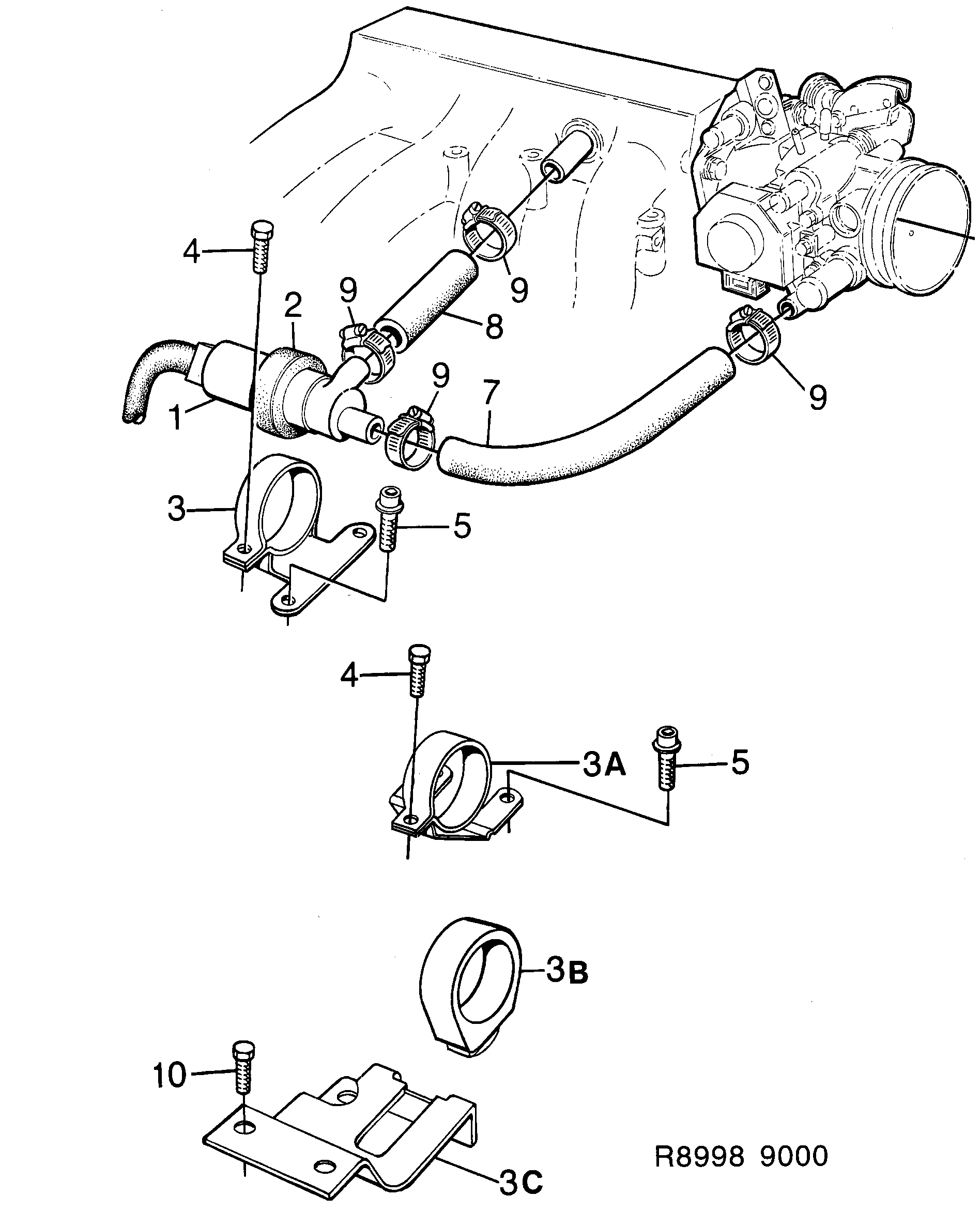

Saab 9000 Automatic idling speed Control diagram

Pos	Article	Part No.
1	Control valve	7516792
1	Idle air control valve	7586019
2	Ring	7565351
3	Bracket	7560311
3A	Bracket	7564305
3B	Retainer	7481682
3B	Retainer	7481690
3C	Bracket	7481708
4	Screw	8125023
5	Screw	8097883
7	Hose	7560337
7	Hose	7588445
7	Hose	7588403
8	Hose	7560345
8	Hose	7588395
8	Hose	7588387
8	Hose	7486624
8	Hose	30520359 (replaces 9112491)
9	Hose clamp	7970072 (replaces 7963531)
9	Hose clamp	7970080 (replaces 7963549)
10	Screw	8125007
