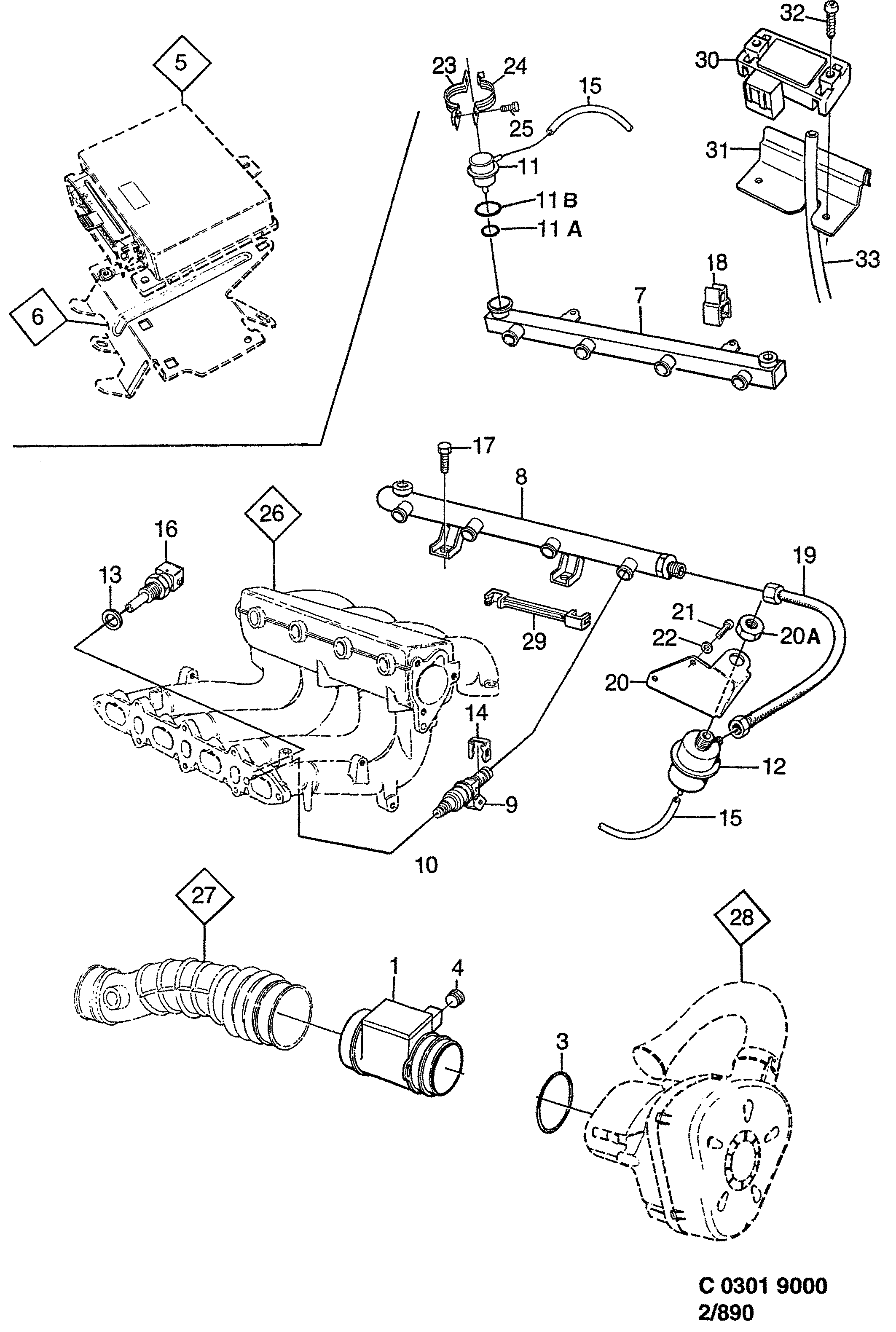

Group 2 Engine, section 890
| Pos | Article | Part No. |
|---|---|---|
| 1 | Mass air flow sensor | 9113846 |
| 1 | Mass air flow sensor | 9113838 |
| 1 | Mass air flow sensor | 7872385 |
| 3 | O-ring | 7974306 |
| 4 | Plug | 9383076 |
| 7 | Tube | 8856981 |
| 7 | Tube | 9136318 |
| 8 | Tube | 8788473 |
| 9 | Injection valve | 8857153 |
| 9 | Injection valve | 9135120 |
| 9 | Injection valve | 9136300 |
| 9 | Injection valve | 9113721 |
| 10 | O-ring | 7561210 |
| 11 | Fuel pressure regulator | 9131061 |
| 11A | O-ring | 30580309 (replaces 9197724) |
| 11B | O-ring | 90511961 |
| 12 | Regulator | 7486921 |
| 13 | Seal | 8326704 |
| 14 | Clamp | 9356486 |
| 15 | Vaccum hose | 9136243 |
| 16 | Temperature sensor | 9357021 |
| 16 | Temperature sensor | 8788200 |
| 17 | Screw | 8125148 |
| 17 | Screw | 8125007 |
| 18 | Clamp | 4158846 |
| 19 | Fuel pipe | 7486954 |
| 20 | Bracket | 8858359 |
| 20A | Nut | 8151177 |
| 21 | Screw | 9350653 |
| 22 | Washer | 8029951 |
| 22 | Washer | 9166364 |
| 23 | Bracket | 9108226 |
| 23 | Bracket | 9128836 |
| 24 | Bracket | 9108242 |
| 24 | Bracket | 9128851 |
| 25 | Screw | 8125007 (replaces 9109539) |
| 29 | Retainer | 9138231 |
| 30 | Charge Air Absolute Pressure Sensor | 9132374 |
| 31 | Bracket | 4161899 |
| 32 | Screw | 7922396 |
| 33 | Vaccum hose | 4164141 |
