Saab 9000 1986-1989 Throttle housing

Group 2 Engine, section 850

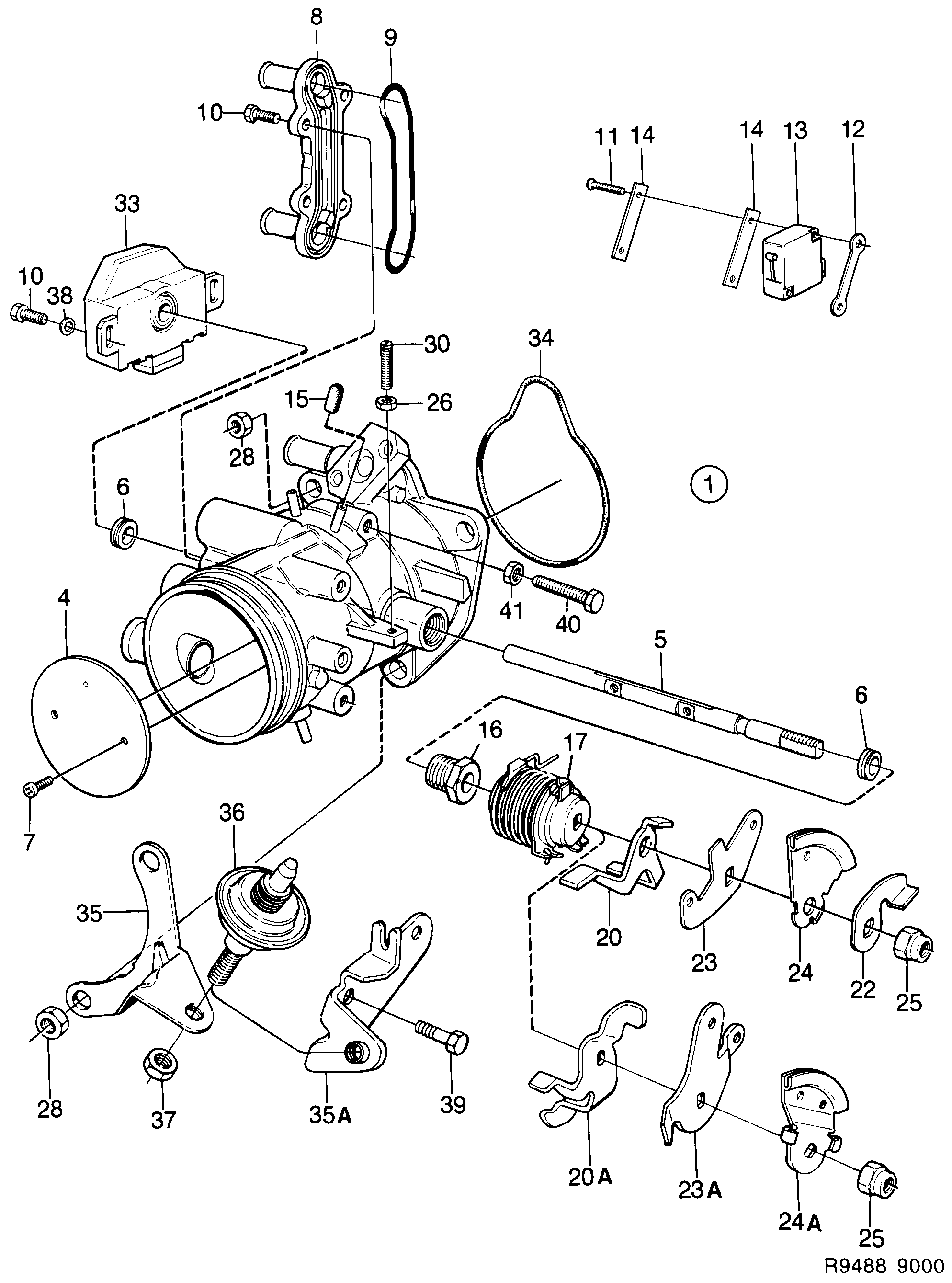

Saab 9000 Throttle housing diagram

Pos	Article	Part No.
1	Throttle body	7569569
1	Throttle body	7581911
1	Throttle body	7483936
1	Throttle body	7483951
1	Throttle body	7487457
1	Throttle body	7569585
1	Throttle body	7483944
1	Throttle body	7581929
1	Throttle body	9117235
1	Throttle body	7484140
1	Throttle body	7487648
1	Throttle body	7487804
1	Throttle body	7569601
1	Throttle body	7581895
1	Throttle body	7483910
1	Throttle body	7487432
1	Throttle body	7581903
1	Throttle body	7483928
1	Throttle body	7487440
1	Throttle body	7487796
4	Shutter	8353484
5	Shutter shaft	8057259 (replaces 7504673)
6	Seal	8357345
7	Screw	8059073
8	Cover	7505423
9	O-ring	7506264
10	Screw	7985187 (replaces 7507080)
11	Screw	8123671
11	Screw	8096364
12	Bracket	9350752
12	Bracket	7564834
13	Switch	7588270
14	Washer	7564065
15	Plug	8335614
16	Plug	9359050
17	Return spring	7516974
20	Lever	7562382
20A	Lever	7566276
22	Lever	7562051
23	Lever	7563521
23A	Lever	7483183
24	Cam disc	7518491
24A	Cam disc	7566300
25	Nut	11900440 (replaces 8074288)
26	Nut	8151045 (replaces 8050593)
26	Nut	8151045
28	Nut	11900429 (replaces 8151326)
30	Set screw	4087706 (replaces 8007486)
33	Potentiometer	7501612
34	O-ring	7521875
35	Bracket	7563539
35A	Bracket	7566284
36	Absorber	9314501
37	Nut	8069015
38	Washer	32000431 (replaces 8029936)
39	Screw	8125007
40	Screw	8357378
41	Nut	8151052
