Saab 9000 1985-1985 Throttle housing

Group 2 Engine, section 820

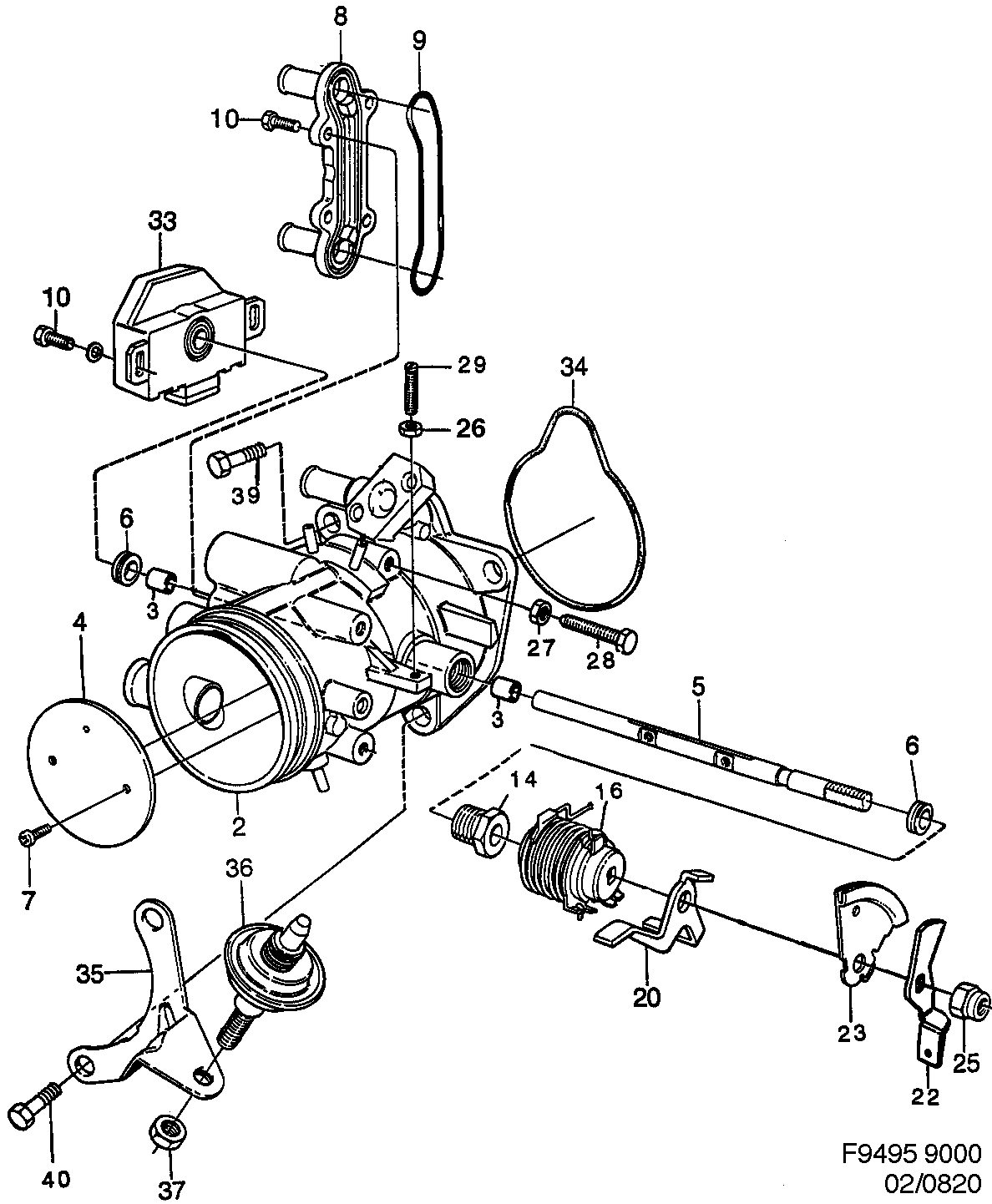

Saab 9000 Throttle housing diagram

Pos	Article	Part No.
2	Throttle body	7509896
3	Bushing	8348641
4	Shutter	8353484
5	Shutter shaft	8057259 (replaces 7504673)
6	Seal	8357345
7	Screw	8059073
8	Cover	7505423
9	O-ring	7506264
10	Screw	7985187 (replaces 7507080)
14	Plug	9359050
16	Return spring	7516974
20	Lever	7521065
22	Lever	7518517
23	Cam disc	7518491
25	Nut	11900440 (replaces 8074288)
26	Nut	8151045 (replaces 8050593)
27	Nut	8151052
28	Screw	8357378
29	Set screw	4087706 (replaces 8007486)
33	Potentiometer	7501612
34	O-ring	7521875
35	Bracket	7518533
36	Absorber	9314501
37	Nut	8069015
39	Screw	8125189
40	Screw	7519499
