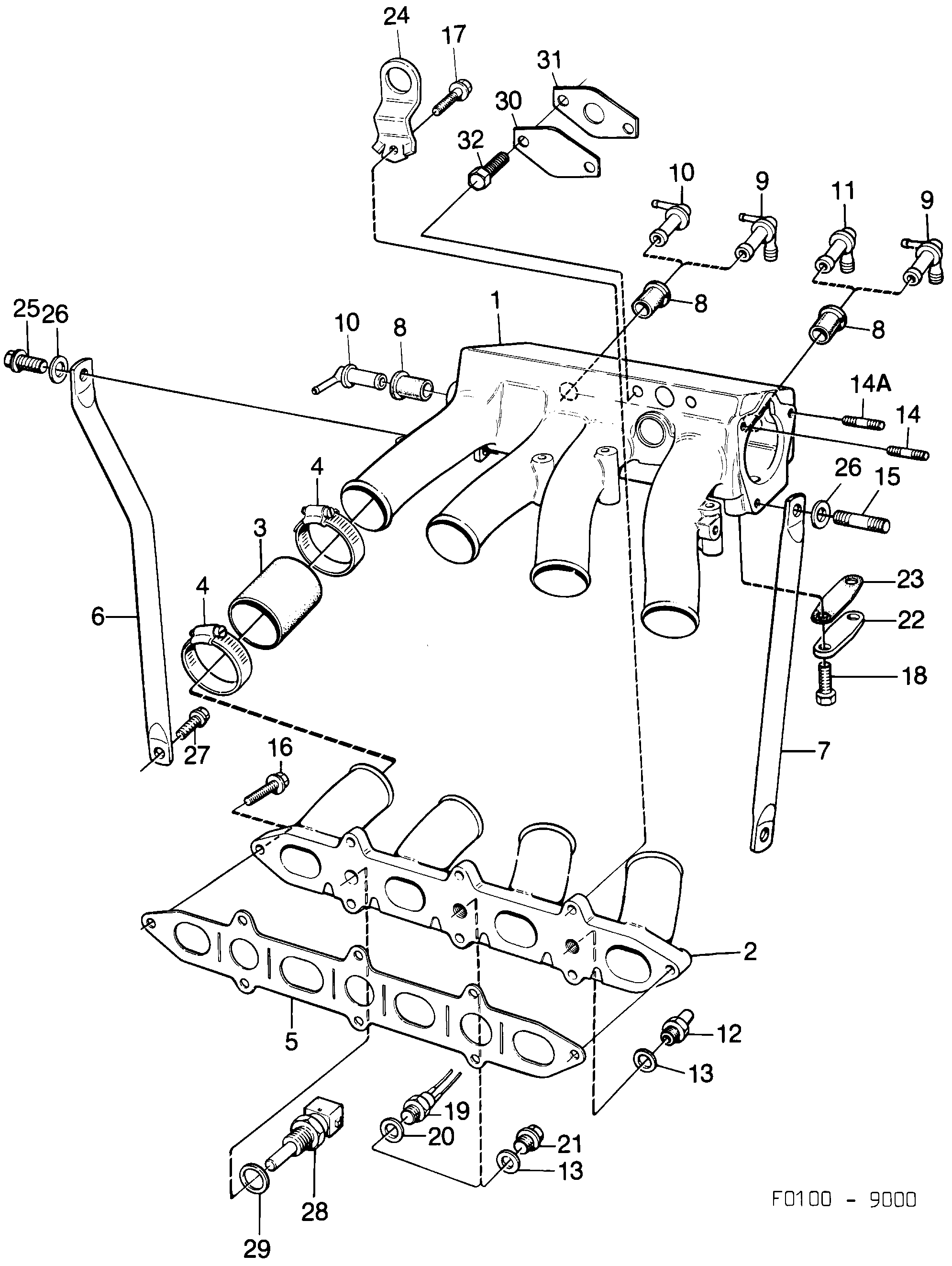

Group 2 Engine, section 790
| Pos | Article | Part No. |
|---|---|---|
| 1 | Intake manifold | 7567837 |
| 1 | Intake manifold | 7581879 |
| 1 | Intake manifold | 7482748 |
| 1 | Intake manifold | 7484348 |
| 2 | Intake manifold | 7564537 |
| 2 | Intake manifold | 7484363 |
| 3 | Hose | 7566748 |
| 4 | Hose clamp | 7970122 |
| 5 | Gasket | 7584436 (replaces 7515885) |
| 5 | Gasket | 7584436 |
| 6 | Brace | 7564289 |
| 6 | Brace | 8788580 |
| 7 | Brace | 7564297 |
| 7 | Brace | 8788572 |
| 8 | Bushing | 7515208 |
| 9 | Nipple | 9312802 |
| 10 | Nipple | 8359937 |
| 11 | Nipple | 8357543 |
| 12 | Nipple | 7588098 |
| 13 | Gasket | 92150435 (replaces 8124141) |
| 13 | Seal | 4161162 (replaces 8981961) |
| 14 | Stud | 8005928 |
| 14 | Stud | 8005910 |
| 15 | Stud | 8005936 |
| 16 | Screw | 8125197 |
| 17 | Screw | 8125205 |
| 18 | Screw | 7985930 (replaces 8019903) |
| 18 | Screw | 8019895 |
| 19 | Thermostat | 7519416 |
| 21 | Plug | 7563042 (replaces 7564222) |
| 21 | Plug | 7563042 (replaces 8123721) |
| 22 | Flange | 9358177 |
| 23 | Gasket | 7507973 |
| 24 | Lifting eye | 7521230 |
| 25 | Screw | 8125163 |
| 26 | Washer | 7586498 |
| 27 | Screw | 55562121 (replaces 8125155) |
| 28 | Temperature sensor | 9357021 |
| 28 | Sensor | 7563562 |
| 29 | Seal | 8326704 |
| 30 | Flange | 7586860 |
| 31 | Gasket | 7586878 |
