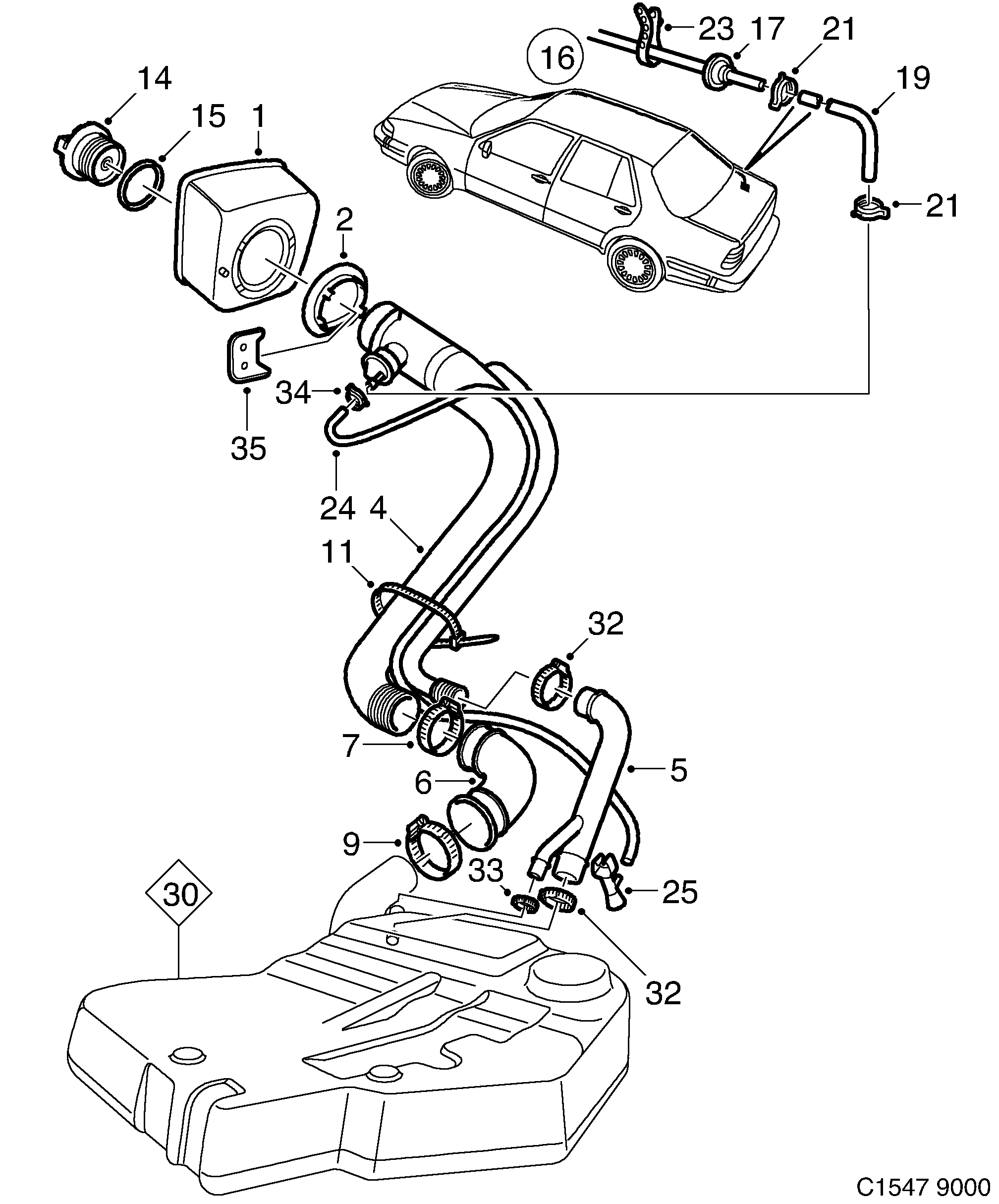

Group 2 Engine, section 740
| Pos | Article | Part No. |
|---|---|---|
| 1 | Filler pipe | 4160537 |
| 1 | Filler pipe | 4390423 |
| 1 | Filler pipe | 4015988 |
| 1 | Filler pipe | 4390431 |
| 2 | Washer | 4023362 |
| 4 | Filler pipe | 4020996 |
| 4 | Filler pipe | 4159356 |
| 5 | Hose | 8822140 |
| Hose | 4527255 (replaces 4022950) | |
| (32) | Hose clamp | 7970080 |
| (33) | Hose clamp | 7977879 |
| 6 | Hose | 8822132 |
| Hose | 4527248 (replaces 4022927) | |
| 7 | Hose clamp | 4441697 |
| 9 | Hose clamp | 4441689 |
| 11 | Tie strap | 11900513 (replaces 7971880) |
| 14 | Filler cap | 4164372 |
| 14 | Filler cap | 4391058 |
| 14 | Filler cap | 4163226 |
| 15 | Gasket | 7511751 |
| 16 | Tube | 4021002 |
| 17 | Grommet | 4021010 |
| 19 | Hose | 4164620 |
| 21 | Hose clamp | 90530642 (replaces 7977697) |
| 23 | Tie strap | 9392606 |
| 24 | Hose | 4163895 |
| 25 | Funnel | 9394875 |
| 34 | Hose clamp | 7973522 |
