Saab 9000 1985-1985 Inlet manifold

Group 2 Engine, section 730

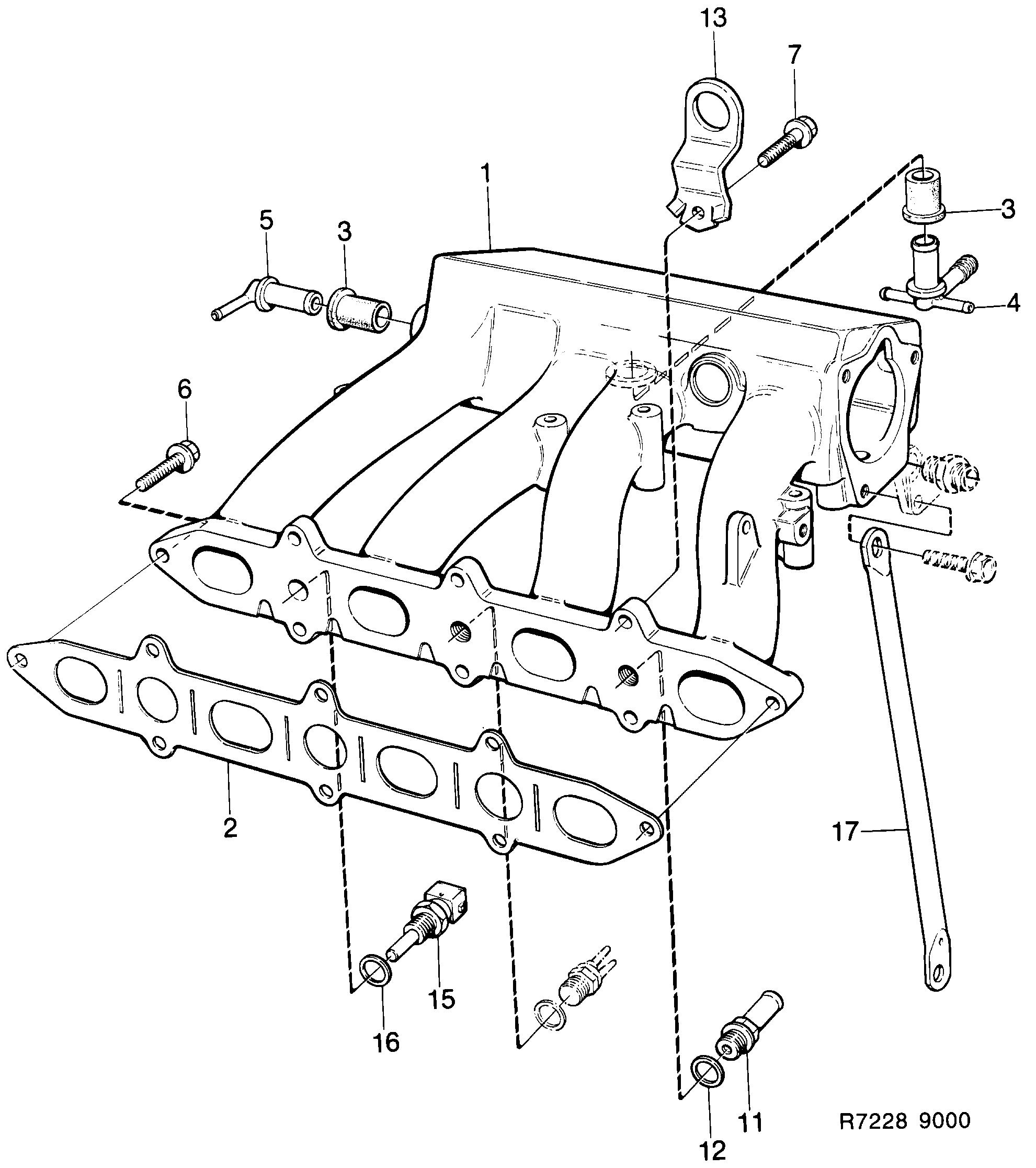

Saab 9000 Inlet manifold diagram
PosArticlePart No.
1Intake manifold7517006
2Gasket7584436 (replaces 7515885)
3Bushing7515208
4Nipple7522477
5Nipple8359937
6Screw8125197
7Screw8125205
11Nipple7588098
12Gasket92150435 (replaces 8124141)
13Lifting eye7521230
15Temperature sensor9357021
16Seal8326704
17Brace7517444
