Saab 9000 1994-1998 Oil pipe

Group 2 Engine, section 720

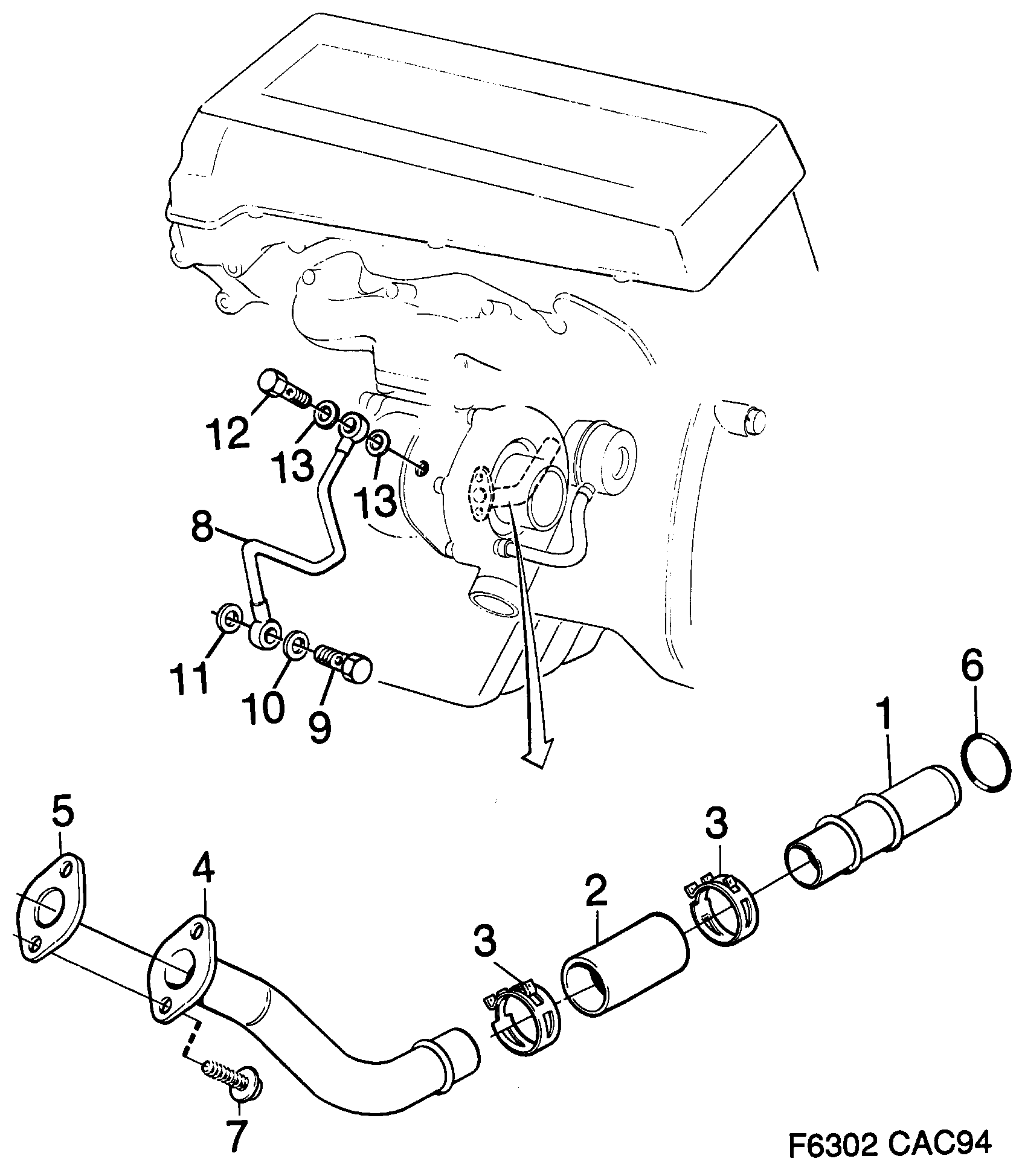

Saab 9000 Oil pipe diagram

Pos	Article	Part No.
1	Tube	30551796 (replaces 9129396)
2	Hose	9146192
3	Clamp	7586050
4	Tube	9146176
4	Tube	9168220
4	Tube	9176140
5	Gasket	9114075
5	Gasket	55563093 (replaces 9107582)
6	O-ring	7502263
7	Screw	7978075 (replaces 8059768)
7	Screw	7985930 (replaces 8125015)
8	Tube	9146168
8	Tube	9170473
9	Banjo screw	90490325 (replaces 9143967)
10	Gasket	92150435 (replaces 8124141)
11	Seal	4161162 (replaces 8326712)
12	Banjo screw	90490324 (replaces 9136524)
13	Gasket	11066422 (replaces 8124133)
