Saab 9000 1990-1991 Filler pipe

Group 2 Engine, section 710

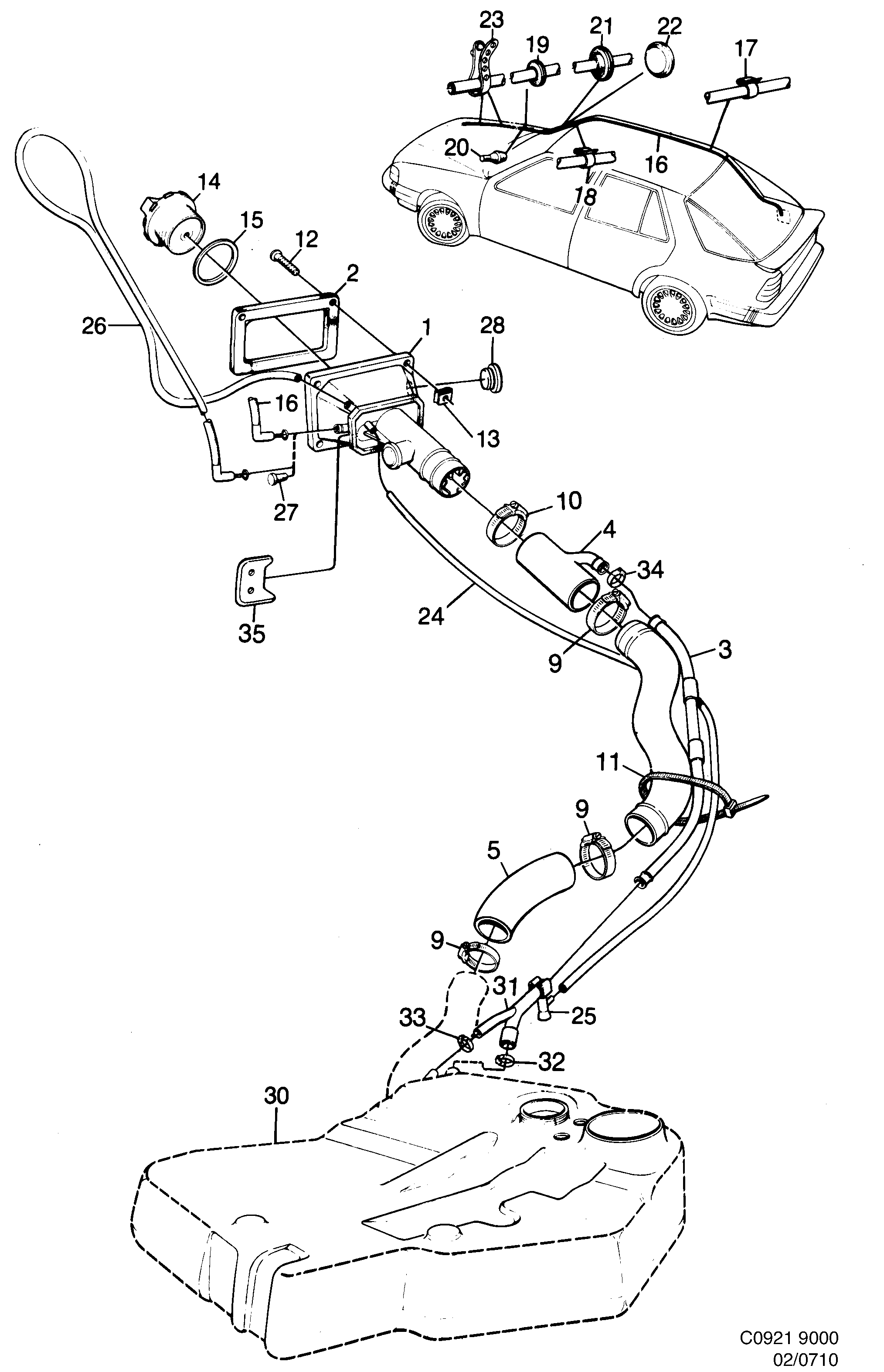

Saab 9000 Filler pipe diagram

Pos	Article	Part No.
1	Filler pipe	8982225
1	Filler pipe	8982191
2	Dust seal	9387002
3	Filler pipe	4019519
4	Hose	4015590
5	Hose	4015475
9	Hose clamp	92153077 (replaces 7970130)
10	Hose clamp	92153079 (replaces 7970148)
11	Tie strap	11900513 (replaces 7971880)
12	Screw	92150118 (replaces 7970536)
13	Nut	8978371
14	Filler cap	4391058 (replaces 8982209)
14	Filler cap	4163226
15	Gasket	7511751
16	Tube	4015764
17	Clamp	12755295 (replaces 9383043)
18	Clip	9365164
19	Bushing	7961337
20	Plug	7038342
21	Grommet	9387903
22	Plug	7155708
23	Tie strap	9392606
24	Hose	9394867
25	Funnel	9394875
26	Tube	9393299
27	Plastic plug	7536840
28	Plug	7163066
31	Hose	4019501
32	Hose clamp	7970080
33	Hose clamp	7977879
34	Hose clamp	7970072
