Saab 9000 1994-1998 Oil pan, oil filter 6-cylinder

Group 2 Engine, section 630

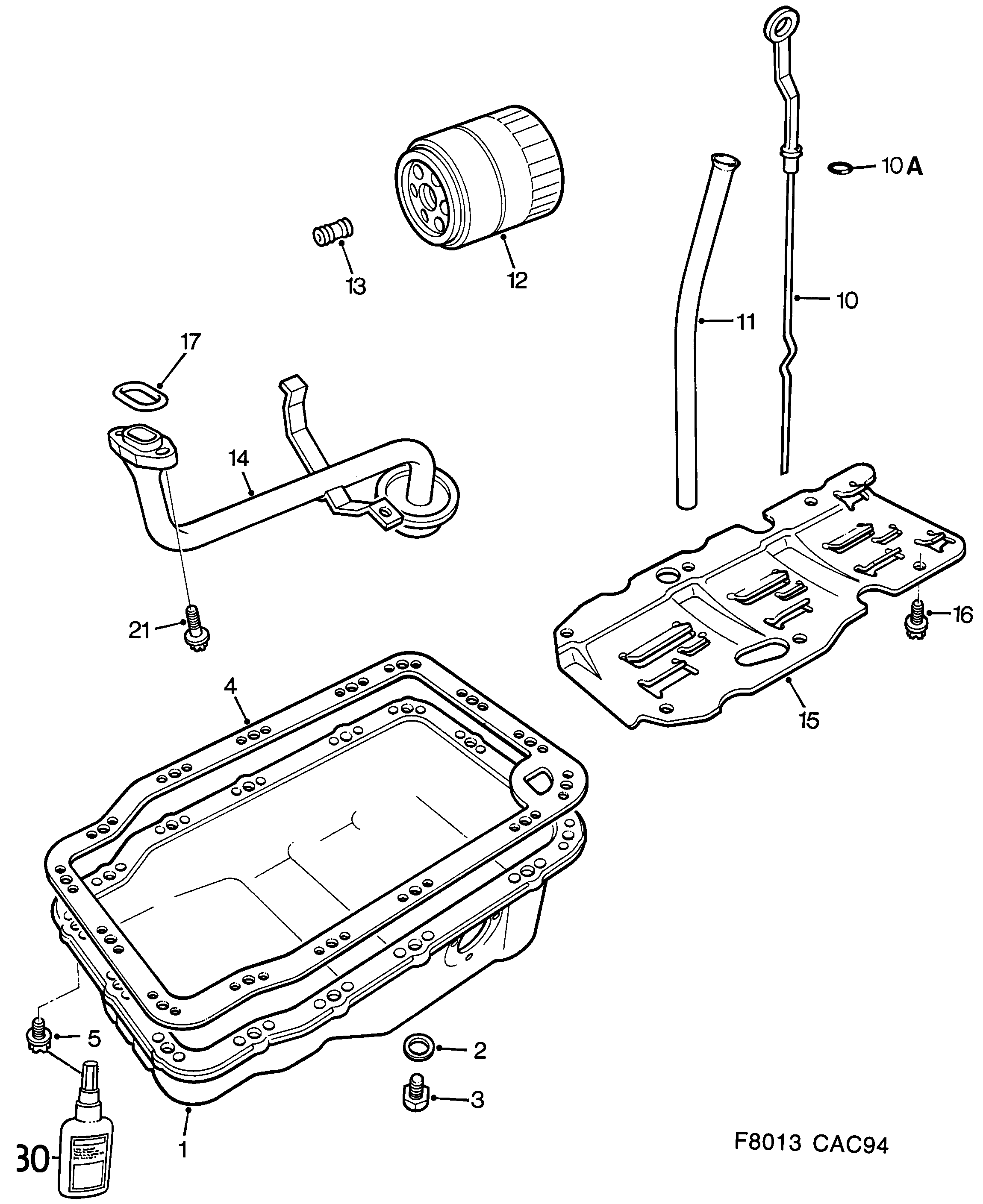

Saab 9000 Oil pan, oil filter 6-cylinder diagram

Pos	Article	Part No.
1	Oil pan	4620027
2	Sealing ring	11016282 (replaces 4345716)
3	Screw plug	90409376 (replaces 4502142)
4	Gasket	90411814 (replaces 4502167)
5	Screw	11093611 (replaces 4501110)
10	Dipstick	4620142
10A	O-ring	90467373 (replaces 4620225)
11	Oil-level tube	4527008
12	Filter	93178952 (replaces 4502696)
13	Junction pipe	90412159 (replaces 4502712)
14	Oil pipe	90411012 (replaces 4502308)
15	Baffle plate	24428044 (replaces 4621074)
16	Screw	11093971 (replaces 4770038)
17	Sealing ring	90411017 (replaces 4502332)
21	Screw	11093872 (replaces 4502274)
21	Screw	11096061 (replaces 4770376)
30	Nut lock	7496268
	Service kit	7496250
