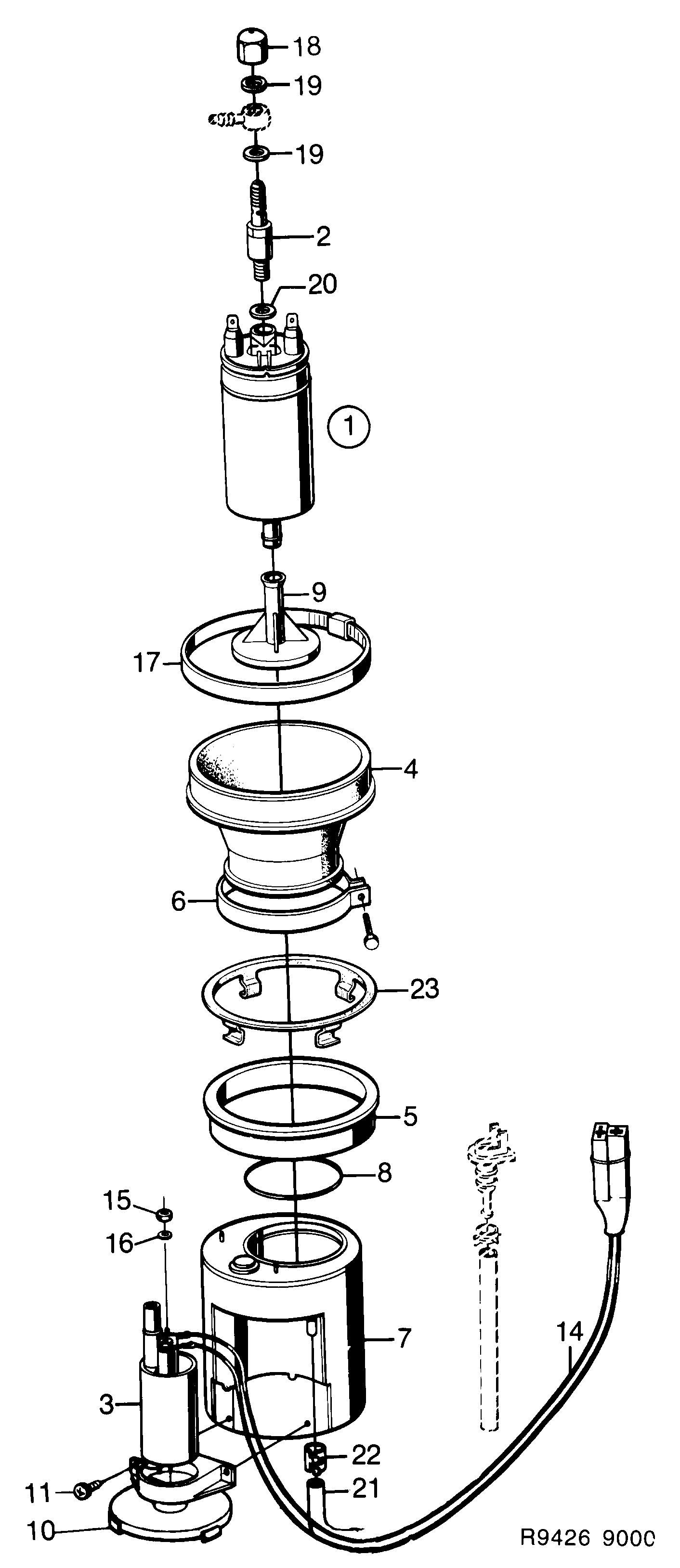

Group 2 Engine, section 610
| Pos | Article | Part No. |
|---|---|---|
| 1 | Fuel pump | 9392911 |
| 1 | Fuel pump | 9393935 |
| 2 | Valve | 8817553 |
| 2 | Valve | 9337510 |
| 3 | Fuel pump | 7526163 |
| 4 | Collar | 9367756 |
| 5 | Support ring | 7591043 (replaces 9389396) |
| 5 | Support ring | 7591043 (replaces 9394016) |
| 5 | Support ring | 7591399 |
| 6 | Hose clamp | 9367731 |
| 7 | Reservoir | 9386798 |
| 8 | O-ring | 9383522 |
| 9 | Strainer | 9383969 |
| 10 | Strainer | 9386491 |
| 11 | Screw | 7973613 |
| 14 | Cable harness | 9363540 |
| 15 | Nut | 7973993 |
| 16 | Washer | 7910516 |
| 17 | Hose clamp | 9331554 |
| 18 | Cap nut | 9361668 |
| 19 | Seal | 8326704 |
| 20 | Washer | 9337528 |
| 21 | Return pipe | 8975484 |
| 22 | Hose clamp | 7973522 |
| 23 | Support ring | 7591043 |
