Saab 9000 1994-1998 Oil pump, oil filter, 4-cylinder

Group 2 Engine, section 600

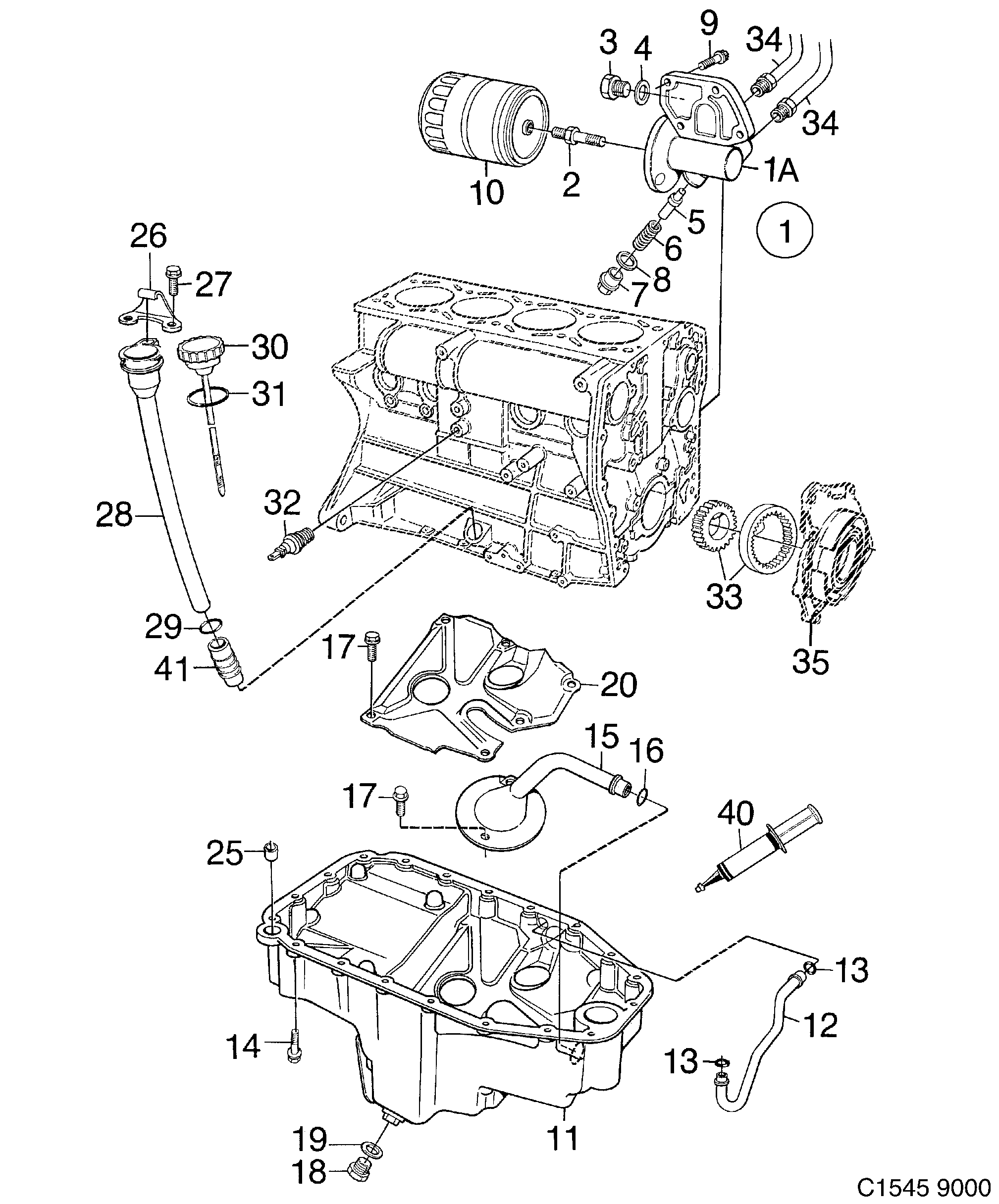

Saab 9000 Oil pump, oil filter, 4-cylinder diagram

Pos	Article	Part No.
1A	Connector	32000422 (replaces 9146622)
1	Connector	9139239
1A	Connector	9139239 (replaces 9138645)
2	Junction pipe	8348609
3	Plug	7563042 (replaces 8123721)
4	Gasket	92150435 (replaces 8124141)
5	Thermostat	30551934 (replaces 9148370)
6	Spring	30551935 (replaces 9148388)
7	Plug	30551936 (replaces 9148396)
8	Seal	11093042 (replaces 9148404)
9	Screw	11900367 (replaces 8059800)
9	Hexagon screw	11900367 (replaces 7978216)
10	Oil filter	93186554 (replaces 9144445)
11	Oil pan	9144023
12	Tube	9130618
12	Tube	9175696
13	O-ring	9137993
14	Screw	92150014 (replaces 4087243)
14	Screw	92150014 (replaces 7978208)
15	Oil pipe	30551956 (replaces 9165564)
16	O-ring	9138009
17	Screw	7971294
18	Plug	9132929
19	Gasket	9132937
20	Protection	30551859 (replaces 9144049)
25	Guide	8346470
26	Bracket	8789638
26	Bracket	9125899 (replaces 8787723)
27	Screw	11900353 (replaces 7978091)
28	Tube	7481617
28	Tube	8787707
29	O-ring	9138108
30	Dipstick	9117466
30	Dipstick	8787731
30	Dipstick	9170630
30	Dipstick	9170655
31	Ring-gland	55557303 (replaces 9361544)
32	Engine oil pressure sensor	30520357 (replaces 9112459)
33	Pump kit	9321936
40	Flange sealant	90297970
41	Nipple	7855950
	Service kit	8819138
	Service kit	7496011
