Saab 9000 1985-1989 Fuel tank

Group 2 Engine, section 580

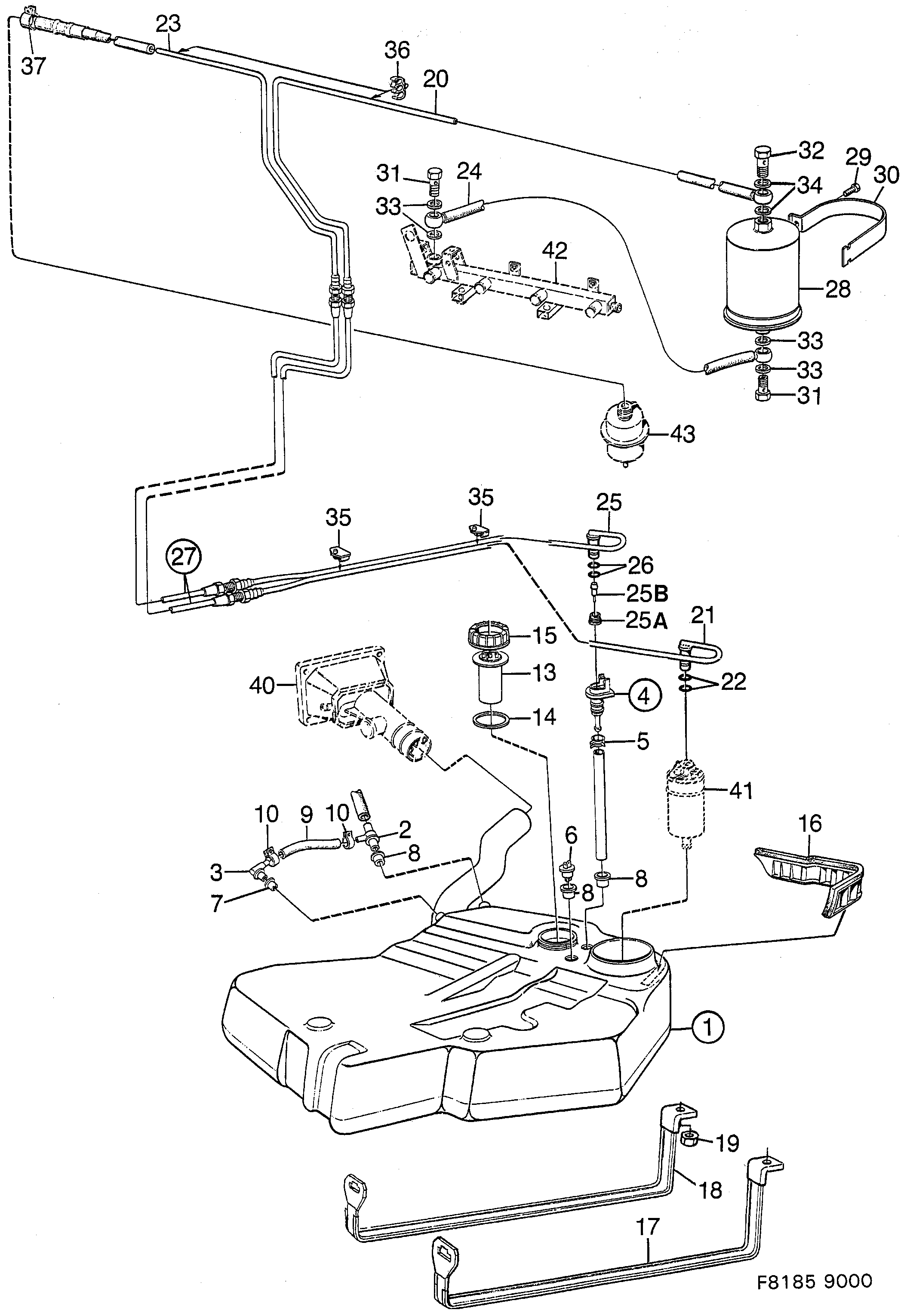

Saab 9000 Fuel tank diagram

Pos	Article	Part No.
1	Tank	9382839
1	Tank	9392895
1	Tank	9393802
1	Tank	9383506
1	Tank	9392903
1	Tank	9393794
1	Tank	7591324
1	Tank	7591332
2	Nipple	9393042 (replaces 9387564)
3	Connector	9387598
4	Nipple	9382938
5	Hose clamp	7973605
6	Connector	9393810
7	Bushing	8325656
8	Bushing	9324021
9	Hose	9363268
9	Hose	8981615
10	Hose clamp	8332587
13	Fuel transmitter	9390451
13	Fuel transmitter	9390832
14	Gasket	9368846
14	Gasket	9392689
15	Nut	9393950
16	Support	9388034
17	Tie strap	9382789
17	Tie strap	30519739 (replaces 8975153)
18	Tie strap	9382771
19	Nut	92150143 (replaces 7971922)
20	Fuel pipe	9388430
20	Fuel pipe	9394669
20	Fuel pipe	8975104
21	Fuel pipe	9388448
21	Fuel pipe	7591266
22	O-ring	7974546 (replaces 9384280)
22	O-ring	7974546
23	Fuel pipe	9388455
23	Fuel pipe	7591878
24	Fuel pipe	9393513
24	Fuel pipe	7591852
25	Fuel pipe	9388463
25	Fuel pipe	7591274
25A	Check valve	8977779
25B	Valve peg	8977761
27	Tube	8978934
28	Fuel filter	4163853 (replaces 9333790)
29	Screw	7974553
29	Screw	92153149 (replaces 7975774)
30	Tie strap	9384777
30	Tie strap	9393331
31	Banjo bolt	12794638 (replaces 8319915)
32	Banjo bolt	12773569 (replaces 8322927)
33	Seal	8326704
33	Seal	4443883 (replaces 8977373)
33	Seal	4443883 (replaces 8981979)
34	Seal	4161162 (replaces 8981961)
35	Clamp	9382870
35	Clamp	8978827
36	Clamp	9387713
