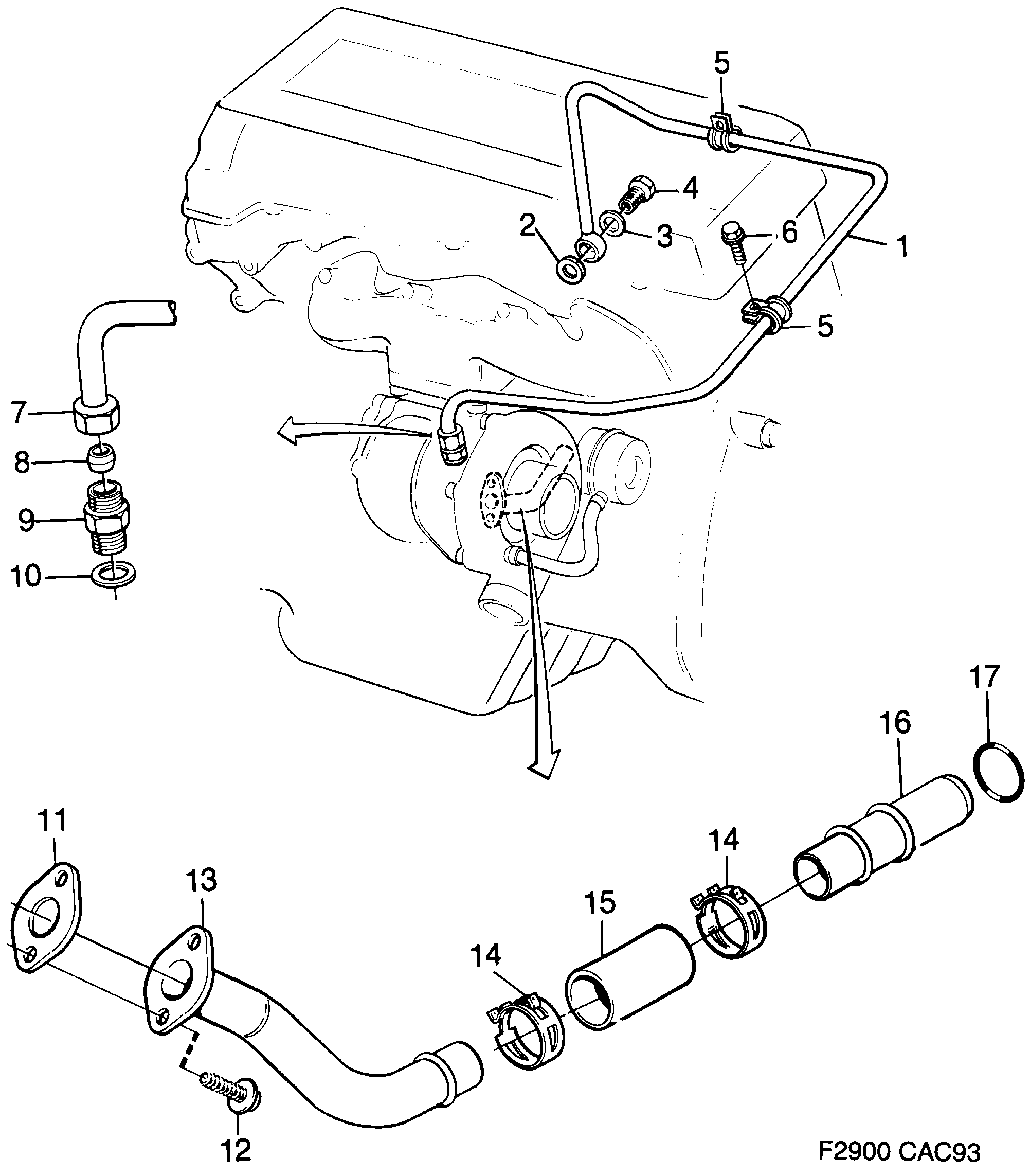

Group 2 Engine, section 560
| Pos | Article | Part No. |
|---|---|---|
| 1 | Tube | 9138728 (replaces 9107566) |
| 1 | Tube | 9138728 |
| 1 | Tube | 9138769 |
| 2 | Seal | 4161162 (replaces 8326712) |
| 3 | Gasket | 92150435 (replaces 8124141) |
| 4 | Banjo screw | 92150977 (replaces 8123903) |
| 5 | Clamp | 7985112 |
| 6 | Screw | 7975451 |
| 7 | Fitting nut | 8145534 |
| 8 | Ferrule | 8132219 |
| 9 | Nipple | 8131963 |
| 10 | Gasket | 11066422 (replaces 8124133) |
| 11 | Gasket | 9114075 |
| 11 | Gasket | 55563093 (replaces 9107582) |
| 12 | Screw | 8125163 |
| 12 | Screw | 7985930 (replaces 8125015) |
| 13 | Tube | 9114018 |
| 13 | Tube | 9125642 |
| 13 | Tube | 9168204 |
| 14 | Clamp | 7586050 |
| 15 | Hose | 9114042 |
| 15 | Hose | 9133489 |
| 16 | Tube | 9114059 |
| 17 | O-ring | 7502263 |
