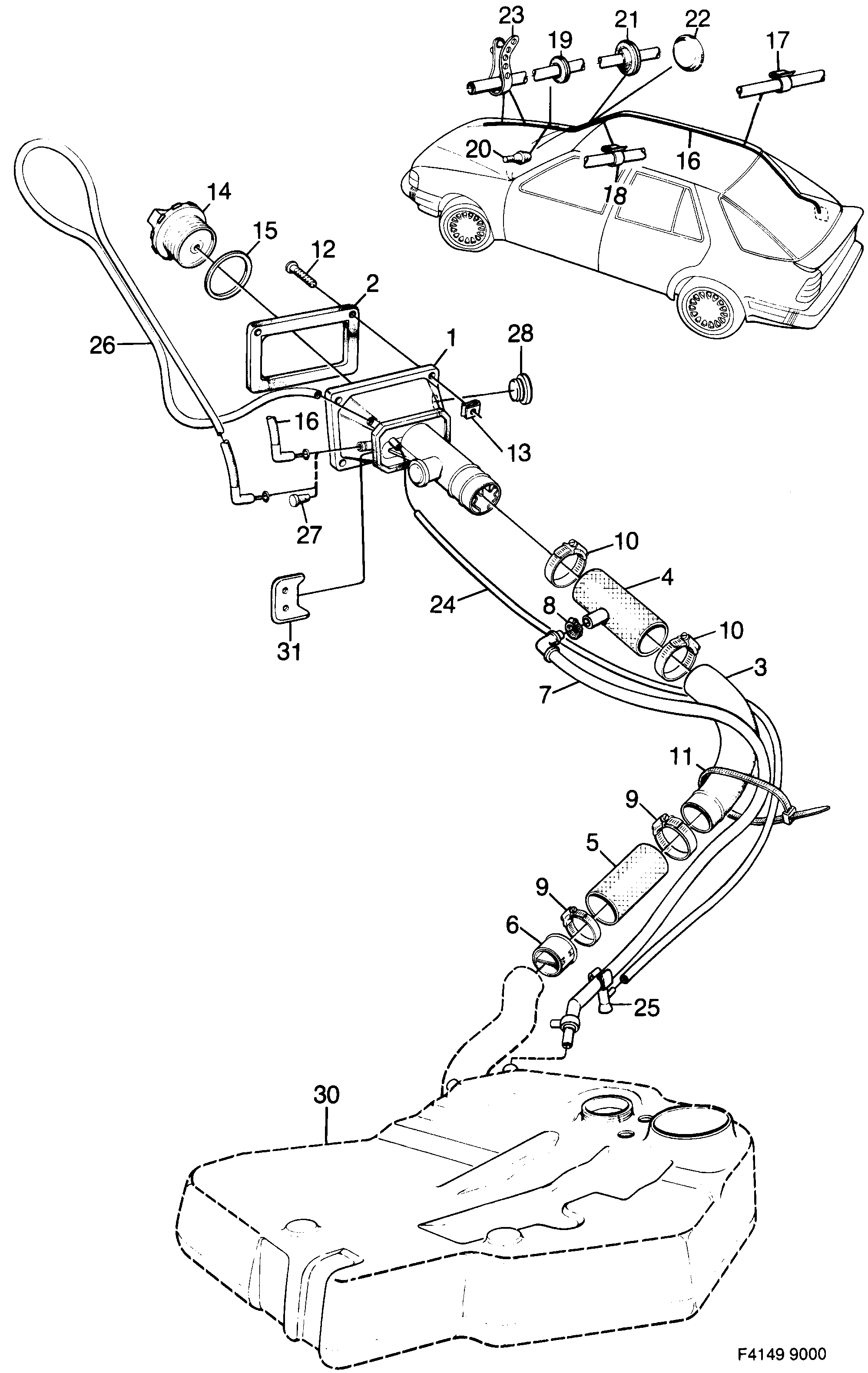

Group 2 Engine, section 550
| Pos | Article | Part No. |
|---|---|---|
| 1 | Filler pipe | 8982225 |
| 1 | Filler pipe | 8981813 |
| 1 | Filler pipe | 8982191 |
| 1 | Filler pipe | 8981680 |
| 2 | Dust seal | 9387002 |
| 3 | Filler pipe | 9384033 |
| 3 | Filler pipe | 9393034 |
| 3 | Filler pipe | 8980500 |
| 4 | Hose | 9384041 |
| 4 | Hose | 9392200 |
| 5 | Hose | 9393315 |
| 6 | Check valve | 9387887 |
| 7 | Hose | 9382961 |
| 7 | Tube | 8981607 |
| 8 | Hose clamp | 7970072 (replaces 9387341) |
| 9 | Hose clamp | 92153077 (replaces 7970130) |
| 10 | Hose clamp | 92153079 (replaces 7970148) |
| 11 | Tie strap | 11900513 (replaces 7971880) |
| 12 | Screw | 92150118 (replaces 7970536) |
| 13 | Clip | 8315467 |
| 13 | Nut | 8978371 |
| 14 | Filler cap | 4391058 (replaces 8982209) |
| 15 | Gasket | 7511751 |
| 16 | Tube | 9383035 |
| 16 | Tube | 4015764 |
| 17 | Clamp | 12755295 (replaces 9383043) |
| 18 | Clamp | 9383050 |
| 19 | Bushing | 7961337 |
| 20 | Plug | 7038342 |
| 21 | Grommet | 9387903 |
| 22 | Plug | 7155708 |
| 23 | Tie strap | 9392606 |
| 24 | Hose | 9394867 |
| 25 | Funnel | 9394875 |
| 26 | Tube | 9393299 |
| 27 | Plastic plug | 7536840 |
| 28 | Plug | 7163066 |
