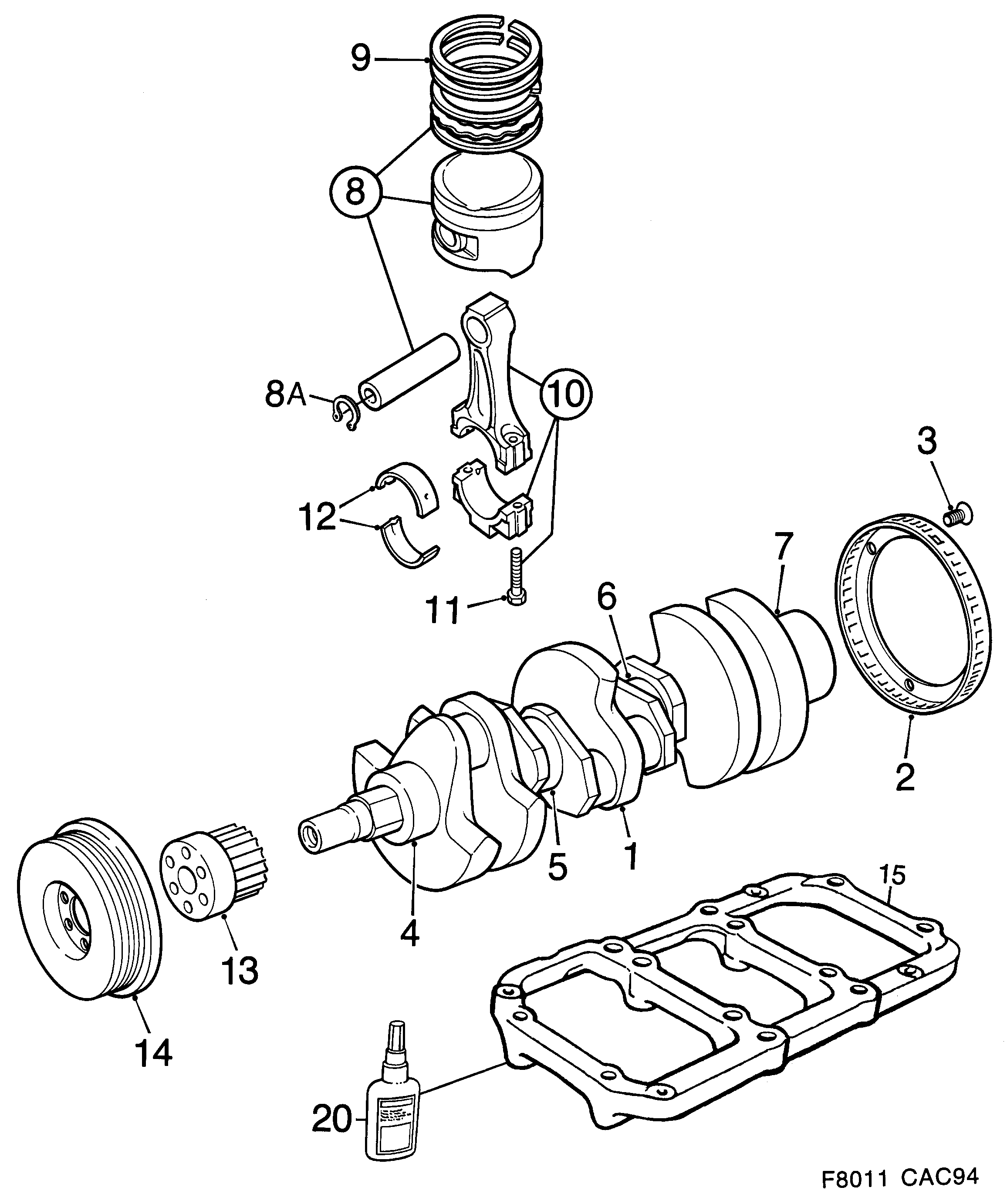

Group 2 Engine, section 540
| Pos | Article | Part No. |
|---|---|---|
| 1 | Crankshaft | 90509018 (replaces 4770236) |
| 4 | Main bearing | 90444001 (replaces 9321977) |
| 4 | Main bearing | 90444002 (replaces 9321985) |
| 4 | Main bearing | 90444005 (replaces 9321993) |
| 5 | Main bearing | 9117252 (replaces 8821779) |
| 5 | Main bearing | 9117255 (replaces 8821787) |
| 5 | Main bearing | 9117256 (replaces 8821795) |
| 6 | Main bearing | 9117252 (replaces 8821829) |
| 6 | Main bearing | 9117255 |
| 6 | Main bearing | 9117256 (replaces 8821845) |
| 7 | Main bearing | 90444006 (replaces 8821720) |
| 7 | Main bearing | 90444007 (replaces 8821738) |
| 7 | Main bearing | 8821746 |
| 8 | Piston | 90467325 |
| 8 | Piston | 90467326 |
| 8 | Piston | 90467327 |
| 8 | Piston | 90467328 |
| 8 | Piston | 90467329 |
| 8 | Piston | 90467330 |
| 8A | Lock ring | 90501450 (replaces 9179292) |
| 9 | Piston ring kit | 8822413 |
| Compression ring | 90423082 (replaces 4620951) | |
| Compression ring | 90351658 (replaces 4620977) | |
| 9 | Piston ring kit | 8822421 |
| Compression ring | 8822454 | |
| Compression ring | 8822462 | |
| 10 | Connecting rod kit | 8822496 |
| 11 | Screw | 90467192 (replaces 4501789) |
| 12 | Big end bearing kit | 90487297 (replaces 8822504) |
| 12 | Big end bearing kit | 90487298 (replaces 8822512) |
| 12 | Big end bearing kit | 90509728 (replaces 8822520) |
| 15 | Bearing carrier | 24427917 (replaces 4620019) |
| 20 | Nut lock | 7496268 |
