Saab 9000 1990-1993 Oil pipe

Group 2 Engine, section 530

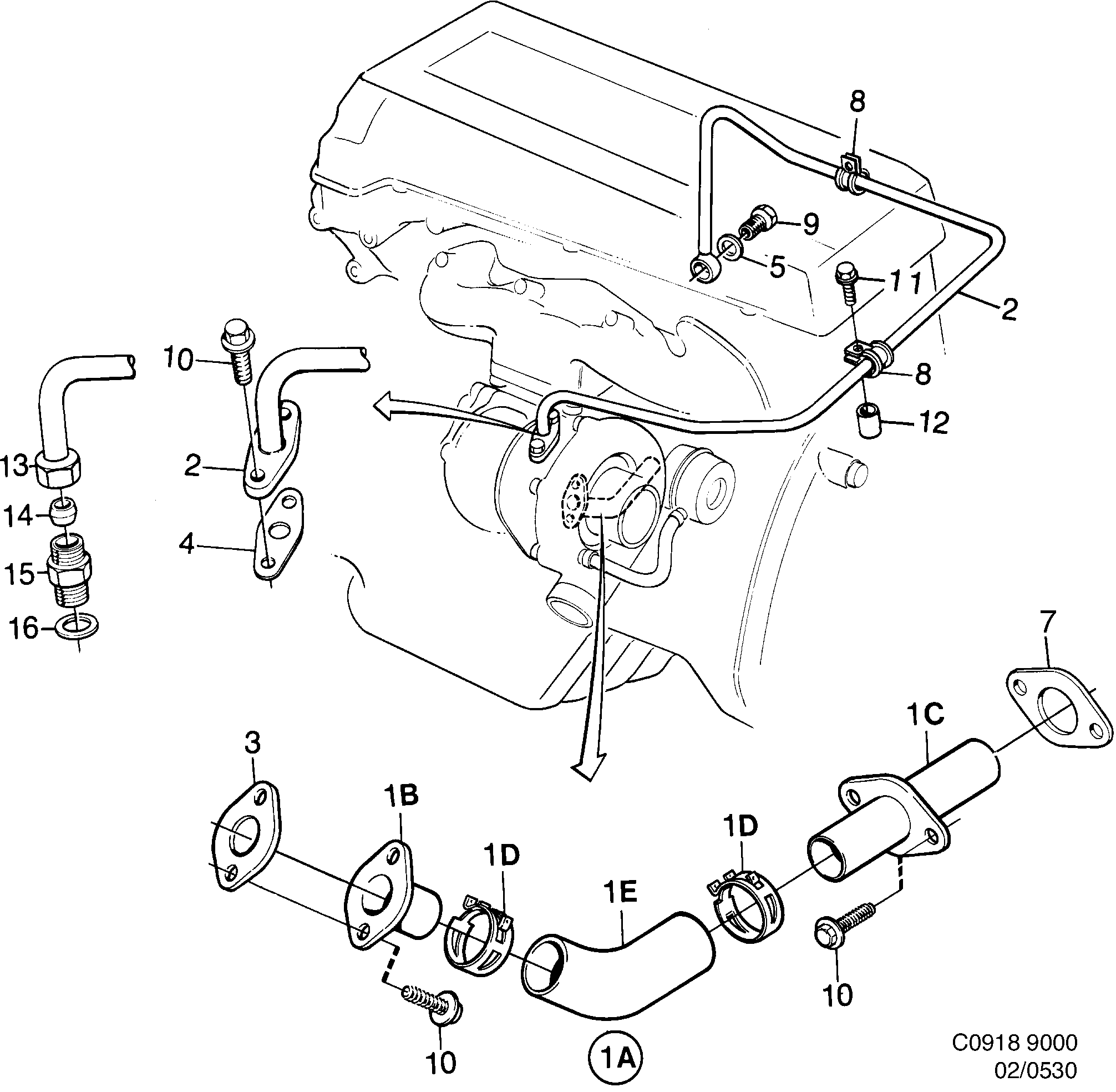

Saab 9000 Oil pipe diagram

Pos	Article	Part No.
1A	Oil pipe	7480932
1B	Tube	7481062
1C	Tube	7481088
1D	Clamp	7586050
1E	Hose	9118506
1B	Tube	9114406
1C	Tube	9114414
1D	Spring clamp	8787061
1E	Hose	9114521
2	Tube	7585011
2	Tube	30520399 (replaces 9114505)
3	Gasket	7518970
3	Gasket	9117599
4	Gasket	7507700
5	Gasket	92150435 (replaces 8124141)
7	Gasket	7566474
8	Clamp	1754506
8	Clamp	7985112
9	Banjo screw	92150977 (replaces 8123903)
10	Screw	8125163
11	Screw	7970288
11	Screw	7528953 (replaces 7971757)
12	Spacer	9390121
13	Fitting nut	8145534
14	Ferrule	8132219
15	Nipple	8131963
16	Gasket	11066422 (replaces 8124133)
