Saab 9000 1990-1993 Oil pump, oil filter,

Group 2 Engine, section 500

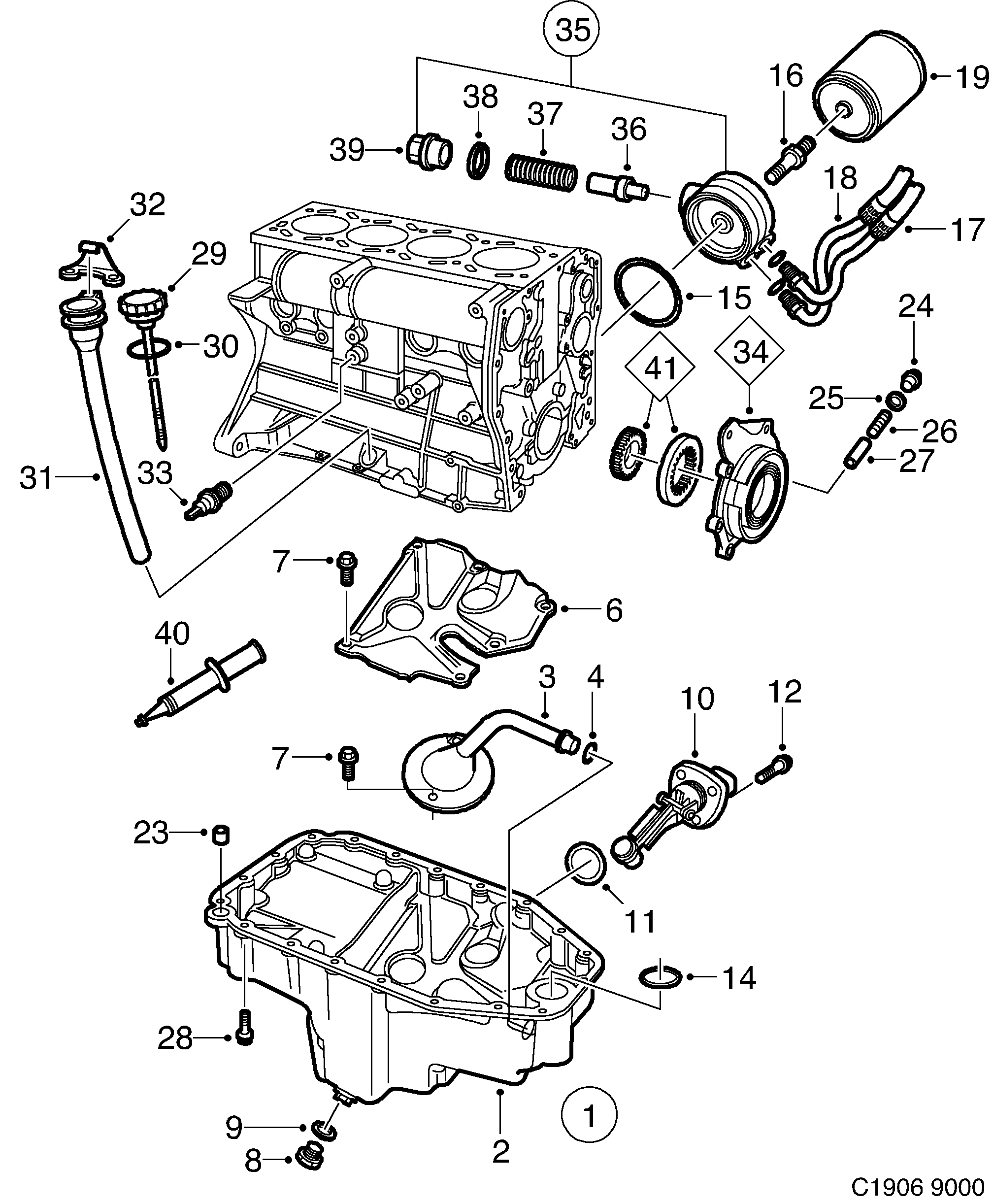

Saab 9000 Oil pump, oil filter, diagram

Pos	Article	Part No.
1	Oil pan	30592121 (replaces 9144056)
2	Oil pan	9115015
3	Tube	9109901
3	Tube	9126731
4	O-ring	9138009 (replaces 2196772)
4	O-ring	9138009
6	Protection	9118480
7	Screw	7985930 (replaces 8125015)
8	Plug	7563042
8	Plug	9132929
9	Gasket	7522709
9	Gasket	9132937
10	Sensor	93167188 (replaces 9390154)
11	O-ring	7970361
12	Screw	7974694 (replaces 8125031)
14	O-ring	30544348 (replaces 8109688)
14	O-ring	30544348 (replaces 9138017)
15	O-ring	8047128
16	Junction pipe	8348609
16	Junction pipe	9113267
16	Junction pipe	9139866
19	Filter	93186554 (replaces 9309576)
23	Guide	8346470
24	Plug	7508955
25	Gasket	9355389
26	Spring	9309998
27	Piston	9109067
28	Screw	8125189
29	Dipstick	9117466
29	Dipstick	8787731
30	Ring-gland	55557303 (replaces 9361544)
31	Tube	7481617
31	Tube	8787707
32	Bracket	8789638 (replaces 9113275)
32	Bracket	8789638
32	Bracket	9125899 (replaces 8787723)
33	Engine oil pressure sensor	30520357 (replaces 9112459)
35	Connector	9115296
36	Thermostat	55557392 (replaces 9301540)
37	Spring	9300591
38	Gasket	30520353 (replaces 9109182)
39	Plug	7520372
40	Flange sealant	90297970
41	Pump kit	8817561
41	Pump kit	9321779
	Service kit	8819138
	Service kit	7496011
