Saab 9000 1990-1993 Oil pump, oil filter,

Group 2 Engine, section 470

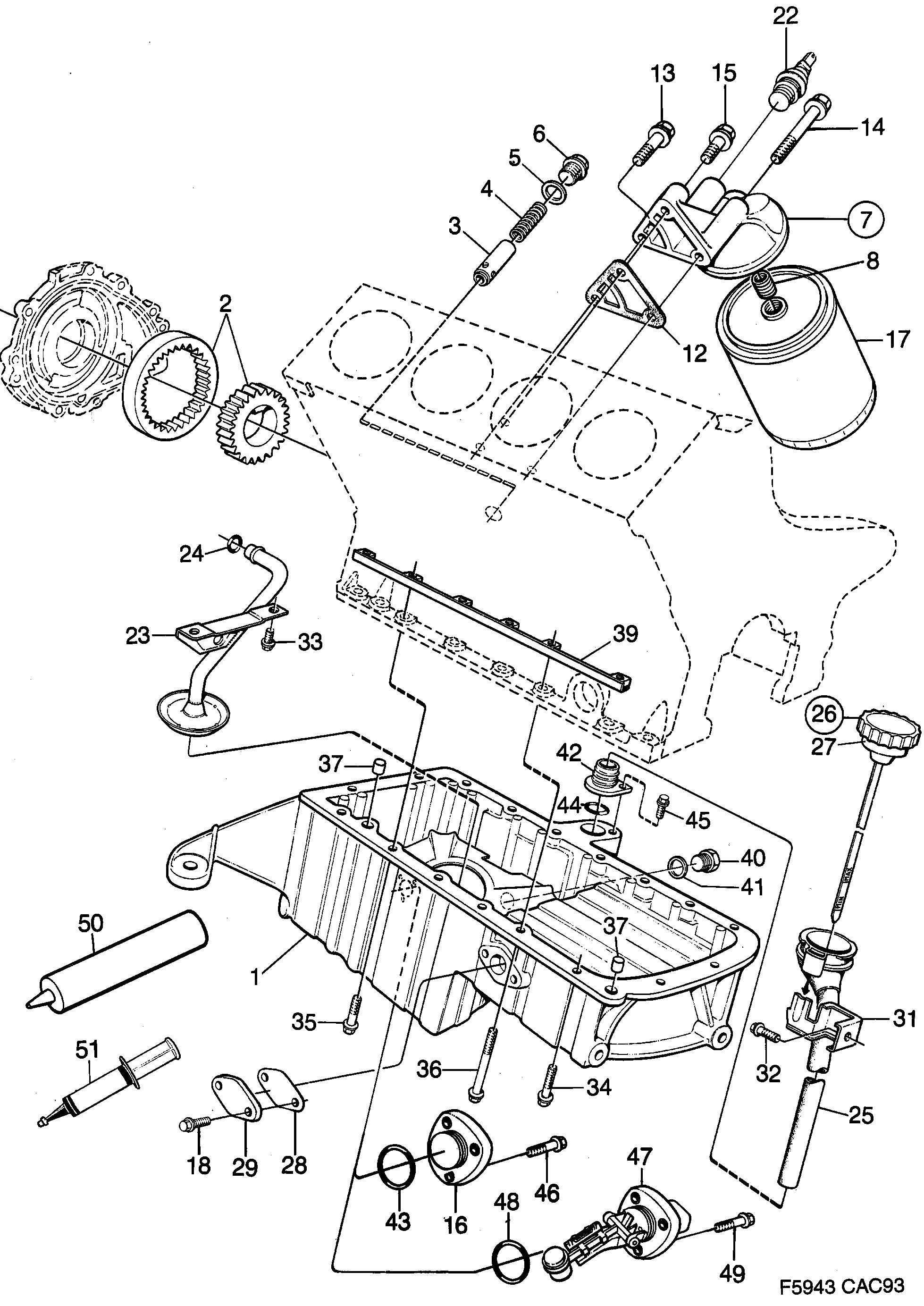

Saab 9000 Oil pump, oil filter, diagram

Pos	Article	Part No.
1	Oil pan	30540514 (replaces 9117029)
1	Oil pan	30540514 (replaces 9133158)
2	Pump kit	8817561
2	Pump kit	9321779
3	Piston	7508708
4	Spring	9309998
5	Gasket	9355389
6	Plug	7508955
7	Connector	7560105
8	Junction pipe	8348609
12	Gasket	7566433
13	Screw	8125254
14	Screw	8125304
15	Screw	55561609 (replaces 8125221)
16	Cover	7523822
17	Filter	93186554 (replaces 9309576)
18	Screw	8125163
22	Engine oil pressure sensor	30520357 (replaces 9112459)
23	Oil pipe	9127069
24	O-ring	9146598 (replaces 7972698)
25	Tube	9388794
26	Dipstick	9391467
27	Ring-gland	55557303 (replaces 9361544)
28	Gasket	7566474
29	Flange	7501430
31	Bracket	8976516
32	Screw	55562121 (replaces 7967938)
33	Screw	2961357
33	Screw	9166414
34	Screw	8125189
35	Screw	8125205
36	Screw	8125262
37	Sleeve	7484934
39	Bracket	7501398
40	Plug	7563042
40	Plug	9132929
41	Gasket	7522709
41	Gasket	9132937
42	Nipple	8856833
42	Nipple	4391959
43	O-ring	7970361
45	Screw	7974694 (replaces 8125031)
46	Screw	8125023
47	Sensor	93167188 (replaces 9390154)
48	O-ring	7970361 (replaces 7971997)
49	Screw	7974694
50	Flange sealant	93165267 (replaces 8781841)
51	Flange sealant	90297970
	Service kit	8819864
	Service kit	9321746
