Saab 9000 1990-1993 Oil pump, oil filter,

Group 2 Engine, section 440

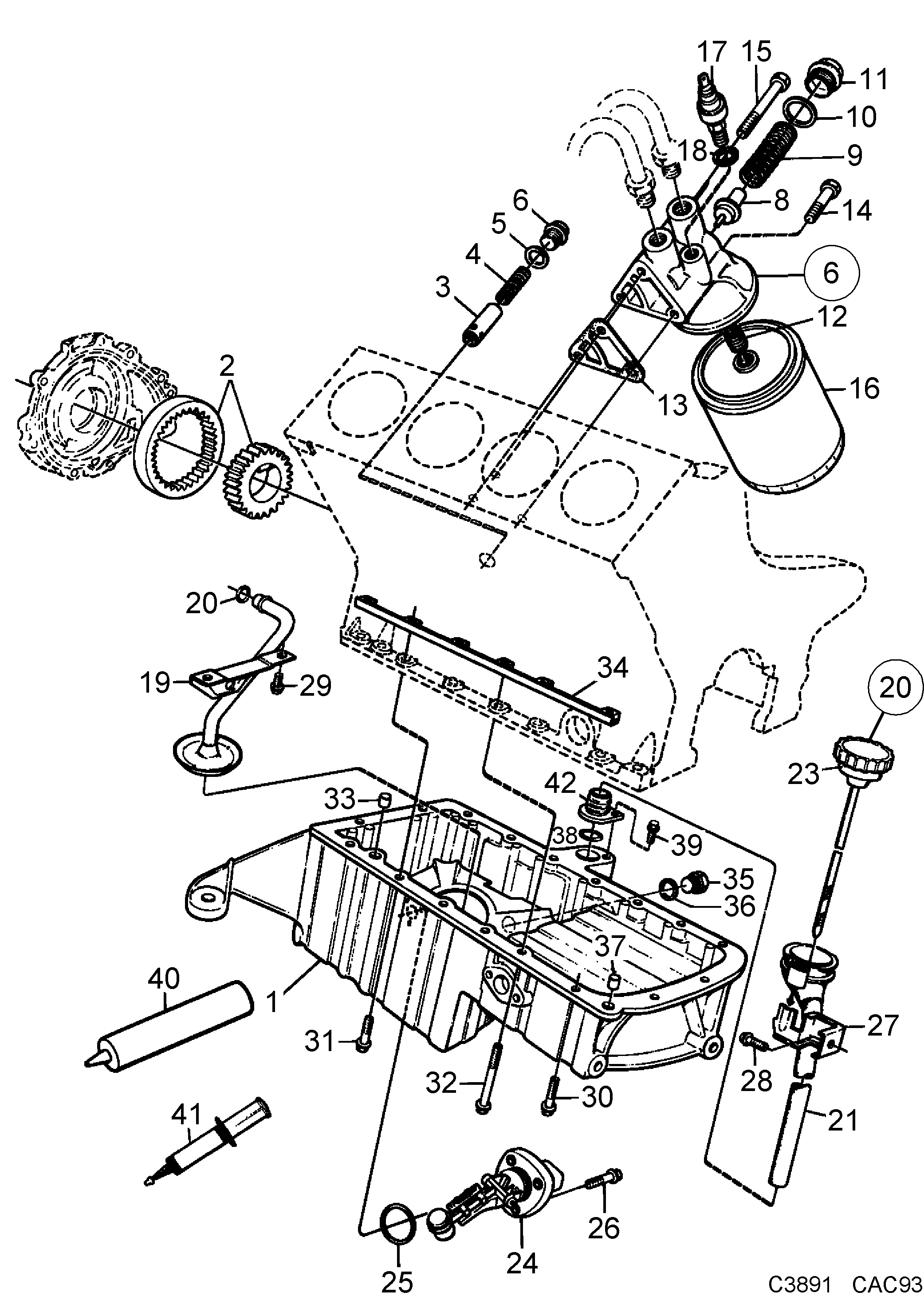

Saab 9000 Oil pump, oil filter, diagram

Pos	Article	Part No.
1	Oil pan	30540514 (replaces 9117029)
1	Oil pan	30540514 (replaces 9133158)
2	Pump kit	8817561
2	Pump kit	9321779
3	Piston	7508708
4	Spring	9309998
5	Gasket	9355389
6	Plug	7508955
7	Connector	7560139
8	Thermostat	55557392 (replaces 9301540)
9	Spring	9300591
10	Gasket	30520353 (replaces 9109182)
11	Plug	7520372
12	Junction pipe	8348609
13	Gasket	7566433
14	Screw	8125254
15	Screw	8125304
16	Filter	93186554 (replaces 9309576)
17	Engine oil pressure sensor	30520357 (replaces 9112459)
18	Gasket	30520353 (replaces 8124216)
19	Oil pipe	9127069
20	O-ring	9146598 (replaces 7972698)
21	Tube	9388794
22	Dipstick	9391467
23	Ring-gland	55557303 (replaces 9361544)
24	Sensor	93167188 (replaces 9390154)
25	O-ring	7970361
26	Screw	8125023
27	Bracket	9388232
28	Screw	55562121 (replaces 7967938)
29	Screw	2961357
29	Screw	9166414
30	Screw	8125189
31	Screw	8125205
32	Screw	8125262
33	Sleeve	7484934
34	Bracket	7501398
35	Plug	7563042
35	Plug	9132929
36	Gasket	7522709
36	Gasket	9132937
38	O-ring	7970361 (replaces 8046625)
39	Screw	7974694 (replaces 8125031)
40	Flange sealant	93165267 (replaces 8781841)
41	Flange sealant	90297970
42	Nipple	8856833
42	Nipple	4391959
	Service kit	8817686
	Service kit	8819138
