Saab 9000 1990-1993 Crankshaft Piston

Group 2 Engine, section 410

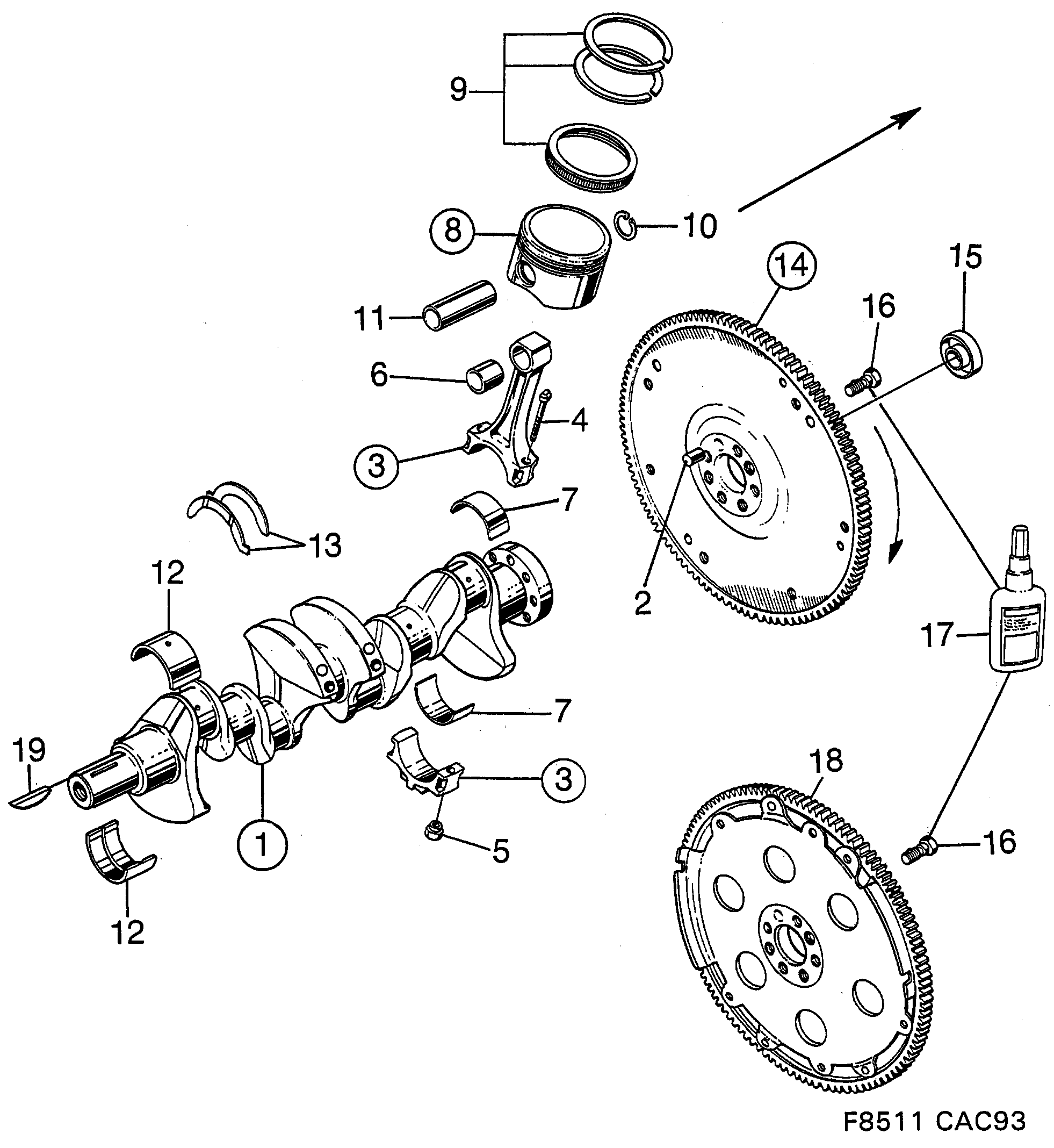

Saab 9000 Crankshaft Piston diagram

Pos	Article	Part No.
1	Crankshaft	9116310
2	Pin	8034928
3	Connecting rod kit	5959010
4	Screw	7480643
5	Nut	7480684
6	Bushing	8347676
6	Bushing	9136946
7	Con.bearing	8347650
7	Con.bearing	8355349
7	Con.bearing	8349938
7	Con.bearing	8355356
7	Con.bearing	8349946
7	Con.bearing	8355364
7	Con.bearing	8349953
7	Con.bearing	8349961
8	Piston	8859357
8	Piston	8859365
8	Piston	8859373
8	Piston	8859381
8	Piston	8859399
8	Piston	7855828
8	Piston	7855836
8	Piston	7855844
8	Piston	7855851
8	Piston	7855869
8	Piston	9142506
8	Piston	9142514
8	Piston	30549638 (replaces 9142530)
8	Piston	9142555
8	Piston	9142571
9	Piston ring kit	8859134
9	Piston ring kit	8859142
9	Piston ring kit	8859159
9	Piston ring kit	9149105 (replaces 9321506)
9	Piston ring kit	9149113 (replaces 9321514)
9	Piston ring kit	9149121 (replaces 9321522)
9	Piston ring kit	9149105
9	Piston ring kit	9149113
9	Piston ring kit	9149121
10	Lock ring	55557265 (replaces 8859514)
11	Piston pin	7568934
11	Piston pin	93166808
12	Main bearing	9112657
12	Main bearing	32000331 (replaces 9112665)
12	Main bearing	9112673
12	Main bearing	9112681
12	Main bearing	30520413
12	Main bearing	30520414 (replaces 9114901)
13	Thrust washer	7588783
14	Flywheel	7509102
14	Flywheel	30539187
15	Guide ring	7569809
16	Screw	8859191
17	Nut lock	7496292
18	Companion flange	8856965
