Saab 9000 1994-1998 Cylinder head 6-cylinder

Group 2 Engine, section 390

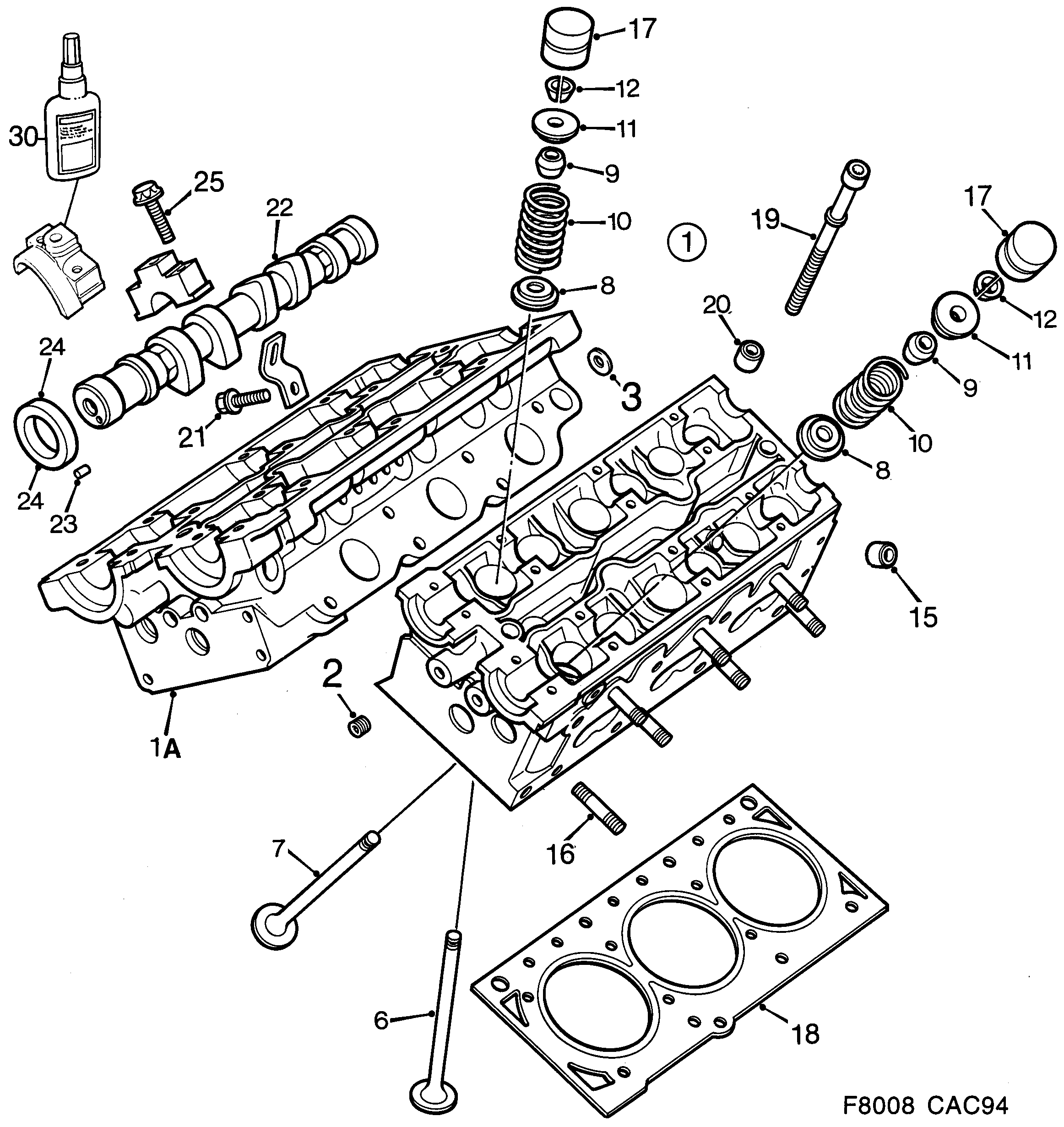

Saab 9000 Cylinder head 6-cylinder diagram

Pos	Article	Part No.
1	Cylinder head	4611190 (replaces 8822660)
1	Cylinder head	4611208 (replaces 8822678)
1A	Cylinder head	4611190 (replaces 4620621)
1A	Cylinder head	4611208 (replaces 4620639)
2	Screw plug	11095512 (replaces 4500195)
3	Sealing washer	90502542 (replaces 4770004)
	Sealing washer	11094191 (replaces 4500781)
	Screw plug	55350692 (replaces 4502290)
6	Inlet valve	90412277 (replaces 4500849)
7	Exhaust valve	90410816 (replaces 4620670)
8	Spring washer	90410740 (replaces 4500880)
9	Seal	90410741 (replaces 4500898)
10	Valve spring	90448050 (replaces 4500906)
11	Valve spring washer	90354649 (replaces 4500914)
12	Valve cone	90354648 (replaces 4500922)
15	Sleeve	90500009 (replaces 4500823)
15	Sleeve	90500009
16	Stud	90106924 (replaces 4500831)
16	Stud	90106924 (replaces 4773370)
17	Tappet	9117903 (replaces 4770301)
18	Gasket	4773453 (replaces 4770285)
18	Gasket	4773453
19	Screw	90466480 (replaces 4501060)
20	Screw	11093601 (replaces 4346854)
21	Screw	11093611 (replaces 4501110)
22	Camshaft	90540002 (replaces 4770327)
22	Camshaft	90540002 (replaces 4770343)
22	Camshaft	90540003 (replaces 4770335)
22	Camshaft	90540003 (replaces 4770350)
23	Sleeve	90501111 (replaces 4621314)
24	Sealing ring	90298390 (replaces 4503983)
25	Screw	11093782 (replaces 4500732)
30	Nut lock	7496268
