Saab 9000 1990-1993 Crankshaft Piston

Group 2 Engine, section 380

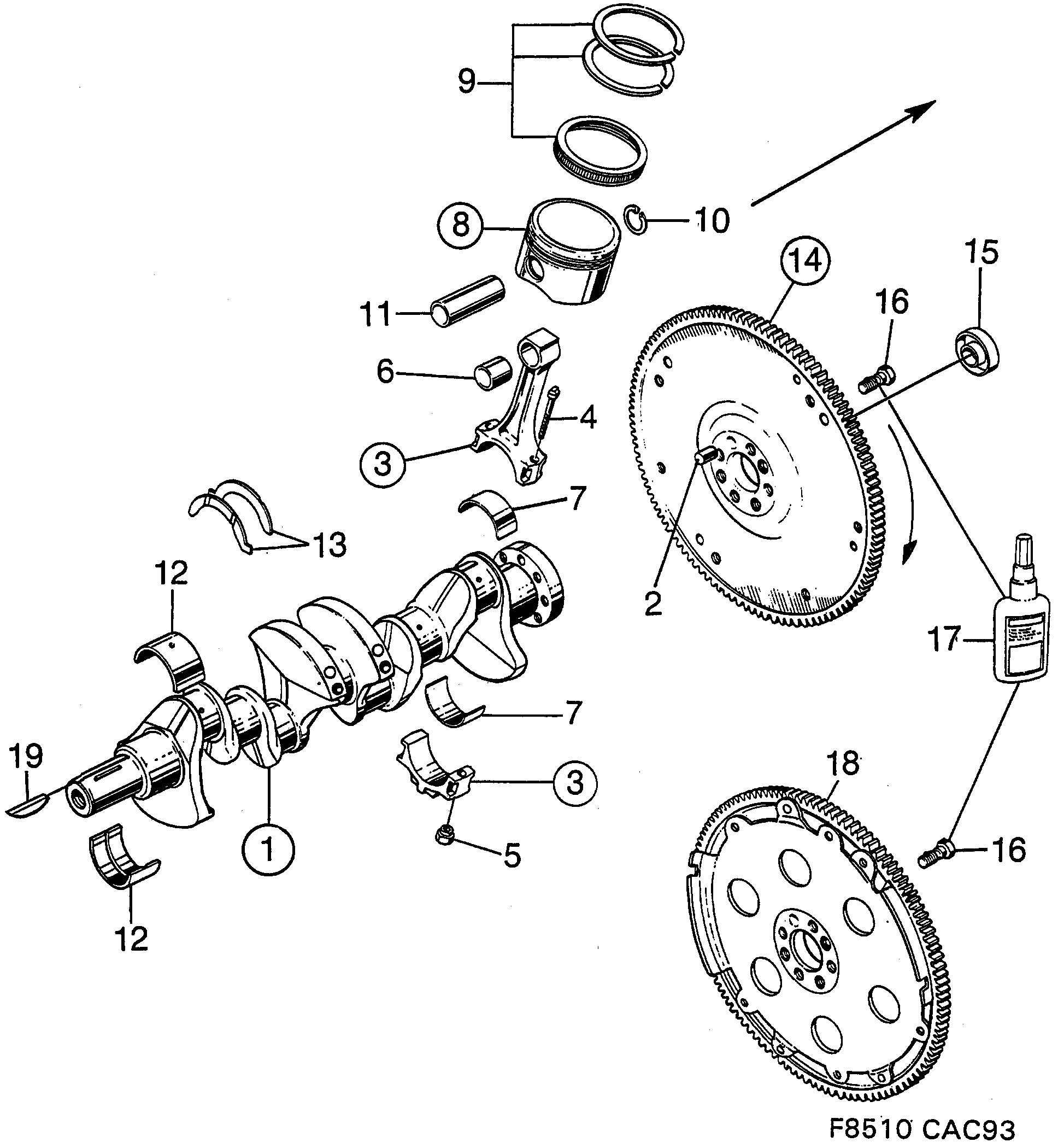

Saab 9000 Crankshaft Piston diagram

Pos	Article	Part No.
1	Crankshaft	9321589
	Crankshaft	8787228
	Spacer	7856172
	Screw	9116443
	Key	30520452 (replaces 9116864)
2	Pin	8034928
3	Connecting rod	4611182 (replaces 7562259)
4	Screw	7521255
5	Nut	7562275
6	Bushing	8347676
7	Con.bearing	8347650
7	Con.bearing	8355349
7	Con.bearing	8349938
7	Con.bearing	8355356
7	Con.bearing	8349946
7	Con.bearing	8355364
8	Piston	7520927
8	Piston	7524895
8	Piston	9115841
8	Piston	7520935
8	Piston	7524903
8	Piston	9115858
8	Piston	7520943
8	Piston	7524911
8	Piston	30520430 (replaces 9115866)
8	Piston	7520950
8	Piston	7524929
8	Piston	7524929 (replaces 9115874)
8	Piston	7520968
8	Piston	7524937
8	Piston	9115882
9	Piston ring kit	7520513
9	Piston ring kit	7520521
9	Piston ring kit	7520539
10	Lock ring	8347577
11	Piston pin	8346983
11	Piston pin	93166808
12	Main bearing	8350936
12	Main bearing	8355315
12	Main bearing	8350977
12	Main bearing	8355323
12	Main bearing	8350985
12	Main bearing	8355331
13	Thrust washer	8347270
14	Flywheel	7521610
14	Flywheel	7509102
15	Guide ring	7569809
16	Screw	8859191
17	Nut lock	7496292
18	Companion flange	8856965
