Saab 9000 1985-1989 Oil pipe

Group 2 Engine, section 370

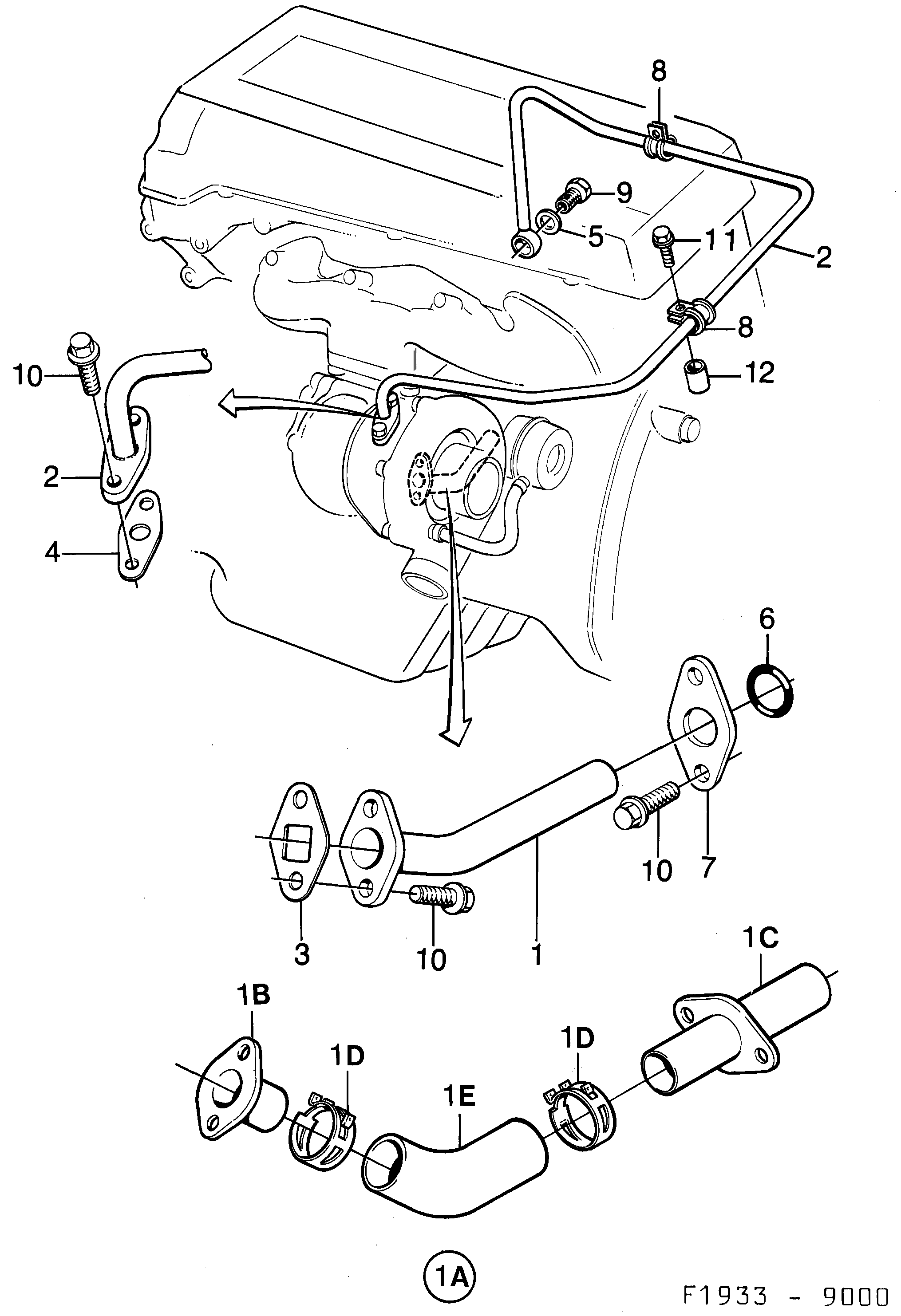

Saab 9000 Oil pipe diagram

Pos	Article	Part No.
1	Oil pipe	7566623
1A	Oil pipe	7480932
1B	Tube	7481062
1C	Tube	7481088
1D	Clamp	7586050
1E	Hose	9118506
2	Tube	7584998
2	Tube	7567910
2	Tube	7585011
3	Gasket	7518970
4	Gasket	7507700
5	Gasket	92150435 (replaces 8124141)
6	O-ring	3489937
6	O-ring	7502263
7	Flange	7517741
7	Flange	7568512
7	Gasket	7566474
8	Clamp	1754506
9	Banjo screw	92150977 (replaces 8123903)
10	Screw	8125163
11	Screw	7970288
11	Screw	7528953 (replaces 7971757)
12	Spacer	9390121
