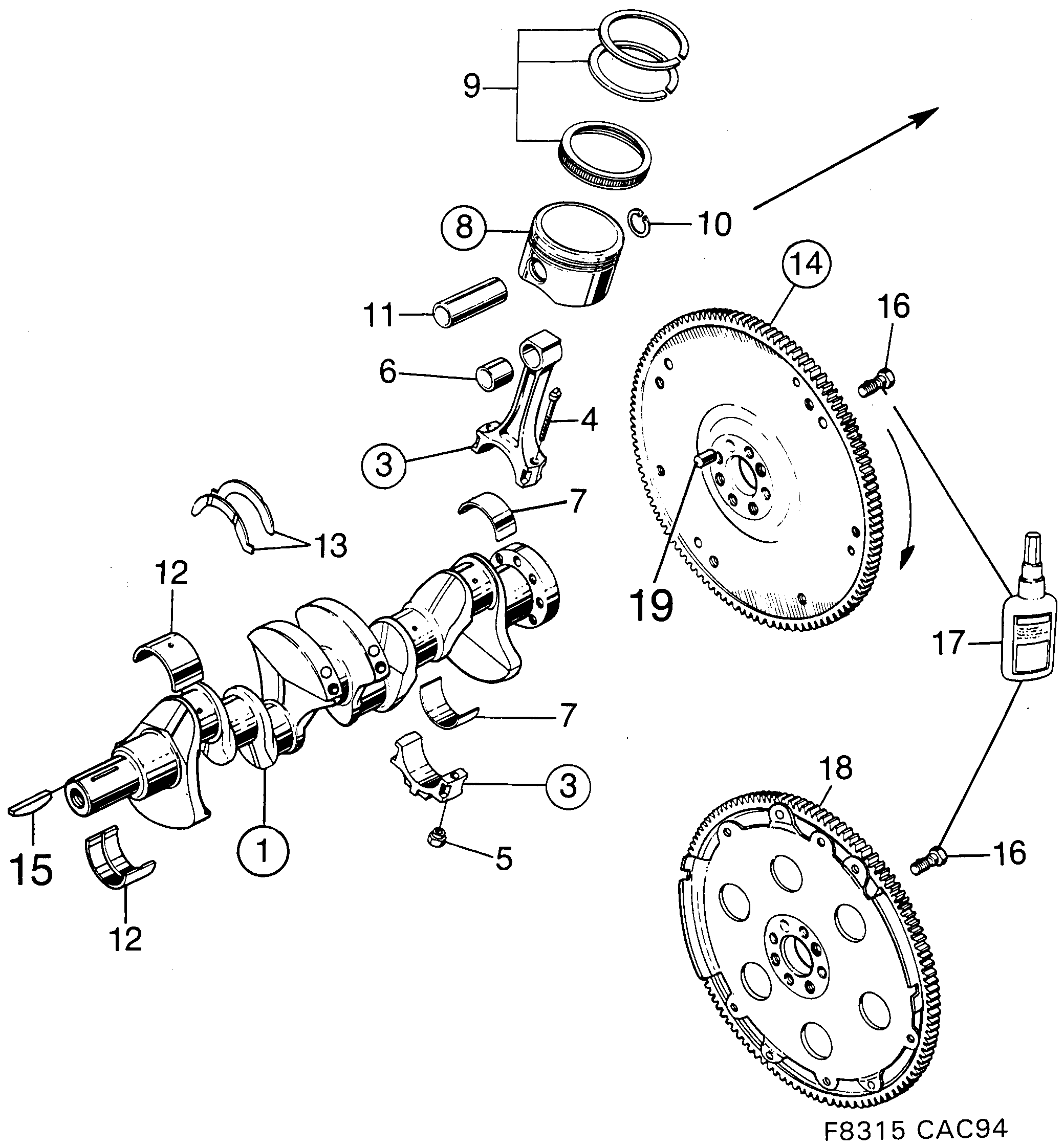

Group 2 Engine, section 360
| Pos | Article | Part No. |
|---|---|---|
| 1 | Crankshaft | 9139460 |
| 3 | Connecting rod kit | 5959028 |
| 3 | Connecting rod kit | 5959010 |
| 4 | Screw | 7480643 |
| 5 | Nut | 7480684 |
| 6 | Bushing | 9136946 |
| 7 | Con.bearing | 55557370 (replaces 9145459) |
| 7 | Con.bearing | 30551894 (replaces 9145467) |
| 7 | Con.bearing | 30551895 (replaces 9145475) |
| 8 | Piston | 9149360 |
| 8 | Piston | 9149378 |
| 8 | Piston | 9149386 |
| 8 | Piston | 9149394 |
| 8 | Piston | 9149402 |
| 8 | Piston | 9149436 |
| 8 | Piston | 9149444 |
| 8 | Piston | 9149451 |
| 8 | Piston | 9149469 |
| 9 | Piston ring kit | 9149105 |
| 9 | Piston ring kit | 9149113 |
| 9 | Piston ring kit | 9149121 |
| 9 | Piston ring kit | 9149105 (replaces 9167776) |
| 9 | Piston ring kit | 9149113 (replaces 9167891) |
| 10 | Lock ring | 55557265 (replaces 8859514) |
| 11 | Piston pin | 7568934 |
| 11 | Piston pin | 93166808 |
| 12 | Main bearing | 55557369 (replaces 9145418) |
| 12 | Main bearing | 30551891 (replaces 9145426) |
| 12 | Main bearing | 30551892 (replaces 9145434) |
| 13 | Thrust washer | 7588783 |
| 14 | Flywheel | 9176991 (replaces 9143454) |
| 14 | Flywheel | 9176991 (replaces 9143918) |
| 14 | Flywheel | 9177007 |
| 16 | Screw | 30551806 (replaces 9131160) |
| 17 | Nut lock | 7496292 |
| 18 | Companion flange | 30551919 (replaces 9146788) |
| 19 | Pin | 30558708 (replaces 9145590) |
