Saab 9000 1985-1989 Oil pump, oil filter, engine

Group 2 Engine, section 340

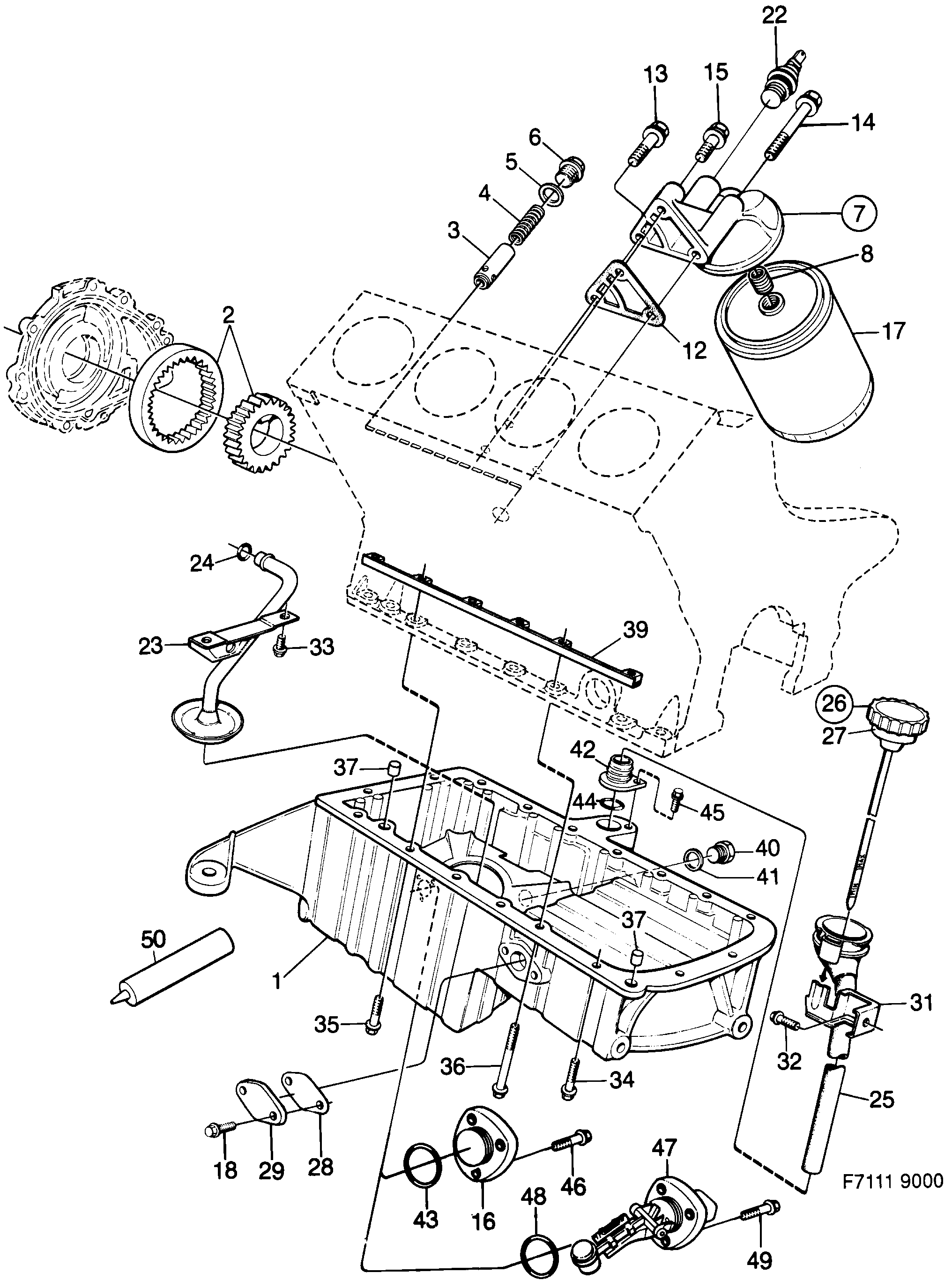

Saab 9000 Oil pump, oil filter, engine diagram

Pos	Article	Part No.
1	Oil pan	30540514 (replaces 7523806)
1	Oil pan	30540514 (replaces 9117029)
2	Pump kit	8817561
3	Piston	7508708
4	Spring	9309998
5	Gasket	9355389
6	Plug	7508955
7	Connector	7560105
8	Junction pipe	8348609
12	Gasket	9308180
12	Gasket	7566433
13	Screw	8125254
14	Screw	8125304
15	Screw	55561609 (replaces 8125221)
16	Cover	7523822
17	Filter	93186554 (replaces 9309576)
18	Screw	8125163
22	Oil pressure sensor	30520357 (replaces 7522402)
23	Oil pipe	9127069
24	O-ring	9146598 (replaces 7972698)
25	Tube	9388794
26	Dipstick	9386541
26	Dipstick	9391467
27	Ring-gland	55557303 (replaces 9361544)
28	Gasket	7566474
29	Flange	7501430
31	Bracket	9388232
31	Bracket	8976516
32	Screw	55562121 (replaces 7967938)
33	Screw	2961357
34	Screw	8125189
35	Screw	8125205
36	Screw	8125262
37	Guide sleeve	8300725
37	Sleeve	7484934
39	Bracket	7501398
40	Plug	7563042
41	Gasket	7522709
42	Nipple	7517782
42	Nipple	9112475
42	Nipple	9114810
43	O-ring	7970361 (replaces 8109670)
43	O-ring	7970361 (replaces 8046625)
44	O-ring	9138009 (replaces 2196772)
45	Screw	7974694 (replaces 8125031)
46	Screw	8125023
47	Sensor	93167188 (replaces 9390154)
49	Screw	7974694
50	Flange sealant	93165267 (replaces 8781841)
	Service kit	8818544
	Service kit	8819864
