Saab 9000 1985-1989 Oil pump, oil filter,

Group 2 Engine, section 310

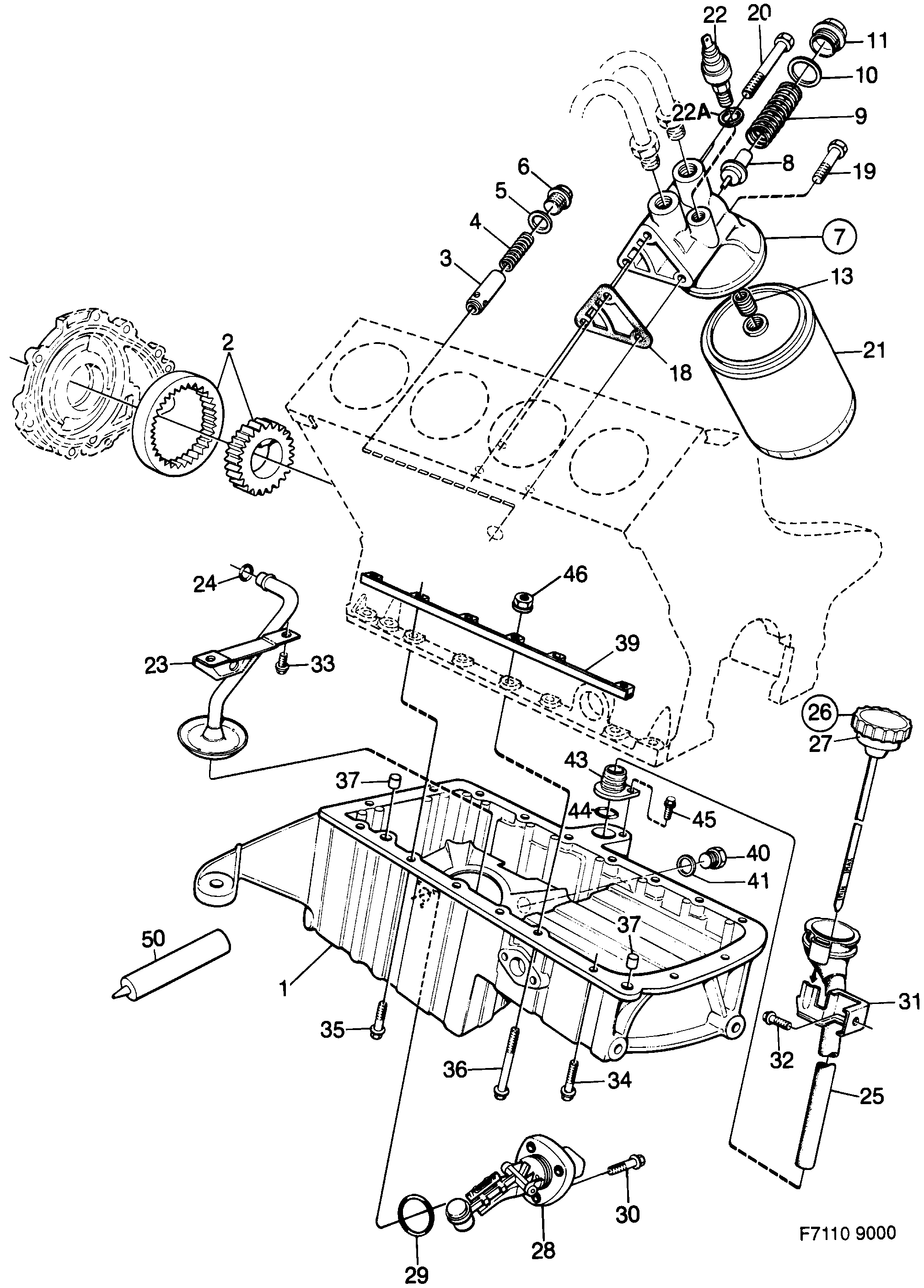

Saab 9000 Oil pump, oil filter, diagram

Pos	Article	Part No.
1	Oil pan	30540514 (replaces 7517188)
1	Oil pan	30540514 (replaces 7523806)
1	Oil pan	30540514 (replaces 9117029)
2	Pump kit	8817561
3	Piston	7508708
4	Spring	9309998
5	Gasket	9355389
6	Plug	7508955
7	Connector	7516784
7	Connector	7560139
8	Thermostat	55557392 (replaces 9301540)
9	Spring	9300591
10	Gasket	30520353 (replaces 8124216)
11	Plug	7520372
13	Junction pipe	8348609
18	Gasket	7566433
19	Screw	8125254
20	Screw	8125304
21	Filter	93186554 (replaces 9309576)
22	Oil pressure sensor	8818528
22	Oil pressure sensor	30520357 (replaces 7522402)
23	Oil pipe	9127069
24	O-ring	9146598 (replaces 7972698)
25	Tube	9388794
26	Dipstick	9386541
26	Dipstick	9391467
27	Ring-gland	55557303 (replaces 9361544)
28	Sensor	93167188 (replaces 9390154)
29	O-ring	7970361 (replaces 8109670)
29	O-ring	7970361 (replaces 8046625)
30	Screw	8125023
31	Bracket	9388232
32	Screw	55562121 (replaces 7967938)
33	Screw	2961357
34	Screw	8125189
35	Screw	8125205
36	Screw	8125262
37	Guide sleeve	8300725
37	Sleeve	7484934
39	Bracket	7501398
39	Bracket	9116625
40	Plug	7563042
41	Gasket	7522709
43	Nipple	7517782
43	Nipple	9112475
43	Nipple	9114810
44	O-ring	9138009 (replaces 2196772)
45	Screw	7974694 (replaces 8125031)
46	Nut	11900429 (replaces 8151326)
50	Flange sealant	93165267 (replaces 8781841)
	Service kit	8817686
	Service kit	8819138
