Saab 9000 1994-1998 Transmission Balance shaft

Group 2 Engine, section 300

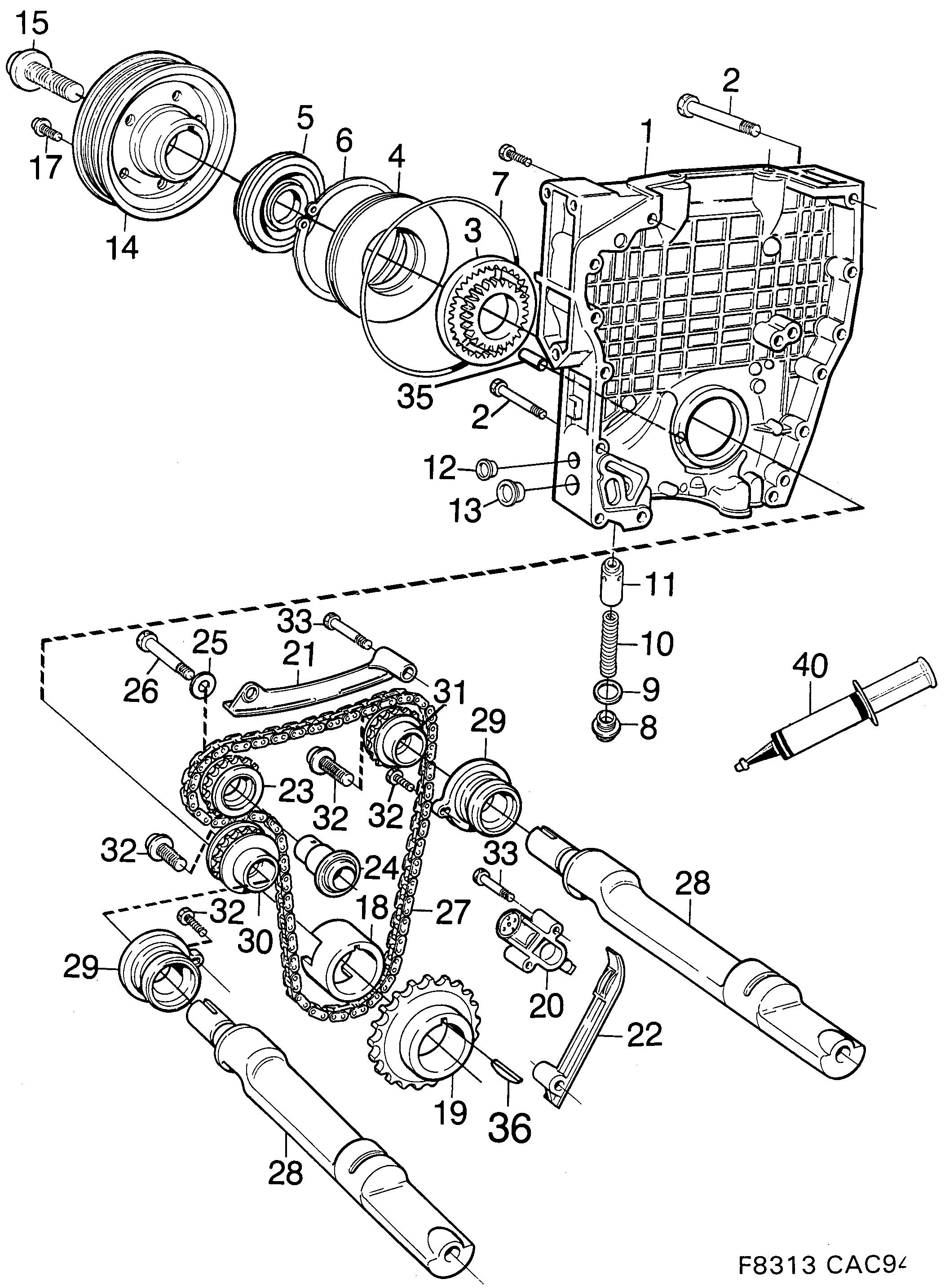

Saab 9000 Transmission Balance shaft diagram

Pos	Article	Part No.
1	Cover	30551852 (replaces 9143652)
2	Screw	92151834 (replaces 7984891)
4	Oil pump housing	9138934
5	Seal	55557231 (replaces 9149964)
5	Seal	55557231 (replaces 9173576)
6	Lock ring	30551798 (replaces 9129719)
7	Seal	9130600
8	Plug	7508955
9	Gasket	9355389
10	Spring	9309998
11	Piston	9167784
12	Plug	8123168
13	Plug	8123192
14	Pulley	9144841
15	Screw	9116443
18	Companion flange	30551799 (replaces 9129727)
19	Chain gear	9138264
20	Chain tensioner	9139130
21	Chain guide	55557272 (replaces 9145368)
22	Chain guide	55557271 (replaces 9145384)
23	Chain gear	9140658
24	Shaft	55557376 (replaces 9145392)
25	Thrust washer	9130535
26	Screw	92153157 (replaces 7984735)
27	Chain	7485105
28	Balance shaft	9174533 (replaces 9132838)
28	Balance shaft	9174533
28	Balance shaft	55557377 (replaces 9185588)
29	Bearing housing	9115288
29	Bearing housing	9172255
30	Chain gear	93167190 (replaces 9142068)
30	Chain gear	55557384 (replaces 9178336)
31	Chain gear	93167191 (replaces 9142035)
31	Chain gear	55557379 (replaces 9178302)
32	Screw	8059982
32	Screw	55562873 (replaces 8082968)
33	Screw	8059628
33	Hexagon screw	92150006 (replaces 7978141)
34	Screw	55560366 (replaces 4087235)
34	Screw	11900354 (replaces 7978109)
35	Roll pin	8117608
40	Flange sealant	90297970
