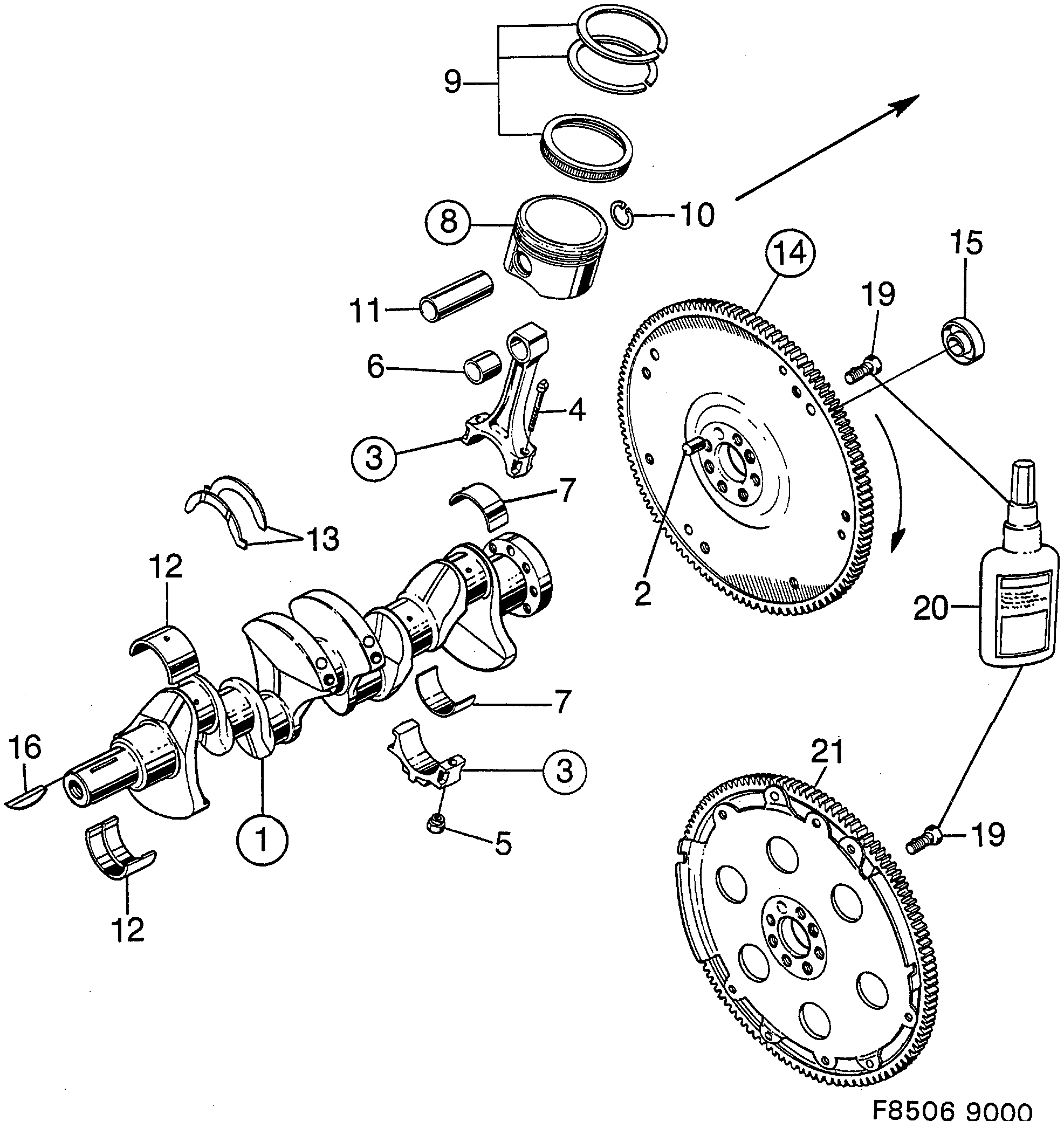

Group 2 Engine, section 280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Crankshaft | 7524978 |
| 1 | Crankshaft | 9321589 |
| Crankshaft | 8787228 | |
| Spacer | 7856172 | |
| Screw | 9116443 | |
| Key | 30520452 (replaces 9116864) | |
| 2 | Locating pin | 8034902 |
| 2 | Pin | 8034928 |
| 3 | Connecting rod | 7501604 |
| 3 | Connecting rod | 4611182 (replaces 7562259) |
| 4 | Screw | 8347106 |
| 4 | Screw | 7521255 |
| 5 | Nut | 7500739 |
| 5 | Nut | 7562275 |
| 6 | Bushing | 8347676 |
| 7 | Con.bearing | 8347650 |
| 7 | Con.bearing | 8355349 |
| 7 | Con.bearing | 8349938 |
| 7 | Con.bearing | 8355356 |
| 7 | Con.bearing | 8349946 |
| 7 | Con.bearing | 8355364 |
| 8 | Piston | 7520984 |
| 8 | Piston | 7520927 |
| 8 | Piston | 7524895 |
| 8 | Piston | 7520992 |
| 8 | Piston | 7520935 |
| 8 | Piston | 7524903 |
| 8 | Piston | 7521008 |
| 8 | Piston | 7520943 |
| 8 | Piston | 7524911 |
| 8 | Piston | 7521016 |
| 8 | Piston | 7520950 |
| 8 | Piston | 7524929 |
| 8 | Piston | 7521024 |
| 8 | Piston | 7520968 |
| 8 | Piston | 7524937 |
| 9 | Piston ring kit | 7520513 |
| 9 | Piston ring kit | 7520521 |
| 9 | Piston ring kit | 7520539 |
| 10 | Lock ring | 8347577 |
| 11 | Piston pin | 8346983 |
| 12 | Main bearing | 8350936 |
| 12 | Main bearing | 8355315 |
| 12 | Main bearing | 8350977 |
| 12 | Main bearing | 8355323 |
| 12 | Main bearing | 8350985 |
| 12 | Main bearing | 8355331 |
| 13 | Thrust washer | 8347270 |
| 14 | Flywheel | 7521610 |
| 14 | Flywheel | 7509102 |
| 15 | Guide ring | 7569809 |
| 19 | Screw | 8859191 |
| 20 | Nut lock | 7496292 |
| 21 | Companion flange | 7561863 |
| 21 | Companion flange | 7856149 |
| 21 | Companion flange | 8856965 |
