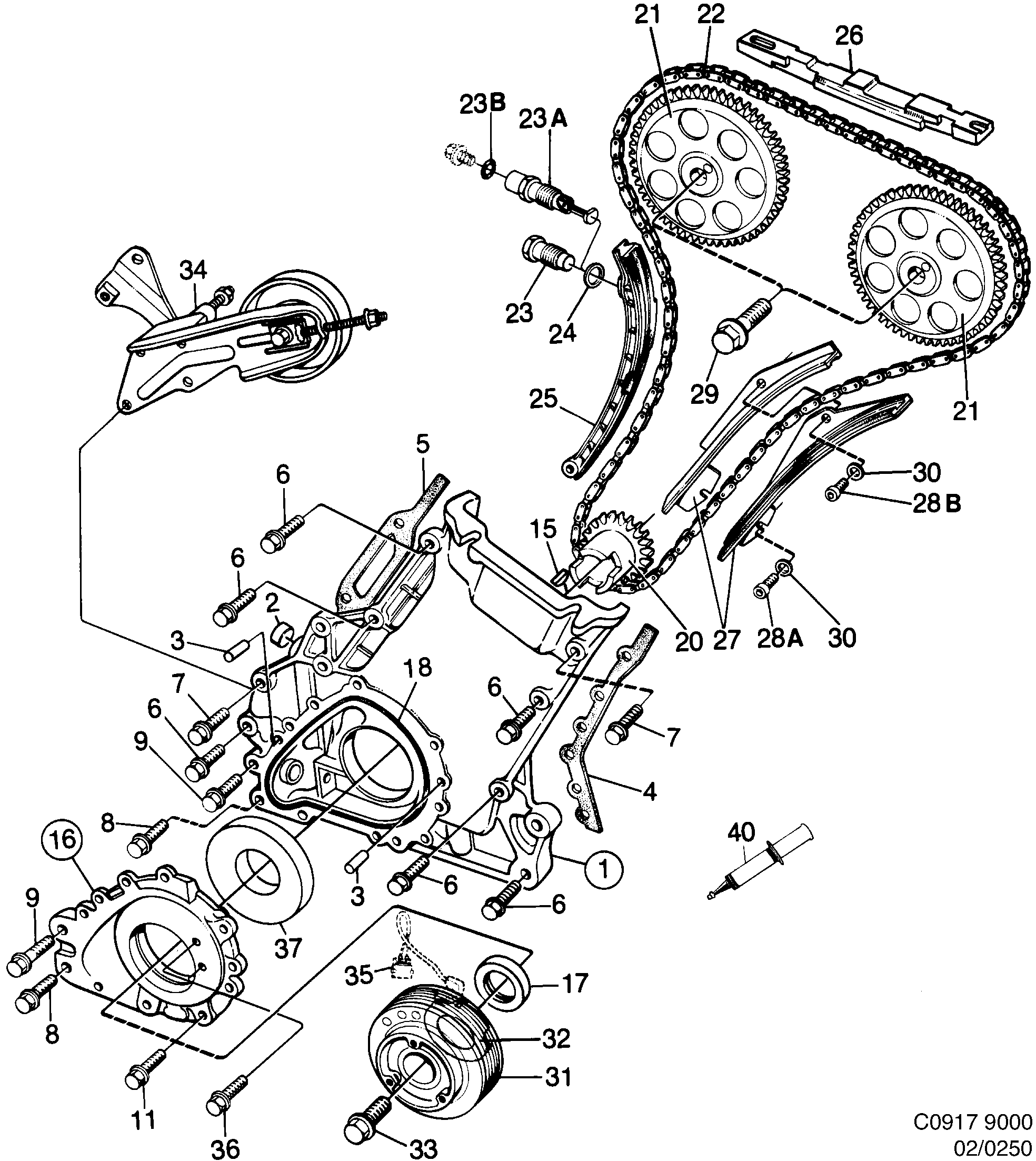

Group 2 Engine, section 250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 7517113 |
| 2 | Plug | 8123176 |
| 3 | Pin | 8034456 |
| 4 | Gasket | 9321795 (replaces 9117847) |
| 5 | Gasket | 9117839 |
| 6 | Screw | 8125213 |
| 7 | Screw | 8125239 |
| 8 | Screw | 8125247 |
| 9 | Screw | 8125262 |
| 11 | Screw | 8125049 |
| 15 | Key | 8347122 |
| 16 | Oil pump housing | 7518848 |
| 16 | Oil pump housing | 7586993 |
| 16 | Oil pump housing | 7487572 |
| 17 | Seal | 55557231 (replaces 9309204) |
| 18 | Seal | 30543193 (replaces 8369829) |
| 20 | Chain gear | 7518640 |
| 21 | Chain gear | 7500127 |
| 22 | Chain | 7500697 |
| 22 | Chain | 9321837 |
| 23 | Chain tensioner | 7585086 |
| 23B | O-ring | 8048670 |
| 24 | Seal | 7508690 |
| 25 | Chain guide | 8858276 (replaces 7500150) |
| 26 | Chain guide | 7505845 |
| 26 | Chain guide | 30518277 (replaces 8859324) |
| 27 | Chain guide | 9133505 |
| 28A | Screw | 8097883 |
| 28A | Screw | 8019929 |
| 28B | Screw | 8019960 |
| 29 | Screw | 9107541 (replaces 3037140) |
| 30 | Washer | 8029951 |
| 31 | Pulley | 7501380 |
| 31 | Pulley | 9321530 (replaces 7568439) |
| 31 | Pulley | 9321530 (replaces 7581762) |
| 31 | Pulley | 9321530 (replaces 7581721) |
| 31 | Pulley | 9321548 |
| 33 | Screw | 8348534 |
| 36 | Screw | 8788150 |
| 40 | Flange sealant | 90297970 |
