Saab 9000 1994-1998 Belt tensioner

Group 2 Engine, section 245

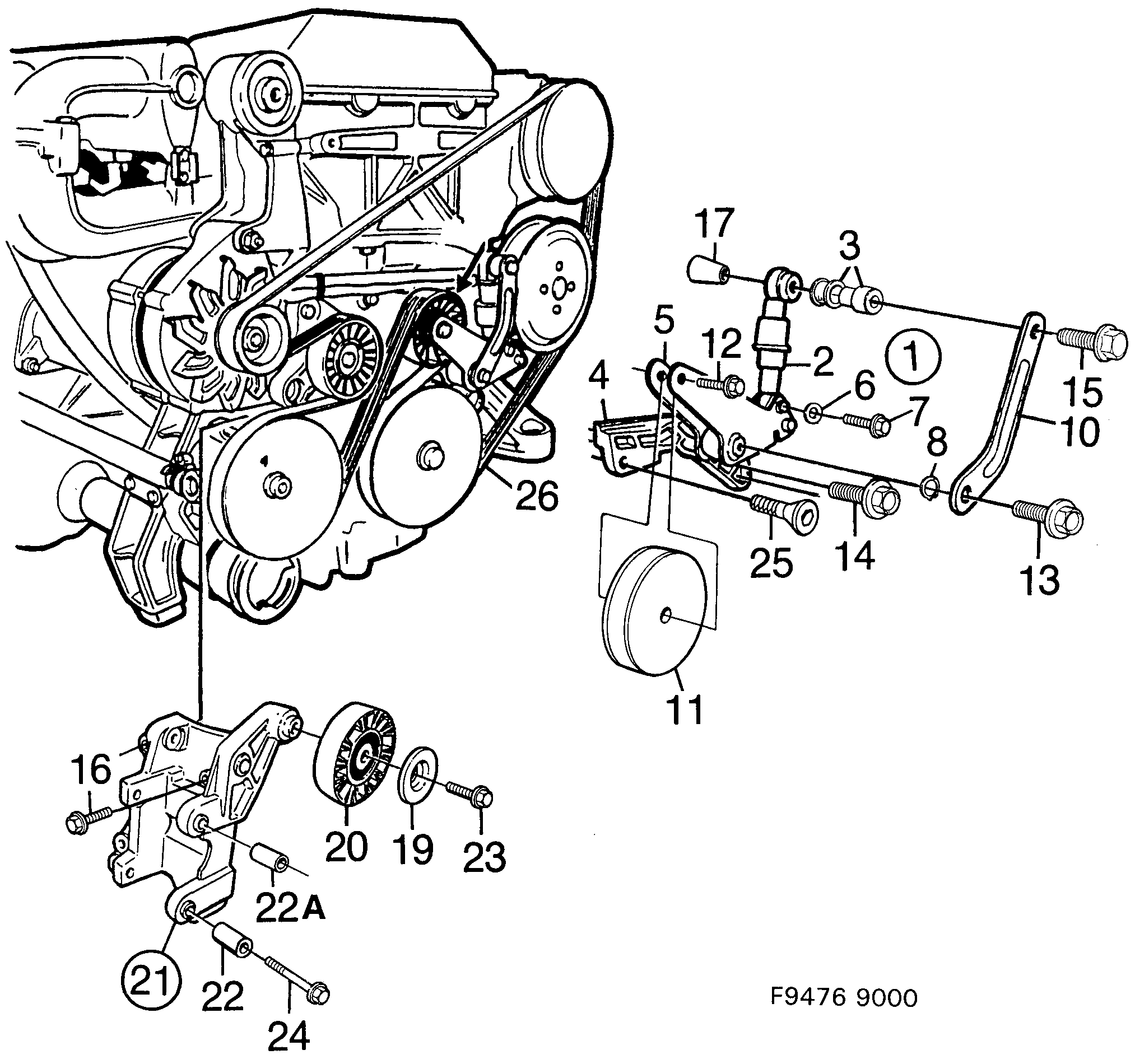

Saab 9000 Belt tensioner diagram

Pos	Article	Part No.
1	Belt tensioner	4901443 (replaces 4029609)
1	Belt tensioner	4901443
2	Absorber	4901419 (replaces 4028064)
2	Absorber	4901419
3	Bushing kit	4901476 (replaces 4029989)
3	Bushing kit	4901476
4	Foundation platform	4358149
5	Tensioning arm	4029799
6	Washer	32000432 (replaces 9166372)
7	Screw	8083941
8	Snap ring	8047748
10	Brace	4027694
11	Tension pulley	4029930
12	Screw	4029864
13	Screw	92150014 (replaces 7978208)
14	Screw	7978232
15	Screw	11900373 (replaces 7982119)
16	Screw	92150019 (replaces 7978257)
17	Sleeve	4876751
19	Washer	4752895
20	Tension pulley	4901625 (replaces 7592017)
20	Tension pulley	4752879
21	Bracket	7593049
22	Bushing	7593072
22A	Bushing	7593080
23	Screw	7978299
25	Screw	90511105 (replaces 8056194)
26	Belt	93185055 (replaces 4029195)
26	Belt	93185055 (replaces 4395448)
26	Belt	93185055
26	Belt	4356895
26	Belt	93185051 (replaces 4356903)
26	Belt	93185051 (replaces 4395455)
26	Belt	93185051 (replaces 4904116)
26	Belt	93185051
