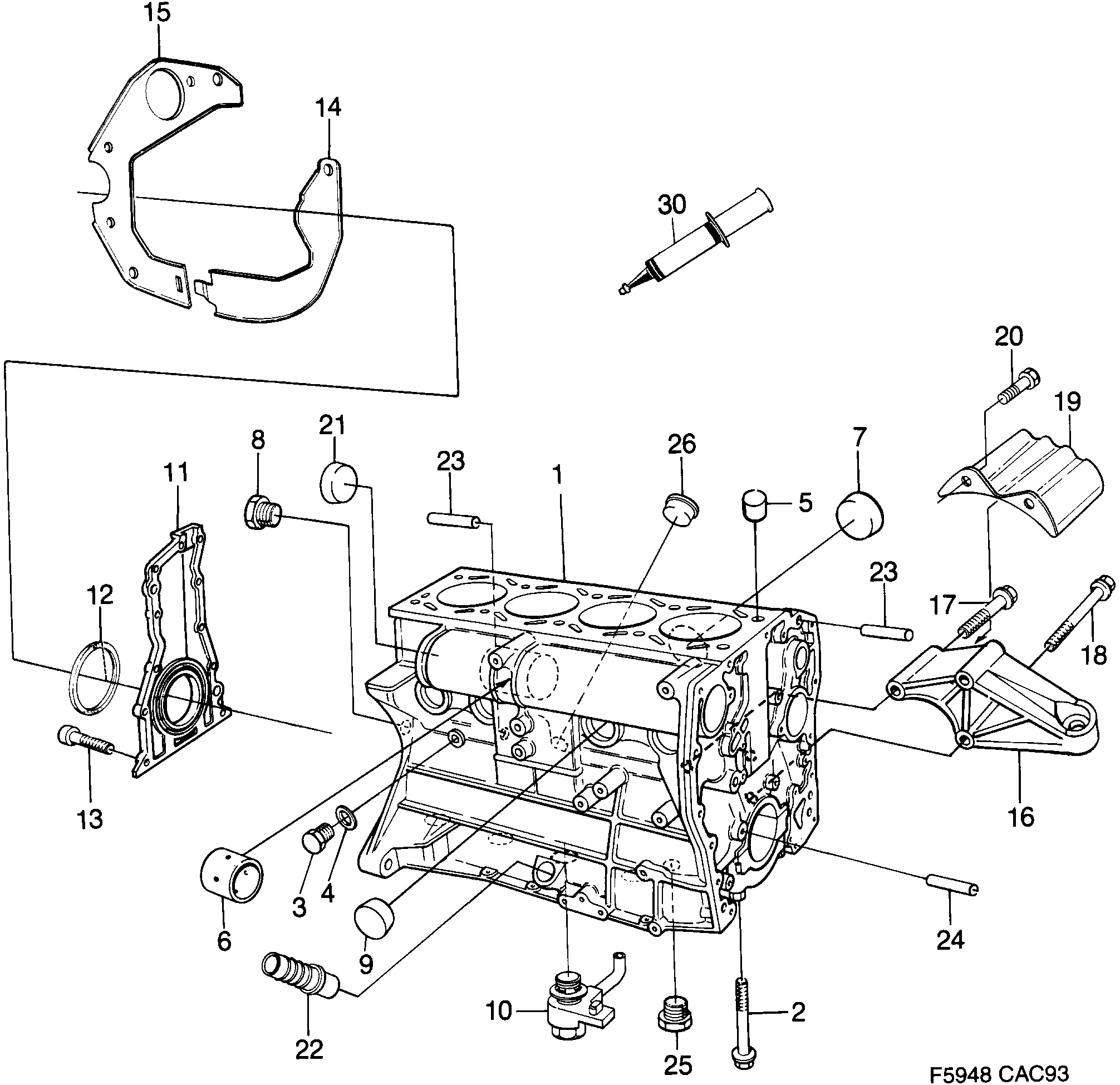

Group 2 Engine, section 230
| Pos | Article | Part No. |
|---|---|---|
| 1 | Compression ring | 9117821 |
| 1 | Cylinder block | 7871965 |
| 1 | Cylinder block | 9134818 |
| 2 | Screw | 9128687 (replaces 8352502) |
| 3 | Plug | 7563042 (replaces 8123721) |
| 4 | Gasket | 92150435 (replaces 8124141) |
| 5 | Guide | 8346470 |
| 6 | Bushing | 7588684 |
| 7 | Sealing washer | 7985120 |
| 8 | Plug | 8348047 |
| 9 | Plug | 3483419 |
| 10 | Piston cooling jet | 9167677 (replaces 9109919) |
| 11 | Plate | 9114372 |
| 12 | Seal | 55557240 (replaces 9350158) |
| 12 | Seal | 55557240 (replaces 8787764) |
| 13 | Screw | 7974694 (replaces 8125031) |
| 14 | Baffle | 7587470 |
| 15 | Baffle | 7483068 |
| 16 | Bracket | 9117557 |
| 17 | Screw | 8125452 |
| 18 | Screw | 8125494 |
| 19 | Heat shield | 9117284 |
| 19 | Heat shield | 30539186 |
| 20 | Screw | 8129876 |
| 21 | Sealing washer | 92151501 (replaces 8123259) |
| 22 | Nipple | 7855950 |
| 23 | Guide | 7585052 |
| 24 | Pin | 8035040 |
| 25 | Plug | 30520417 (replaces 9115049) |
| 26 | Sealing washer | 8123218 |
| 30 | Flange sealant | 90297970 |
