Saab 9000 1994-1998 APC system

Group 2 Engine, section 2280

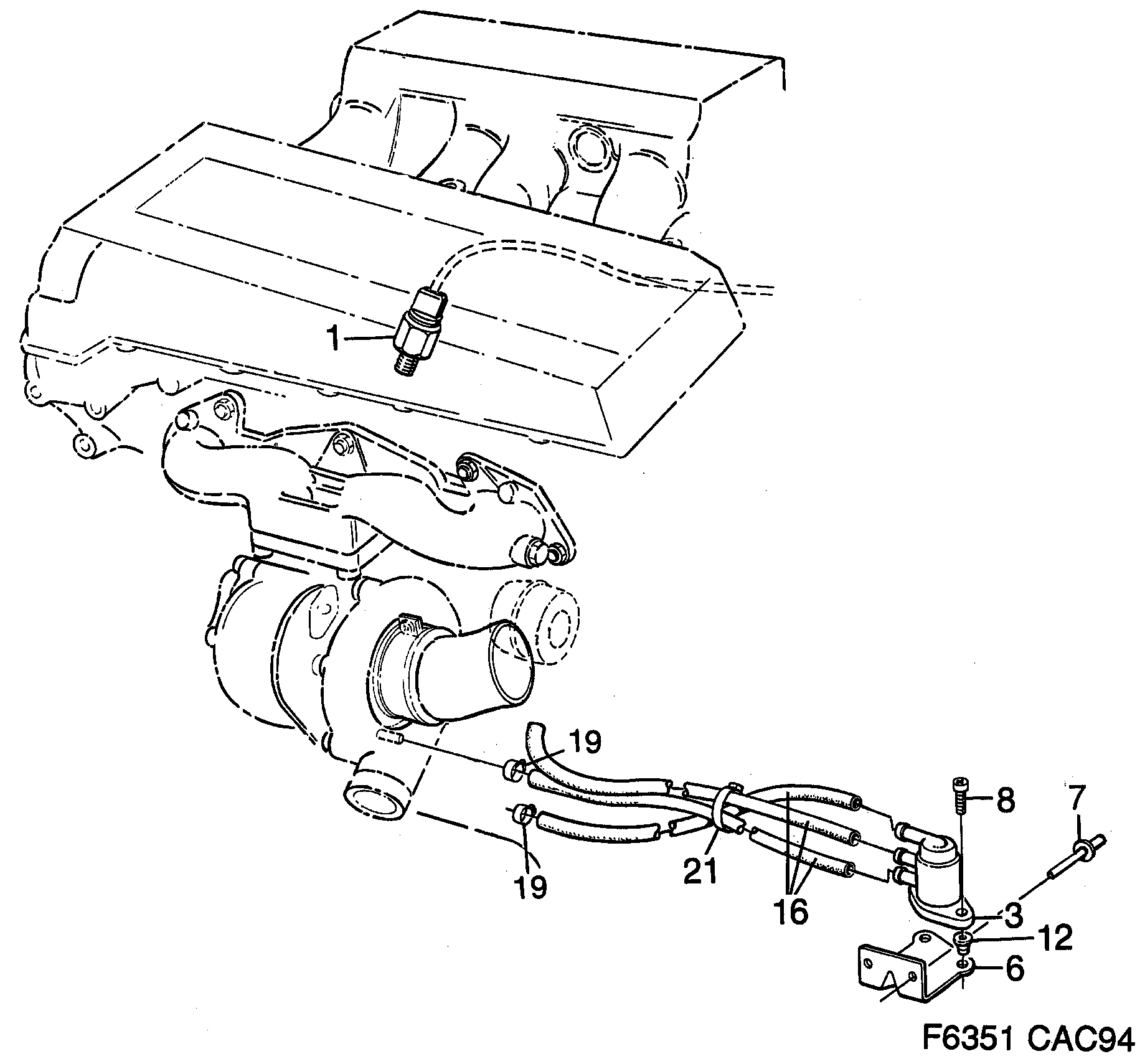

Saab 9000 APC system diagram

Pos	Article	Part No.
1	Knock sensor	7585755
3	Boost pressure control valve	7485576
6	Bracket	8978678
7	Rivet	9849514
7	Screw	7965684 (replaces 7972896)
8	Screw	8059420
12	Expanding nut	7973456
16	Hose	4440608
16	Hose	4022224
19	Hose clamp	7973522
21	Tie strap	7971864
	Vaccum hose	9136243
