Saab 9000 1994-1998 Turbocharger

Group 2 Engine, section 2250

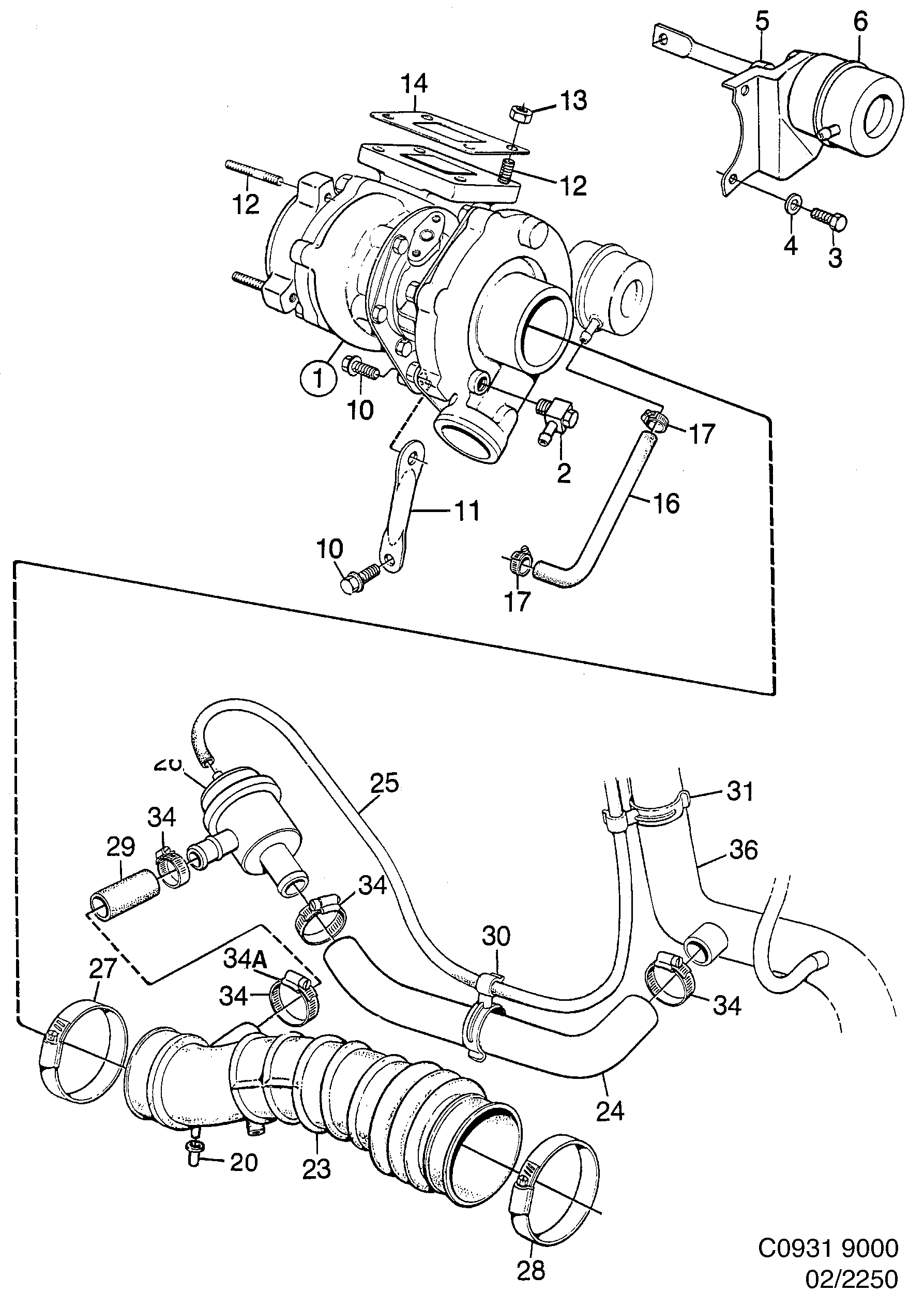

Saab 9000 Turbocharger diagram

Pos	Article	Part No.
1	Turbocharger	30551906 (replaces 9146051)
1	Turbocharger	9149634
2	Nipple	9169517
2	Nipple	8787319
3	Screw	8082935
4	Washer	7915572
5	Nut	9169426
6	Wastegate	9169491
6	Wastegate	9169483
10	Screw	92150012 (replaces 7978182)
11	Brace	30551920 (replaces 9146812)
12	Screw	90490326 (replaces 9357138)
12	Screw	9141730
13	Nut	30520445 (replaces 9116674)
14	Gasket	9113937
16	Hose	9169467 (replaces 9168899)
16	Hose	9169467
17	Hose clamp	7973522
17	Hose clamp	7973605
20	Clip	9253329
20	Sleeve	4509626
23	Hose	4163416
24	Hose	7591936
25	Vaccum hose	9136243
26	Charge air bypass valve	4441895 (replaces 4391157)
27	Hose clamp	92153079 (replaces 7970148)
28	Hose clamp	92153080 (replaces 7970155)
29	Hose	4163432
29	Hose	4441994
30	Clamp	7398407
31	Clamp	7398415
34	Hose clamp	7970098
34A	Hose clamp	7982937
	Sealing kit	9185489 (replaces 8818569)
	Sealing kit	9185489
